14
ELECTRICAL INSTALLATION
IMPORTANT: Switch off the electricity supply at
the mains before proceeding.
• The supply cable MUST be secured either by
routing through conduit, in trunking, or by
embedding in the wall, in accordance with
IEE regulations.
NOTE: Conduit entry can only be from rear.
NOTE: Deviations from the designated entry
points will invalidate product approvals. The
cable entry points are listed on page 8.
• Seal around rear entry cable to prevent water
ingress into the wall.
Installation - ELECTRICAL INSTALLATION
6
check list
SECTIONSECTION
Installation -
FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES
FIT TO THE WALL & CONNECT THE
SHOWER SUPPLIES
Pipe/Electrical access points
• The water inlet has been designed to allow
left or right fitting. Decide the inlet direction
and then turn the inlet either left or right.

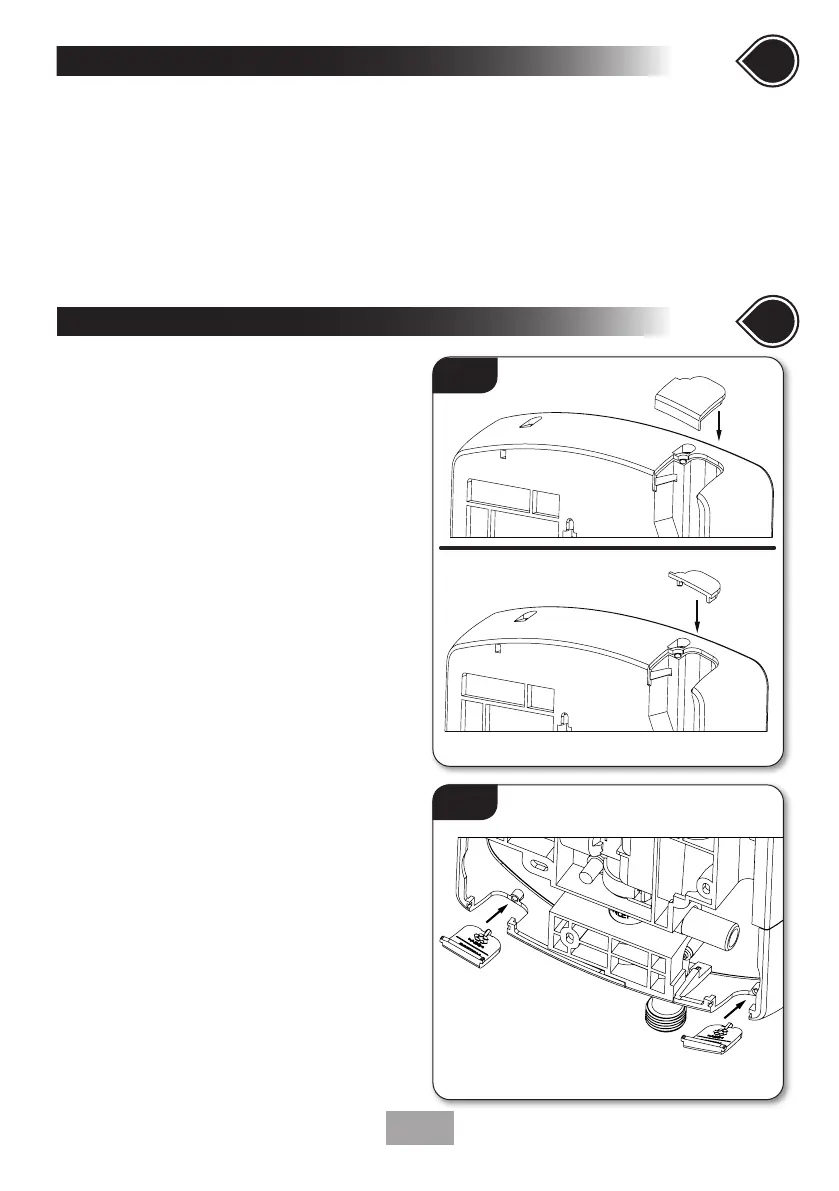

• If top entry has not been chosen, the trim can
be fitted complete. Should either top cable or
top pipe entry have been chosen individually,
the trim has been designed to be separated
and the appropriate trim section can be
inserted (g.9).
• If bottom entry has not been chosen, the
bottom trims should be fitted into the entry
points (g.10).
• Use the backplate as a template, making sure
it is level and mark the fixing holes, top and
one bottom fixing is adequate (fig.11).
• Remove the unit from the wall. Drill and
plug the wall. An appropriate drill bit should
be used. If the wall is plasterboard or a soft
building block, appropriate wall plugs should
be fitted.
• Offer the unit to the wall and secure the
fixing screws into position. DO NOT fully
tighten the screws at this stage, as the fixing
holes are elongated to allow for out of square
adjustment after the plumbing connections
have been completed.
• Connect the mains water supply to the inlet.
DO NOT use excessive force when making
the connection.
7
check list
SECTIONSECTION
Fig.9
Fig.10
