15
• Make sure the backplate is square on the
wall and tighten the retaining screws which
hold it to the wall.
• Turn on the mains water supply and check
for leaks in the pipework connection to the
shower.
NOTE: At this stage no water can flow through
the unit.
IMPORTANT: A suitable sealant should always
be used to seal around the incoming pipework to
prevent water entering the wall.
• Route the cable into the shower unit for
connection to the terminal block (fig.12)
as follows:
Earth cable to terminal marked
Neutral cable to terminal marked N
Live cable to terminal marked L
• Once the cables have been installed the two
trimplates will need to be fitted.
IMPORTANT: When connecting the cable, fully
tighten the terminal block screws and make sure
that no cable insulation is trapped under the
screws. Loose connections can result in cable
overheating.
NOTE: The supply cable earth conductor must
be sleeved. The outer sheath of the supply cable
must be stripped back to the minimum.
Installation -
FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES
7
SECTIONSECTION
WARNING
Check there are no hidden cables or
pipes before drilling holes for wall plugs.
Use great care when using power tools near
water. The use of a residual current device
(RCD) is recommended when
using power tools.

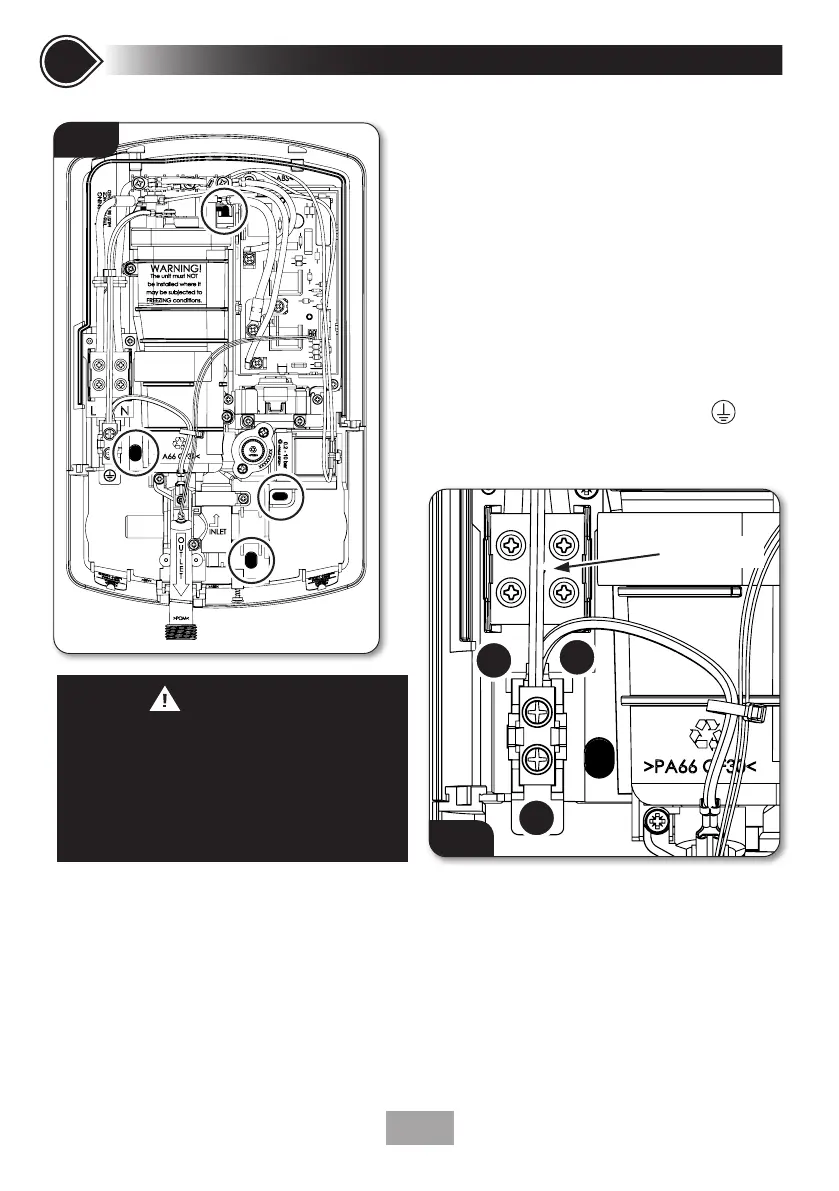

Fig.11
Terminal block
L
Fig.12
N
E
To Next Page
