Installation - FITTING THE COVER
8
check list
SECTIONSECTION
FITTING THE COVER

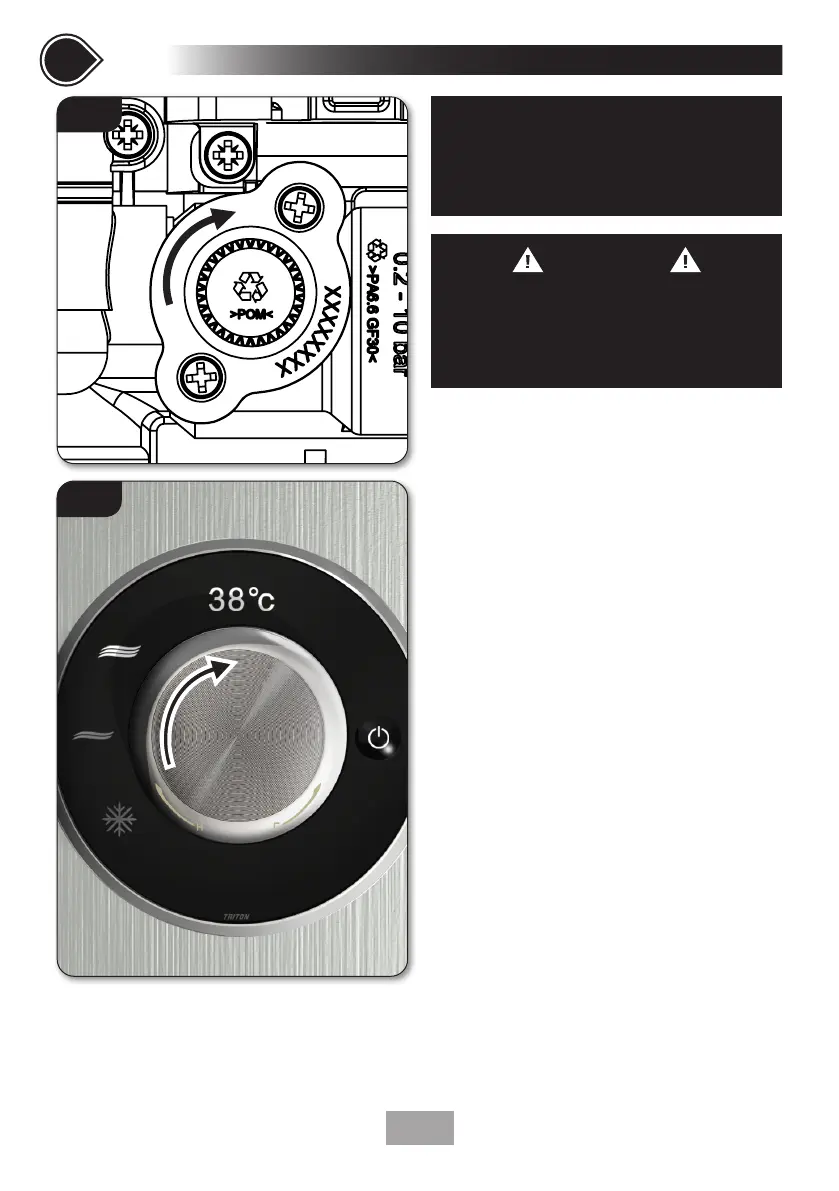

Fitting The Cover - valve & knob positions
• Turn the valve spindle clockwise until it stops
(fig.14).
• Turn the temperature control on the cover
fully clockwise until it stops (fig.15).
• Offer the cover to the unit.
• Carefully locate the cover tags into the guide
pockets on the backplate and make sure the
wires are not trapped.
• Guide the cover into position so that the
control spindle locates correctly - minor
adjustment may be necessary to align the
control and spindle.
• Should any difficulty arise, recheck the points
above.
• While applying slight pressure to the front
cover, secure in position with the three
retaining screws.
• Fit the flexible hose to the shower outlet
making sure the outlet of the hose is directed
to waste. Check the supplied sealing washer
is in place.
• DO NOT attach the showerhead at this
stage.
PLEASE NOTE
Before normal operation of the shower,
it is essential the following commissioning
procedure is completed correctly.
IMPORTANT
DO NOT connect the 10-way
ribbon cable before the
commissioning procedure
has been completed.
Fig.15
Fig.14
