Triton Omnicare User Manual

8
Note: Wires have not been shown for reasons of clarity.
1
2
16
17
3
18
15
4
5
6
12
9
14
10
7
8
11
13

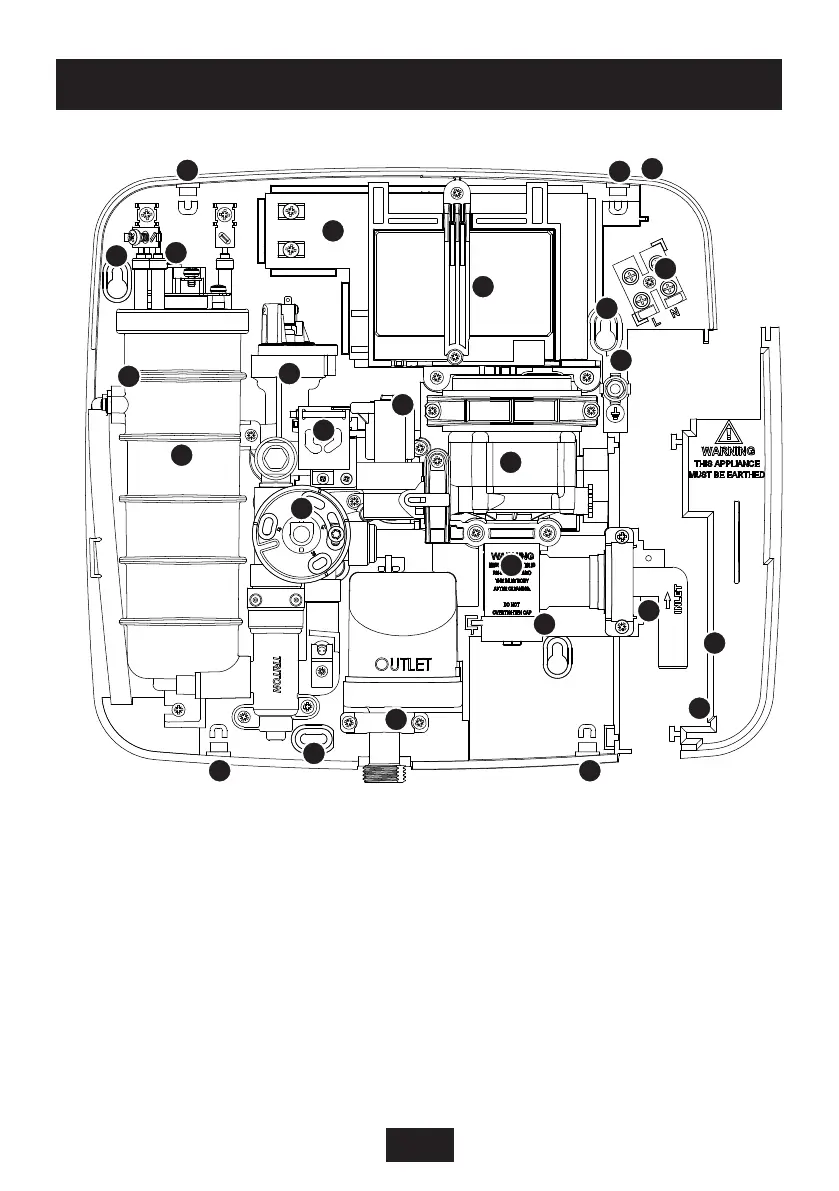

1. Top cable/pipe entry
2. Wall screw fixings
3. Cover screw fixings
4. Thermal safety cut-out
5. Power printed circuit board
6. Can and element assembly
7. Pressure switch assembly
8. Temperature control
9. Terminal block
10. Earth connection
11. Solenoid valve
12. Water inlet
13. Pressure relief device (PRD)
14. Shower outlet
15. Filter
16. Pump power supply
17. Pump
18. Trimplate
19. Bottom cable/pipe entry
20. Triac PCB
Inside the unit
2
2
2
3 3
3
19
MAIN COMPONENTS
20

Triton Omnicare Specifications

General

Type	Electric Shower
Temperature Control	Thermostatic
Water Connection	15mm compression
Start/Stop Button	Yes
Material	Plastic
Finish	White
Installation Type	Wall Mounted
Warranty	2 years
Water Entry Points	Bottom
Cable Entry Points	Bottom Entry
Approvals	WRAS
