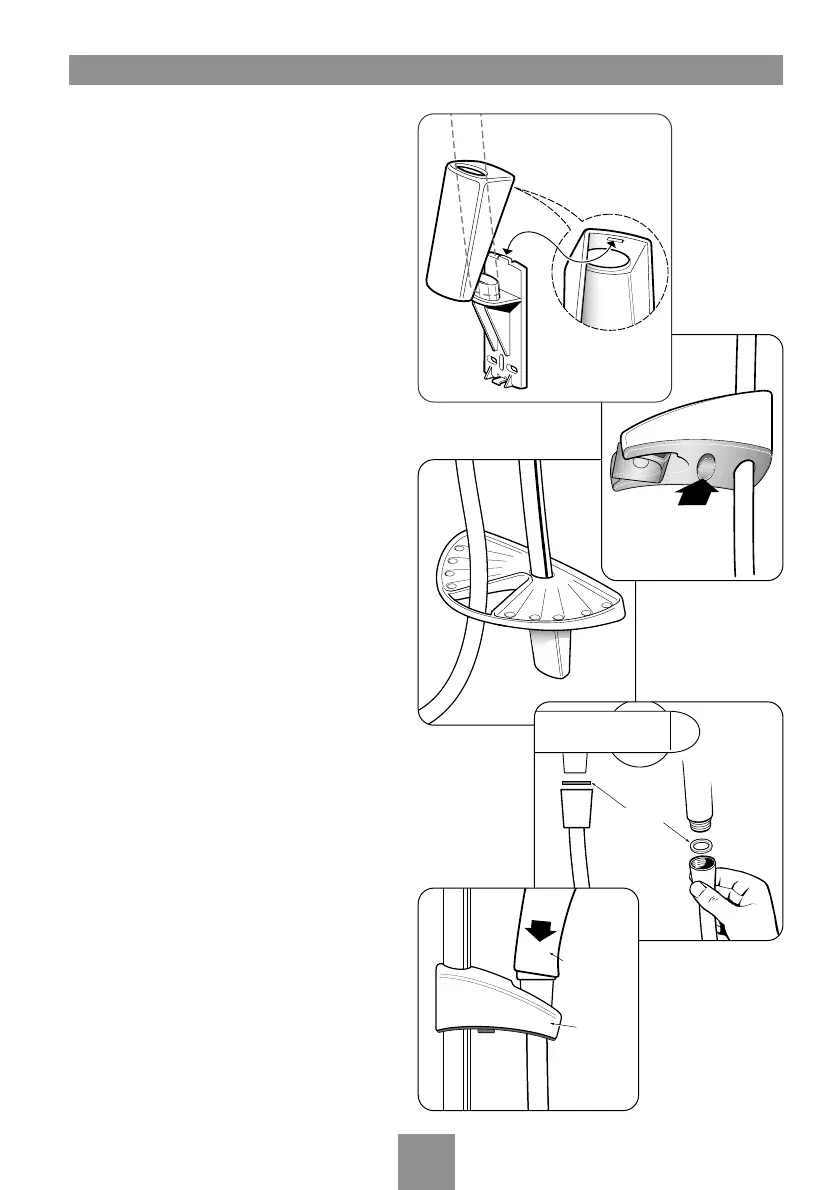

Slide the finishing trims onto the brackets.
Ensure the lug on each rail bracket end
engages into the slot on the fatter end of
each trim before push fitting the thinner ends
in place (fig.21).
To remove a trim, push a small screwdriver or
similar through the slot in the trim end and
carefully pull away from the wall bracket.
Slide the soap dish down the rail so that its
bracket engages on top of the lower finishing
trim.
Adjusting the sprayhead holder
The holder is supplied already attached to the
rail unit. To adjust the height, press the
button underneath the holder to release the
locking mechanism (fig.22). Still pressing
the button, move the holder up or down to
suit user’s requirement.
Hose and sprayhead
Feed the flexible hose through the
appropriate soap dish aperture (fig.23) so
the dish acts as a retaining ring (Water
Regulations).
Screw the flexible hose to the shower outlet
and sprayhead ensuring the supplied washers
are in place at both ends of the flexible hose
(fig.24).
Place the sprayhead into the holder and
check that it fits correctly (fig.25).
NOTE: The holder is slightly tapered and the
sprayhead and hose will only fit from one
direction.
Important: It is the conical end of the
hose which grips into the holder. The
sprayhead will not fit in the holder without
the hose attached.
Washers
Shower
outlet
Sprayhead
Sprayhead
Holder
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
