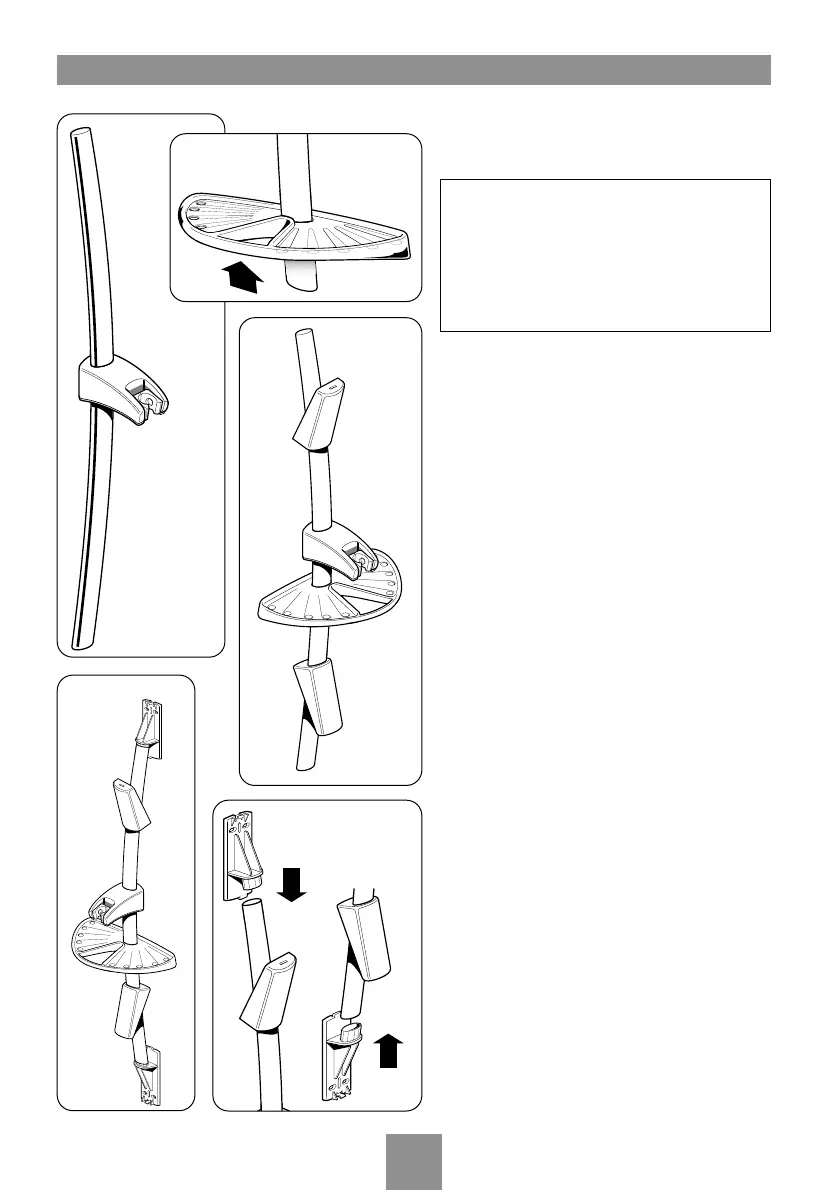

Decide the position for the rail on the wall
within the shower area. Proceed as follows:
The sprayhead holder is supplied already
attached to the riser rail unit and the angle of
the holder dictates the rail top and bottom.
The correct orientation of the rail is when the
sprayhead holder is sloping DOWN (fig.16).
Slide the supplied soap dish onto the riser rail
below the sprayhead holder (fig.17).
Slide the top and bottom finishing trims onto
the riser rail
(fig.18).
Push the two fixing brackets into the ends of
the riser rail (fig.19).
Offer the rail assembly to the wall (fig.20).
Using the brackets as templates, mark two
upper holes and two lower holes. Note there
are four provisions for screws per bracket –
select the two most suitable for your
requirements. Ensure the rail is aligned
vertically.
Drill and plug the wall.
(The wallplugs provided are suitable for most
brick walls – use an appropriate masonry drill,
but if the wall is plasterboard or a soft building
block, use special wallplugs and an appropriate
drill bit obtainable from most hardware stores).
Screw to the wall with the fixing screws
supplied.
WARNING: Check there are no hidden
cables or pipes before drilling holes for
wall plugs. Use great care when using
power tools near water. The use of a
residual current device (RCD) is
recommended.
FITTING THE RISER RAIL ASSEMBLY
(Tyne)
