Maintenance and Adjustment
Fuse Box

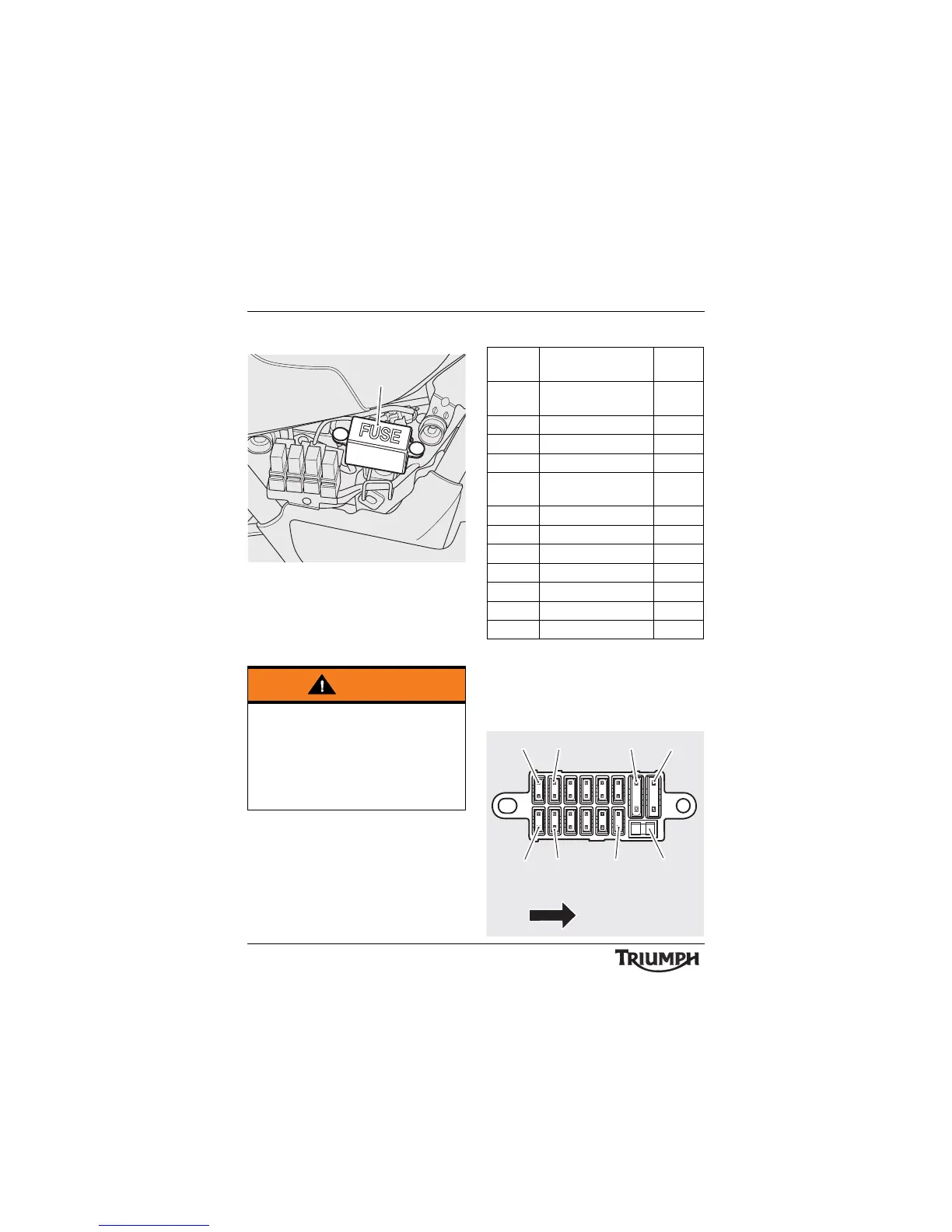

1. F u s e b o x
The fuse box is located behind the right hand
side panel.
To allow access to the fuse box, the right
hand side panel must be removed (see
page 38).
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the following tables to establish which
fuse has blown.
Thunderbird Commander:
Note:
• Numbers shown in the diagram
below correspond to the fuse
numbers in the table above.
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
Position Circuit Protected Rating
(Amps)
1Dip and main
headlight beams
15
2 Heated grips 5
3 Side lights 5
4Cooling fan 15
5 Engine management
system
20
6 Accessory socket 15
7 Alarm, instruments 10
8ABS 20
9 Horn, brake switch 10
10 Ignition, starter circuit 10
11 Ma i n f u s e 30
12 S p a r e 3 0
