Triumph Thunderbird Commander - Headlights

105
Maintenance and Adjustment
Thunderbird LT:
Note:

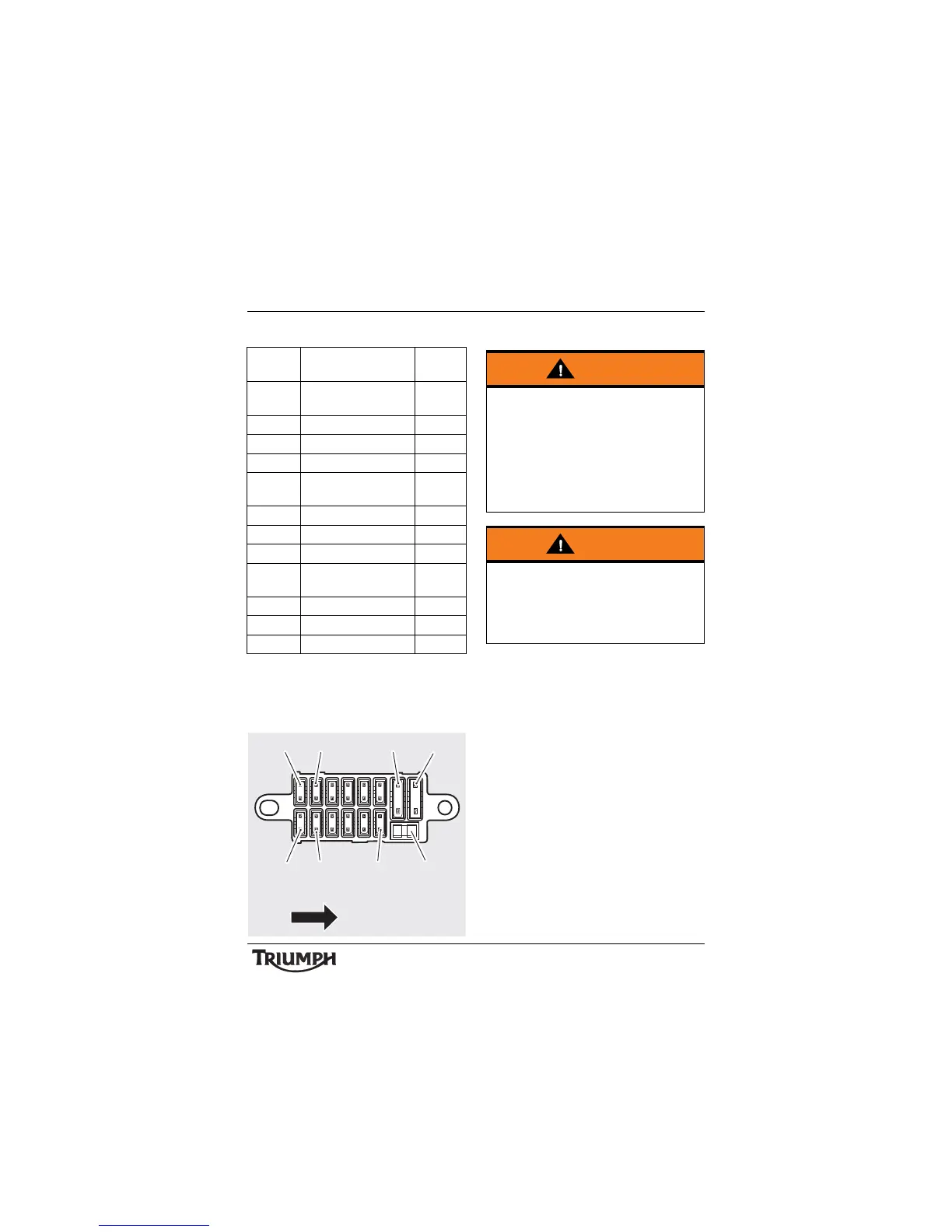

• Numbers shown in the diagram
below correspond to the fuse
numbers in the table above.
Headlights
Position Circuit Protected Rating
(Amps)
1 Dip and main
headlight beams
10
2Fog lights 15
3 Side lights 5
4 Cooling fan 15
5 Engine management
system
20
6 Accessory socket 15
7 Alarm, instruments 10
8ABS 20
9 Heated grips, horn,
brake switch
10
10 Ignition, starter circuit 10
11 M a i n f u s e 3 0
12 S p a r e 3 0
30
30
10 20 10 20 10
Front of
Motorcycle
15
20 15
5
15 10 10
11
1
5
Fuse
Puller
Spare
Spare
Spare
6
Warning
Adjust road speed to suit the visibility and
weather conditions in which the motorcycle
is being operated.
Ensure that the beam is adjusted to
illuminate the road surface sufficiently far
ahead without dazzling oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlamp beam
when the motorcycle is in motion.
Any attempt to adjust a headlamp beam
when the motorcycle is in motion may
result in loss of control and an accident.
