Triumph Thunderbird Commander - Front Fog Lights (if Fitted)

108
Maintenance and Adjustment
Front Fog Lights (if fitted)

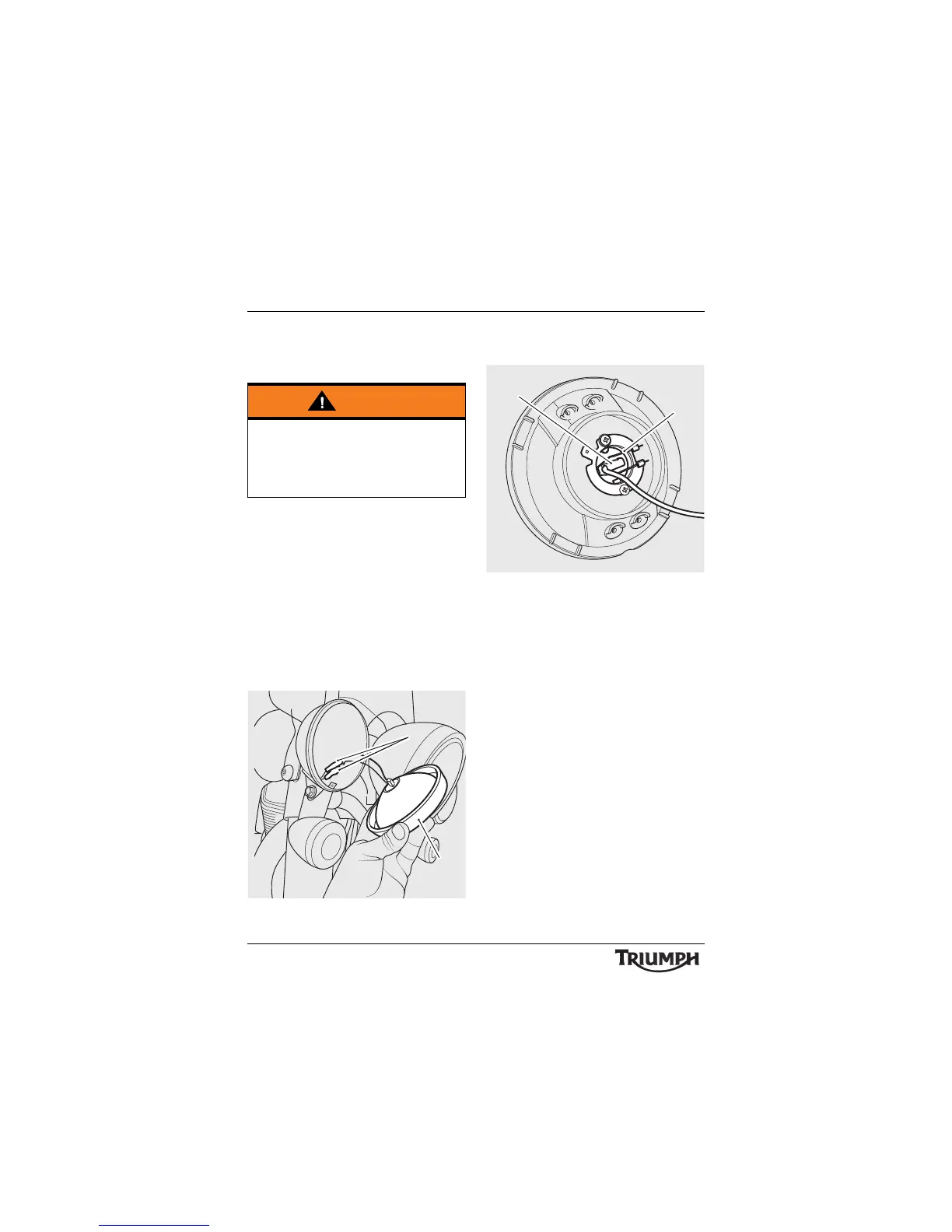

It is necessary to remove the fog light from its
bowl to gain access to the bulb.
Remove the rider’s seat.
Disconnect the battery, negative (black) lead
first.
Release the fixing securing the fog light to
the fog light body.
Detach the fog light from its bowl while
supporting it to prevent the cables from
being over extended.
Disconnect the electrical connectors for the
fog light bulb from the harness and remove
the fog light.
1. Electrical connectors
2. Fog light
Release the wire retainer and remove the
bulb.
1. B u l b
2. Wire retainer
Installation of the bulb is the reverse of the
removal procedure.
Warning
The bulbs become hot during use. Always
allow sufficient time for the bulbs to cool
before handling. Avoid touching the glass
part of the bulb. If the glass is touched or
gets dirty, clean with alcohol before re-use.
cihk_1
2
1
cigv
1
2
