92
Maintenance and Adjustment

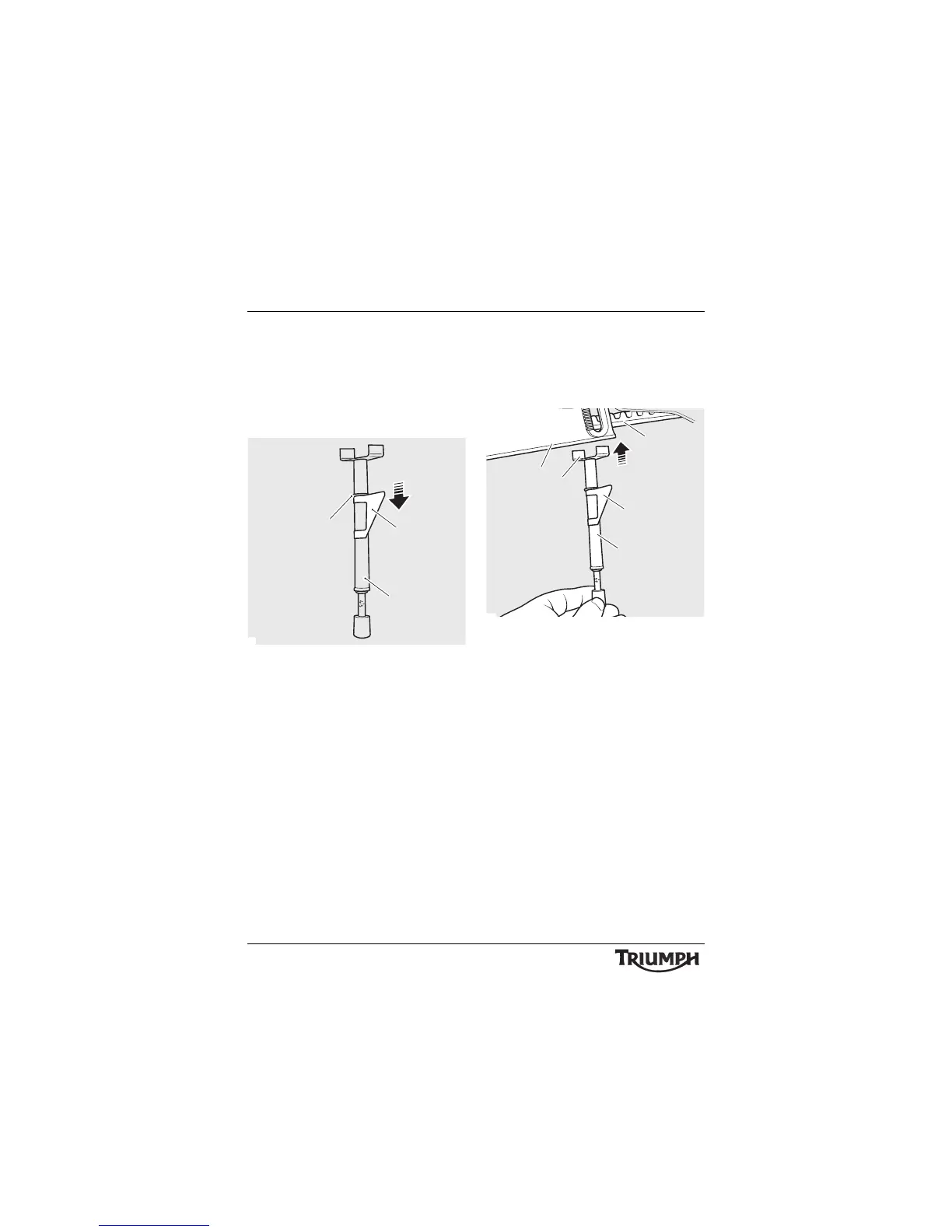

• Push the deflection slider and its O-ring
down the tool, so that it will not touch the
drive belt lower cover when the tool is
positioned to the drive belt. Rotate the
deflection slider so that it will contact the
lower belt cover when the tool is
positioned to the motorcycle.
1. Service tool T3880126
2. Deflection slider
3. O-ring
• Gently position the tool’s belt cradle to
the centre of the lower drive belt run,
ensuring the deflection slider on the tool
body is NOT in contact with the drive
belt cover at this stage.
1. Drive belt
2. Service tool T3880126
3. Belt cradle
4. Drive belt lower cover
5. Deflection slider
