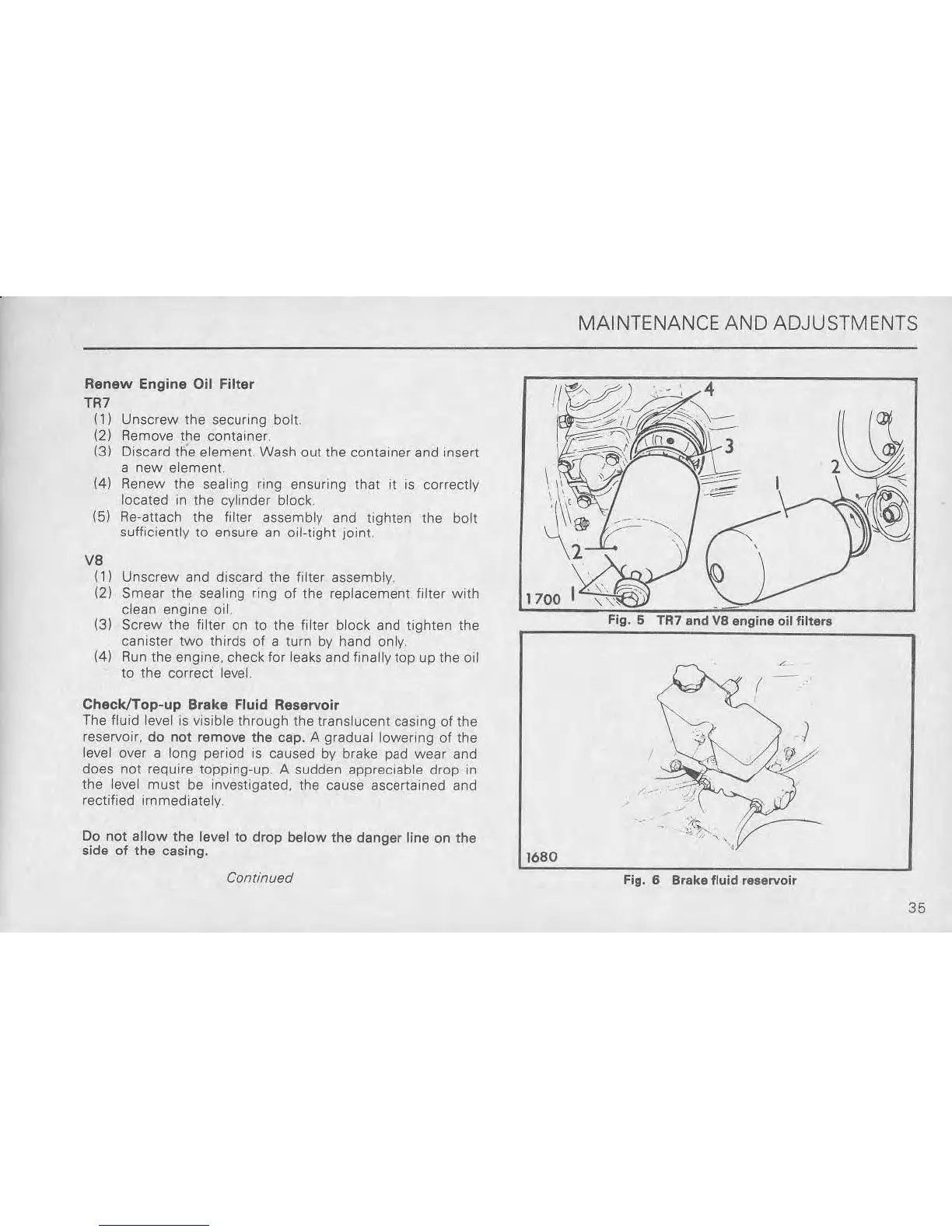

MAINTENANCE AND ADJUSTMENTS
(
TR7 and va engine oil filtert
/..--- ,ir -'~~
~
<;,-
1.;',,"-
< '<
1680
VB
(1) Unscrew and discard the filter assembly.
(2) Smear the sealing ring of the replacement filter with
clean engine oil.
(3) Screw the filter on to the filter block and tighten the
canister two thirds of a turn by hand only,
(4) Run the engine, check for leaks and finally top up the all
to the correct level.
Renew Engine Oil Filter
TRl
{l} Unscrew the securing bolt.
(2l Remove the container,
(3) Discard the element Wash out the container and Insert
a new element.
(4) Renew the sealmg ring ensunng that it is correctly
located in the cylinder block
(5) Re-attach the filter assembly and lighten the bolt
sufficiently to ensure an oiHight JOint
Do not allow the level to drop below the danger line on the
side of the casing,
Check/Top-up Brake Fluid Reservoir
The Iluid level is visible through the translucent casing of the
reservoir, do not remove the cap. A gradual lowering of the
level over a long period is caused
by brake pad wear and
does nOl require topping-up_ A sudden appreciable drop in
the level must be investigated, the cause ascertained and
rectified immediately.
Continued
Fig. 6 Brake fluid reservoir
35
