MAINTENANCE
AND
ADJUSTMENTS
54
1678

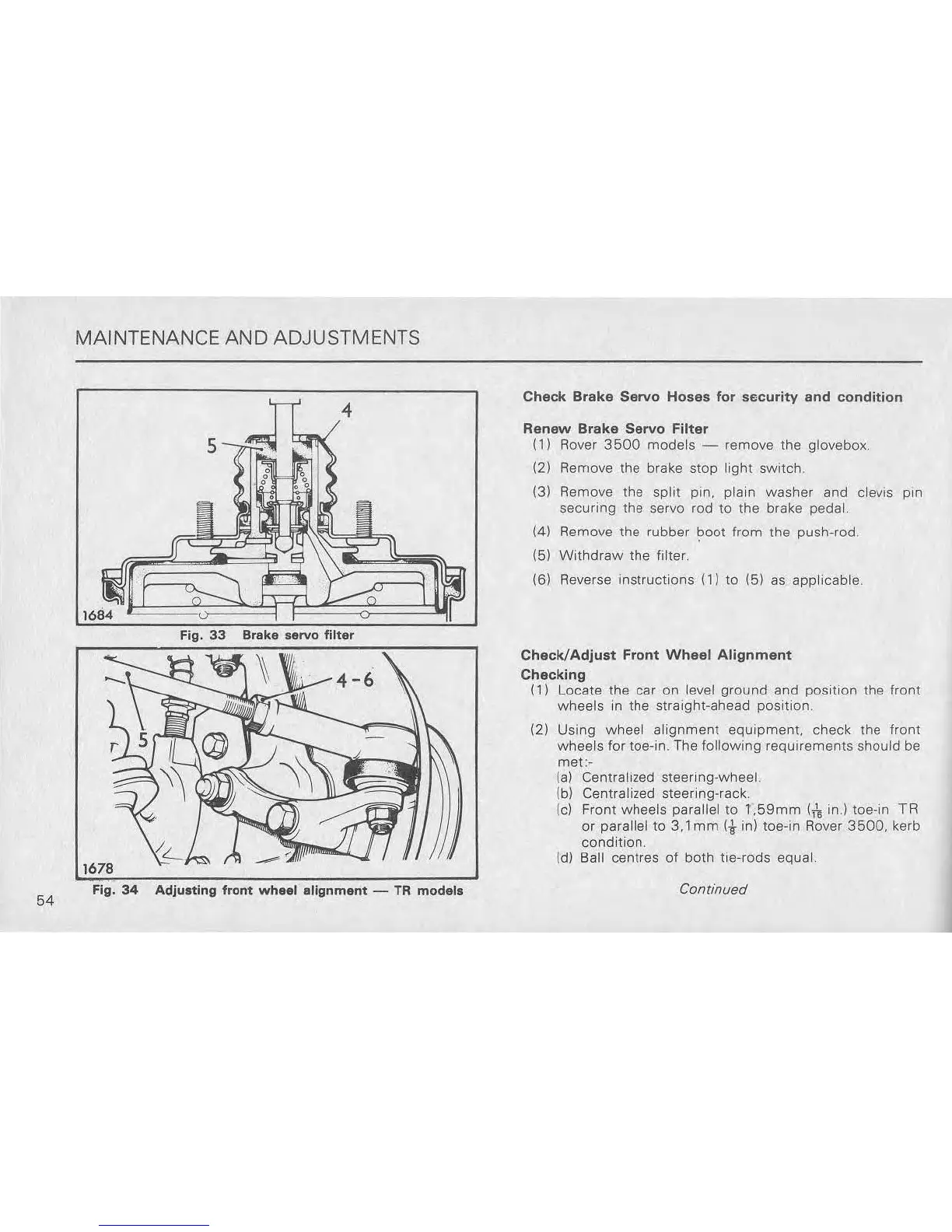

Fig.
34
Fig.
33
Brake servo fittar
:...;.:",;""'---.-----,
Adjusting front wheel
alignment
- TR models
Check Brake Servo Hoses for
SEcurity
and condition
Renew
Brake Servo Filter
(1) Rover
3500
models - remove
the
glovebox.
(2) Remove the brake stop
light
SWitch.
(3) Remove the split Pil', plain
washer
and clevIS pm
securing the servo rod to
the
brake pedal
(4) Remove the rubber
?oot
from the push-rod.
(5)
Withdraw
the
filter.
(6) Reverse instructions (1)
to
(5)
as
applicable.
Check/Adjust
Front
Wheel
Alignment
Checking
(,)
Locale the car
on
level ground
and
position the front
wheels
in the straight-ahead
position
(2) Using wheel
alignment
equipment,
check
the front
wheels
for toe-in. The follOWing
requirements
should
be
met:-
(a) Centralized steering-wheel.
{b} Centralized steering-rack,
(c) Front wheels parallel to
l,59mm
(~in,)
toe-in
TR
or parallel to
3,1mm
(i in) toe-in Rover
3500,
kerb
condition,
(d) Ball centres
of
both tie-rods equal
Continued
To Next Page
