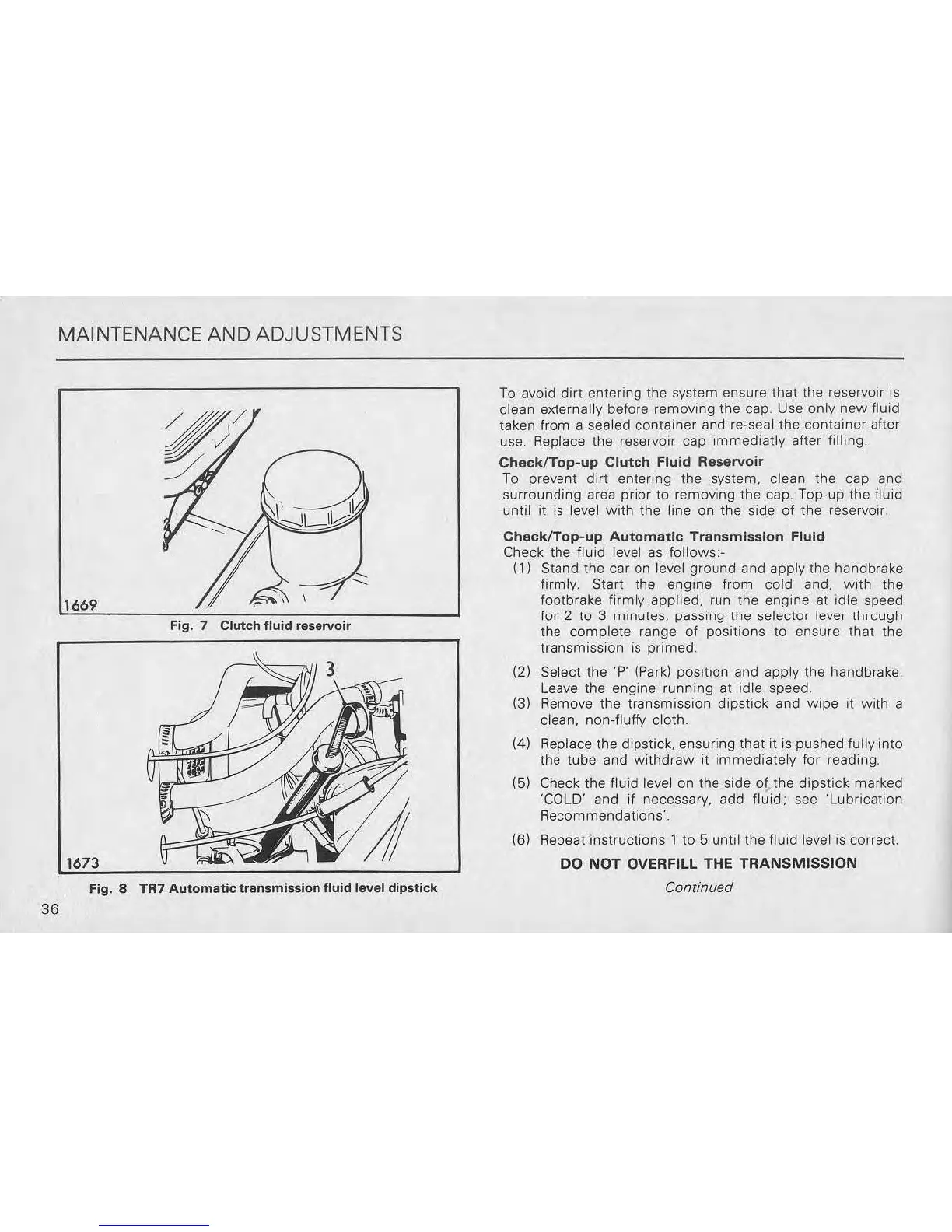

MAINTENANCE AND ADJUSTMENTS
Fig. 7 Clutch fluid reservoir
Fig. 8
TR7
Automatic transmission fluid level dipstick
36
1669
1673
To
avoid
din
entering the system ensure that the reservOir is
clean externally before removing
the
cap. Use only
new
fluid
taken
from
a sealed
container
and fe-seal
the
container after
use, Replace the reservoir cap
immediatly
after filling
Check/Top-up
Clutch Fluid Reservoir
To prevent dirt entering the system, clean
the
cap and
surrounding
area
prior
to removing the cap. Top-up the fluid
until
it
is level
with
the
tine on the side of
the
reservOIr.
Check!Top-up
Automatic
Transmission Fluid
Check
the
fluid level
as
follow$:-
(1) Stand the car on level
ground
and
apply
the handbrake
firmly. Start the engine from cold and,
with
the
footbrake firmly applied. run the
engine
at Idle speed
for 2 to 3 minutes. passing the selector lever
through
the
complete
range of positions to ensure that the
transmission
is
primed.
(2) Select the
'P' (Park)
position
and
apply
the handbrake.
Leave the engine running at Idle speed.
(3) Remove the transmission dipstick
and
wipe
It
with
a
clean.
non~fluffy
cloth.
(4) Replace
the
dipstick, ensuring
that
it
is
pushed fully into
the
tube and
withdraw
it
immediately
for reading.
(5) Check
the
fluid level on
the
side
of
the dipstick marked
'COLO' and
if
necessary. add
fluid:
see 'Lubrication
Recommendations'
(6l
Repeat instructions 1 to 5
until
the fluid level is correct.
DO
NOT
OVERFILL
THE
TRANSMISSION
Continued
To Next Page
