(6) Top up the coolant level as necessary un1l1 I' IS 25mm
(, mch) below the header tank filler neck
(7) Aefn the filler cap
WARNING: When it is necessary to remove the
pressurelfiller cap from 8 hot engine. exercise great car.
by protecting the hands against escaping steam. Slowly
turn the pressure cap anti-clockwise until resistance of
the safety stop is felt. leave the cap in this position until
all pressure is released. Press the cap downwards
against the spring to c1e.r the safety stops. and continue
turning until it can be lifted off.

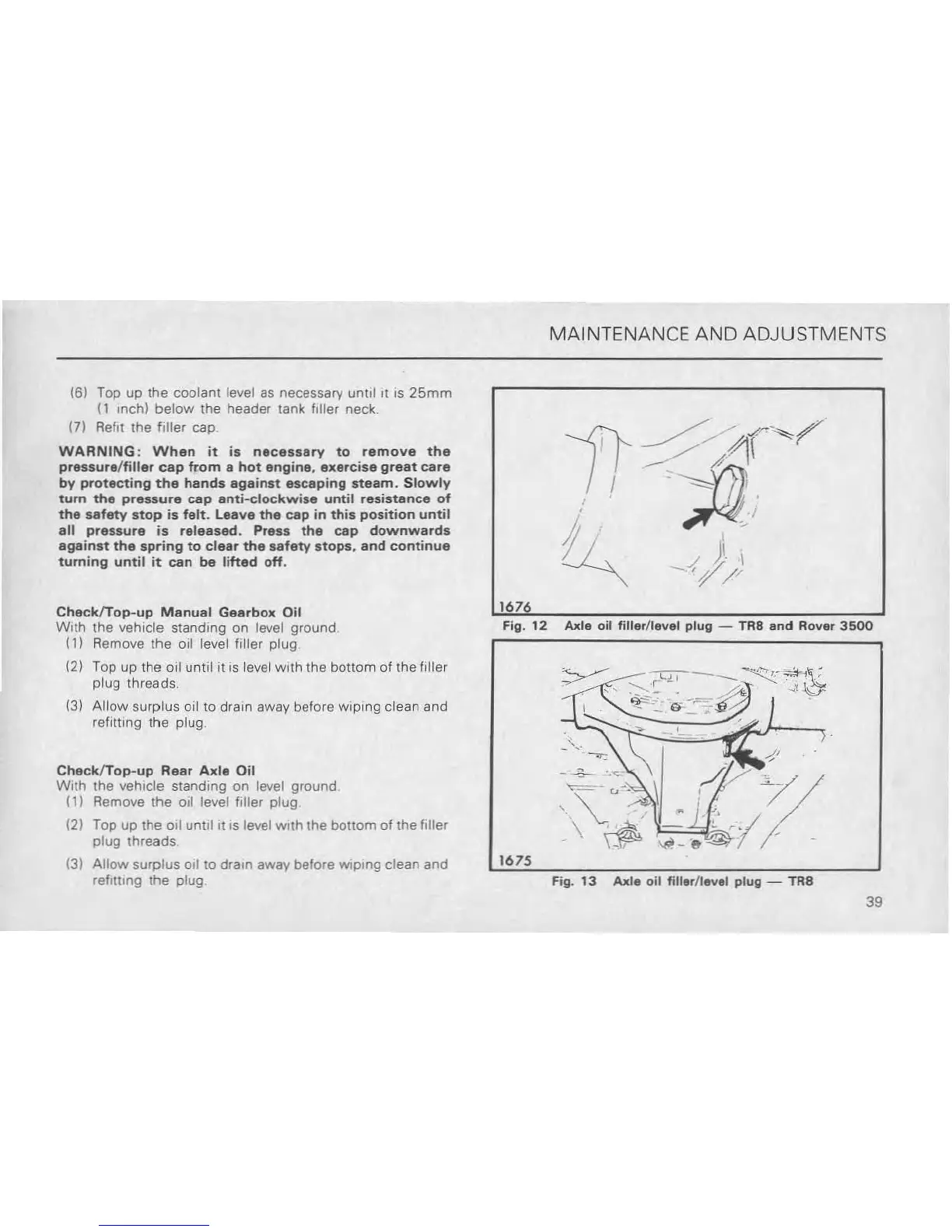

MAINTENANCE AND ADJUSTMENTS
Fig. 13 Axl. oil filler/level plug - TAB
Check/Top-up Manual Gearbox Oil
With the vehicle standmg on level ground
(l) Remove the oil level filler plug
(2) Top up the oil until illS level with the bottom of the filler
plug threads.
(3)
Allow surplus 011 to dram away before wiping clean and
refitting the plug.
Check!Top·up Rear Axle Oil
With the vehicle standing on level ground
(,) Remove the 011 level filler plug
(2) Top
up the oil unttllt IS level with the bonom of the filler
plug threads
(3)
Allow surplus 011 to dram away before WIping clean and
refitting the plug
1676
Fig. 12
1675
Axle od filler/level plug TRB and Rover 3500
39
