MAINTENANCE AND ADJUSTMENTS

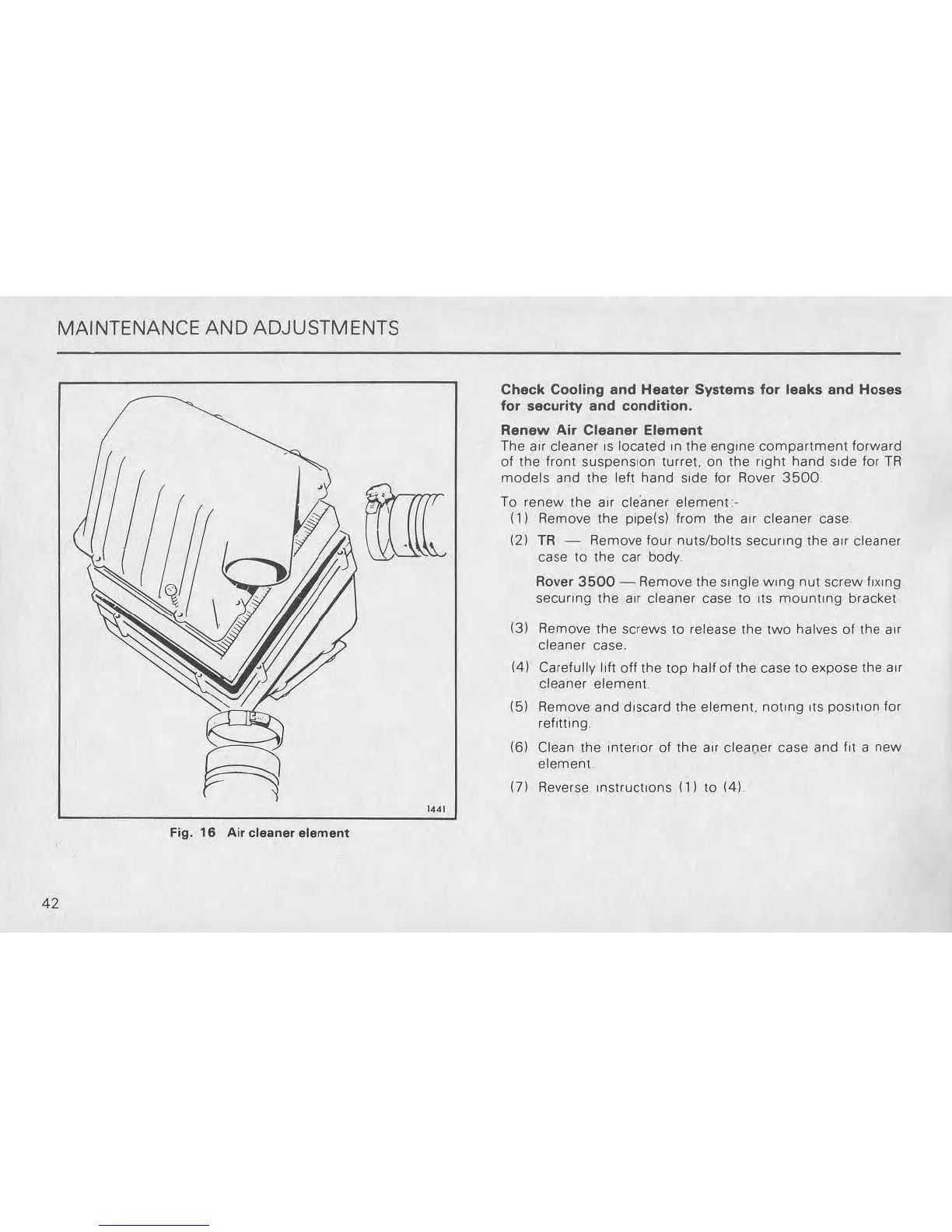

Fig. 16 Air cleaner element
42
Check Cooling and Heater Systems for leaks and Hoses
for security and condition.
Renew Air Cleaner Element
The alf cleaner IS located In the engme compartment forward
of the front suspenSion lurrel, on the right hand side for TR
models and the left hand side for Rover 3500
To renew the air cleaner element:-
(1) Remove the plpe(s) from the air cleaner case
(2) TA - Remove IOUf nuts/bolts securing the alf cleaner
case to
the car body
Rover
3500 - Remove the single wmg nut screw fixing
securing the air cleaner case to lIS mounting bracket
(3) Remove the screws to release the two halves of the air
cleaner case.
(4~ Carefully Ilfl all the top half of the case 10 expose the air
cleaner
element
(S) Remove and discard the element, noting Its POSition for
reflltlng
(6) Clean the Interior of the air cleaner case and 111 a new
elemenl
(7) Reverse instructions (1) to (4)
