MAINTENANCE AND ADJUSTMENTS
1671
/
Check/Adjust Ignition Timing Using Electronic
Equipment
(1) Reier to General Specification Tumng Data for correct
settmgs
(21 Use recognised proprietary eqUIpment to vertfy Ignll10n
IImmg with the engme runmng. connecting the
equipment followmg the manufacturers InstructIons
If adjustment is necessary.
(3) Stop the engine and slacken the dlstnbutor clamp bolt

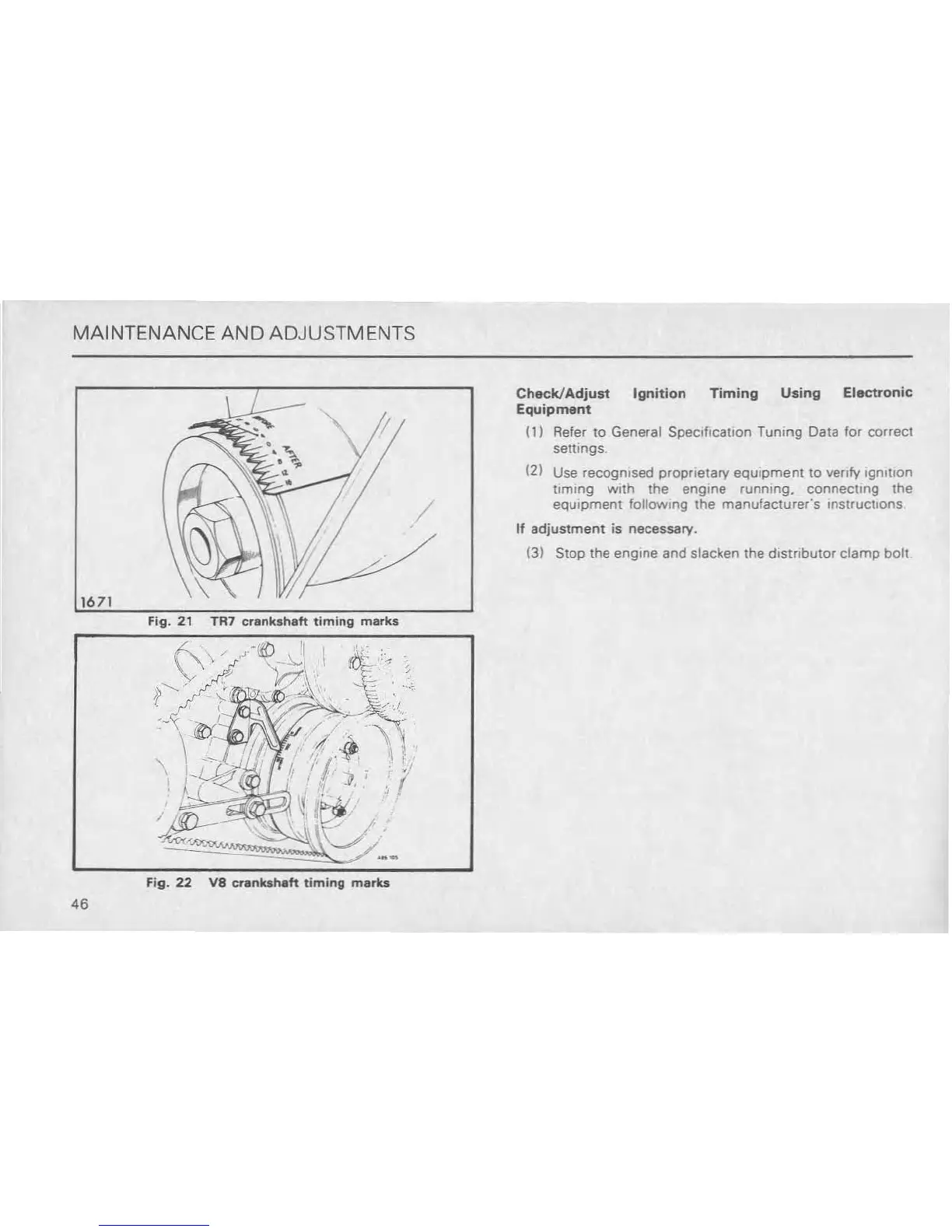

Fig. 21 TR7 crankshaft timing marks
Fig. 22 va crankshllft timing mlll'b
