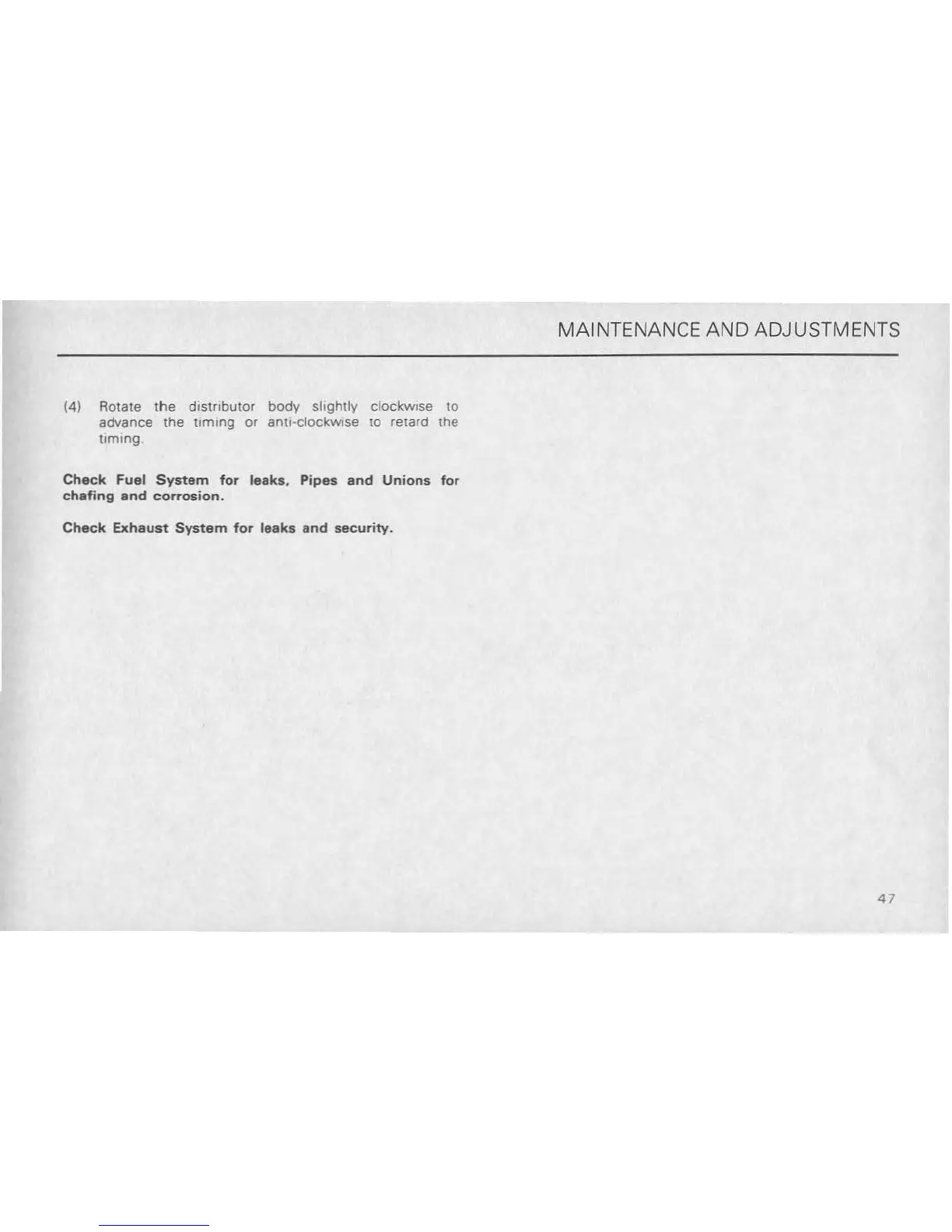

(4) Rotate

the

dIstributor

body Slightly

clockwise

[0

advance the

liming

or

anll·dockwlse

10

retard

the

tlmmg

Check

Fuel

System

for

leaks.

Pipes

and

Unions

for

chafing

and

corrosion.

Check

Exhaust

System

for

leaks

lind

security.

MAINTENANCE AND ADJUSTMENTS

47
