ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

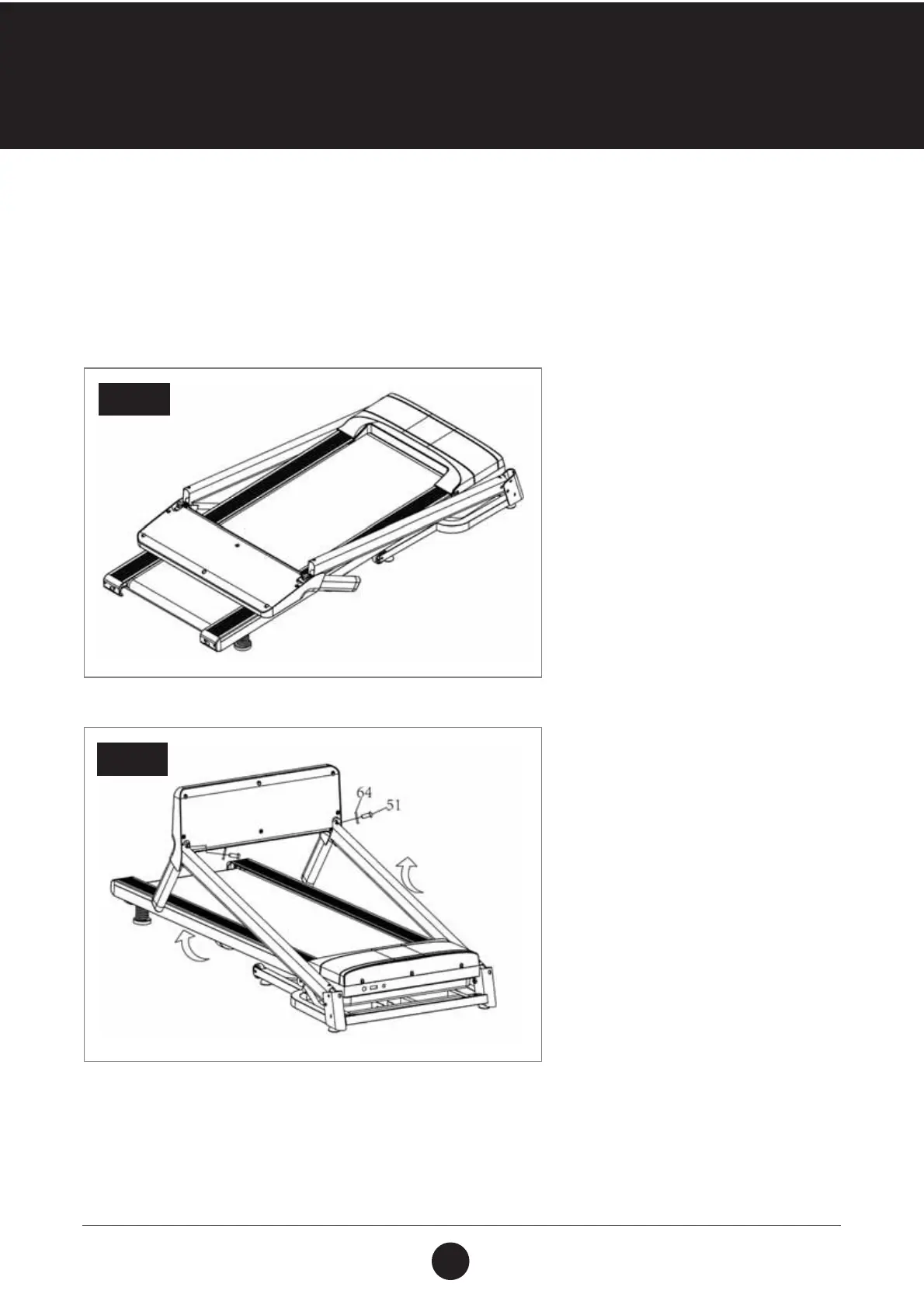

STEP 1
STEP 1:
Open the carton and unpack the
Main Frame (1). Make sure the
surface that you are working on is
level.
STEP 2:
Start by lifting the Left and Right Handle
attached to the Console Frame as shown
in the direction of the arrows. Lock the
Left and Right Handles into place using
the Allen Wrench (5 mm) (12). Lock the
Console to the upright tubes with the
Allen Wrench (5 mm) (12). Tighten the
Bolt (M8 X 16) (51) and Lock Washer (M8)
(64).
Note: Do not touch the wires inside the
tube BUT look and see if the wires are
connected. Hold the uprights with one
hand for support to avoid possible injury.
STEP 2
