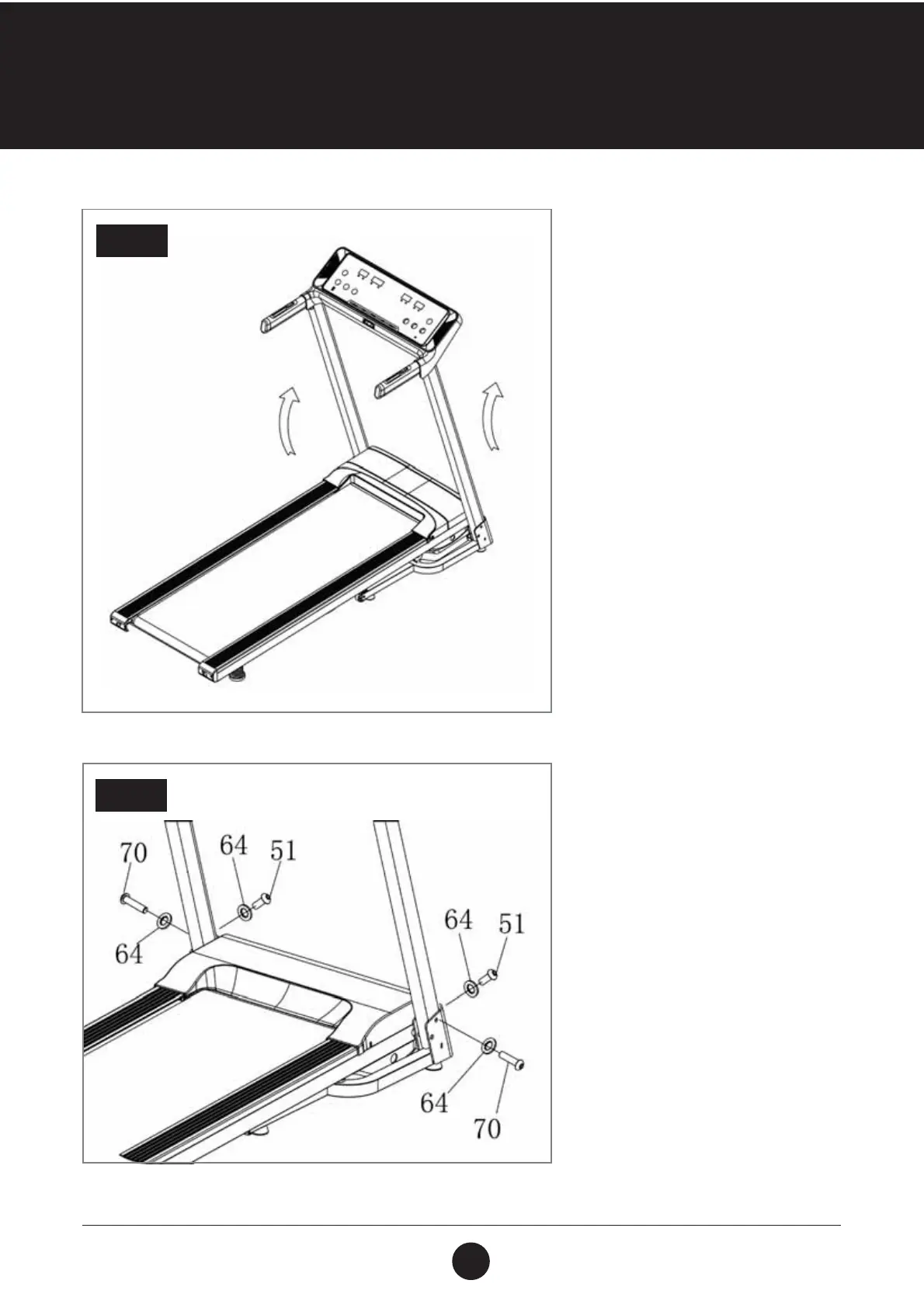

ASSEMBLY STEPS
STEP 3:
Push up the Console, Left Upright
Tube (3) and Right Upright Tube (4)
as shown in the direction of the
arrows.
Note: Hold the uprights with one
hand for support and to avoid
possible injury.
STEP 4:
Using the Allen Wrench (5 mm) (12)
lock the Right Upright Tube (4) and
Left Upright Tube (3) onto the Main
Frame (1) using 2 Bolts (
Ø8 X 45) (70)
and 2 Lock Washer (
Ø8) (64).
Using the Allen wrench (5 mm) (12)
lock the Right Upright Tube (4) and
Left Upright Tube (3) onto the Main
Frame (1) using 2 Bolt (
Ø8 X 16) (51)
and 2 Lock Washer (
Ø8) (64).
Note: Hold the uprights with one
hand for support and to avoid possible
injury.
STEP 3
STEP 4
