TrolMaster Aqua-X NFS-1 User Manual

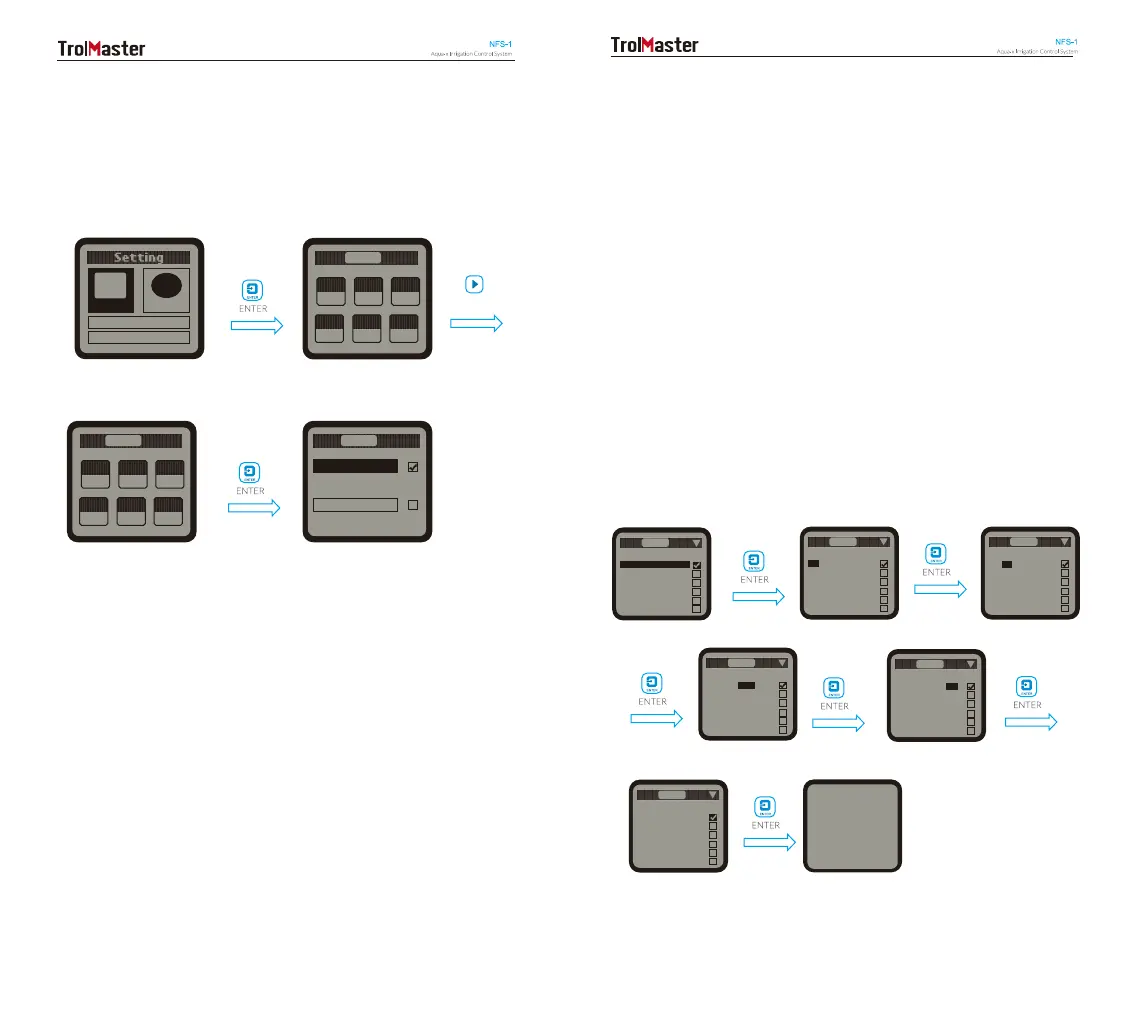

When the Control Board is selected, press ENTER button and the 1st
output will be highlighted and blinking. Press LEFT, RIGHT, UP or
DOWN button to select the output such as 110V A1. Press ENTER
button to confirm and enter the SETTING page of that output.
110V
Board Board
24V
Alarm Setting
System Setting
Board
110 V
A
110 V
A1
110 V
A2
110 V
A3
110 V
A4
110 V
A5
110 V
A6
Board
110 V
B
110 V
B1
110 V
B2
110 V
B3
110 V
B4
110 V
B5
110 V
B6
110 V
A1
RIGHT
On the SETTING page of selected output such as 110V A1, press
ENTER button and the tick icon on the “By schedule” will be highlighted
and blinking. You can also press DOWN button to select “By recycle”.
Press ENTER button to confirm and save the setting.
a. By schedule:
Once the “By schedule” setting is selected, user can press ENTER button
to activate the setting for the 1 line of total 12 lines of schedules. The
HOUR of “On at” time will be highlighted and blinking, which means that
it’s ready for change. User can press UP or DOWN button to change the
HOUR. Press ENTER button and the MINUTE of “On at” will be highlighted
and blinking, user can press UP or DOWN button to change the minute.
Press ENTER button and the MINUTE of “Time” will be highlighted and
blinking, user can press UP or DOWN button to change the minute.
Press ENTER button and the SECOND will be highlighted and blinking,
user can press UP or DOWN button to change the second. Press ENTER
button and the tick symbol will be highlighted and blinking. Finally, press
ENTER button to confirm and save the changes and the LCD screen will
display “Setting saved”.
Similarly, user can change the “On at” & “Time” for other schedules (up to
12 lines) as above processes.
SETTING Page 110V Control Board A
110V Control Board B
110V A1 Setting Page
By schedule
by recycle
On at Time
110 V
A1
08:00 01m:10s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
On at Time
110 V
A1
08:00 01m:10s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
On at Time
110 V
A1
08:00 01m:10s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
On at Time
110 V
A1
08:00 01m:1 0 s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
On at Time
110 V
A1
08:00 01m:10s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
On at Time
110 V
A1
08:00 01m:10s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
00:00 00m:00s
Setting saved
16 17

TrolMaster Aqua-X NFS-1 Specifications

Control Boards

OA6-24 Control Board	Max. 5pcs per set
OA6-110 Control Board	Max. 5pcs per set
DSP-1 Program Device Station	Max. 5pcs per set

Sensors

AMP-2 Sensor Board	Max. 1pc per set
PCT-1 or PCT-2 EC/Temp Sensor	Max. 1pc per set
PPH-1 or PPH-2 pH Sensor	Max. 1pc per set
WD-1 Water Detector	Max. 30pcs per set

Alarm Setpoints

pH Alarm Setpoint Range	0~14
EC Alarm Setpoint Range	0~5
Temp Alarm Setpoint Range	32°- 122°F
pH Alarm Default Value	5~7
EC Alarm Default Value	1~2.5
Temp Alarm Default Value	63°- 70°F

Connectivity

Max Distance to Device to be connected	1000 meters
Control Board Outputs	24V Control Board (6 outputs each), 110V Control Board (6 outputs each), Program Device Station (1 output each), up to 30 outputs per set
