Trotec Speedy 100R User Manual
4
of 1
of 1 rating
68 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
BA 8010_3.0_EN (10
/2016)
16
/
68

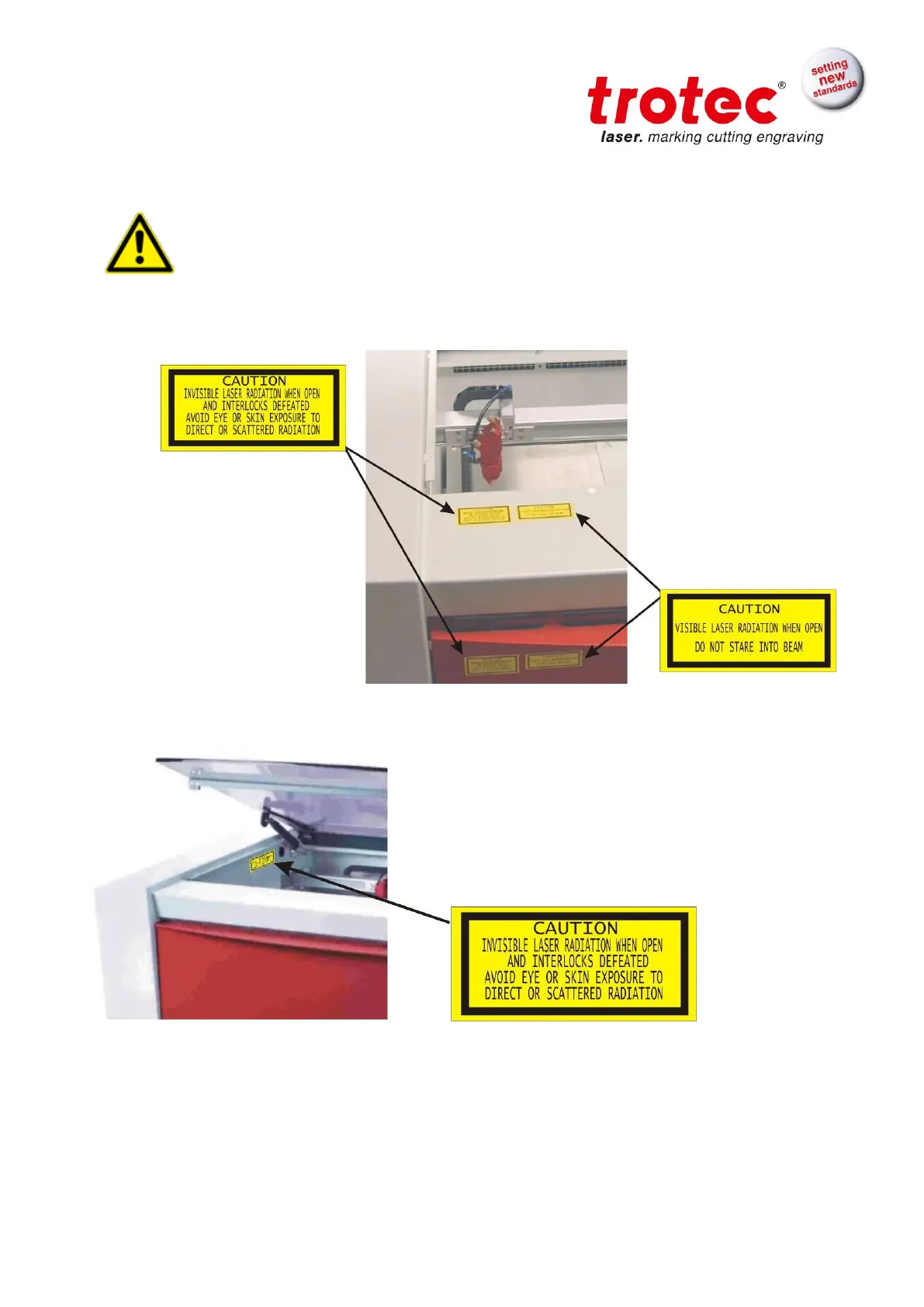

2.4 Warning
and Information Lab
els
The warning and information labels are attached in such positions
of the
device that could represent a source of danger during set-up and operation.
Therefore, follow the information on the labels. I
f
labels are lost or damaged,
they must be replaced immediately.
15
17
Table of Contents
Default Chapter
3
Table of Contents
3
1 General
5
Operation Manual Use - General Information
5
Designated Use
6
Disposal Remarks
6
Technical Data / Device Specification
7
Technical Data Speedy 100
7
Technical Data Speedy 100R
9
Manufacturer's Label
11
EU - Declaration of Conformity
12
2 Safety
13
General Safety Information
13
Laser Safety Information
14
Safety Precautions When Operating the Device
15
Warning and Information Labels
16
3 Before Operation
19
Unpacking
19
Contents of Delivery
20
Location
21
Electrical - Requirements
22
Exhaust System - Requirements
23
Computer - Requirements
23
Connections
24
Connecting the Mains
24
Connecting the Computer
25
Connecting the Exhaust System
26
4 Operation
27
Machine View and Connections
27
ON/OFF Switch
33
Keypad
34
First Steps before Engraving
38
First Engraving Tests
42
Rotary Engraving Attachment
45
Tips and Tricks for Laser Engraving
49
Tips and Tricks for Laser Cutting
51
Tips and Tricks for the Production of Rubber dies
52
5 Maintenance
53
Cleaning the System
53
Cleaning the Optical Parts
54
Cleaning the Lens
54
Cleaning the Mirrors #2 and #3
56
Maintenance Plan
59
6 Additional Information
60
Tips for Troubleshooting
60
Options
61
Lateral Air Assist
61
Training Schedule
64
Response Form
65
How to Create a Service File
66
