3.7.3 Connecting the Exhaust System
 Connect your exhaust system to the mains socket (1).
Make sure that the mains voltage corresponds with the voltage
allocated for the exhaust system.
 Plug the ends of the exhaust duct into the allocated connection (2). The position
of the connector depends on the type of exhaust system.
 When using the Trotec exhaust system, also connect it with the cable included
to the remote control connector of the laser (3).
Also follow the operation and maintenance instructions in the Operation Manual of
the exhaust system.

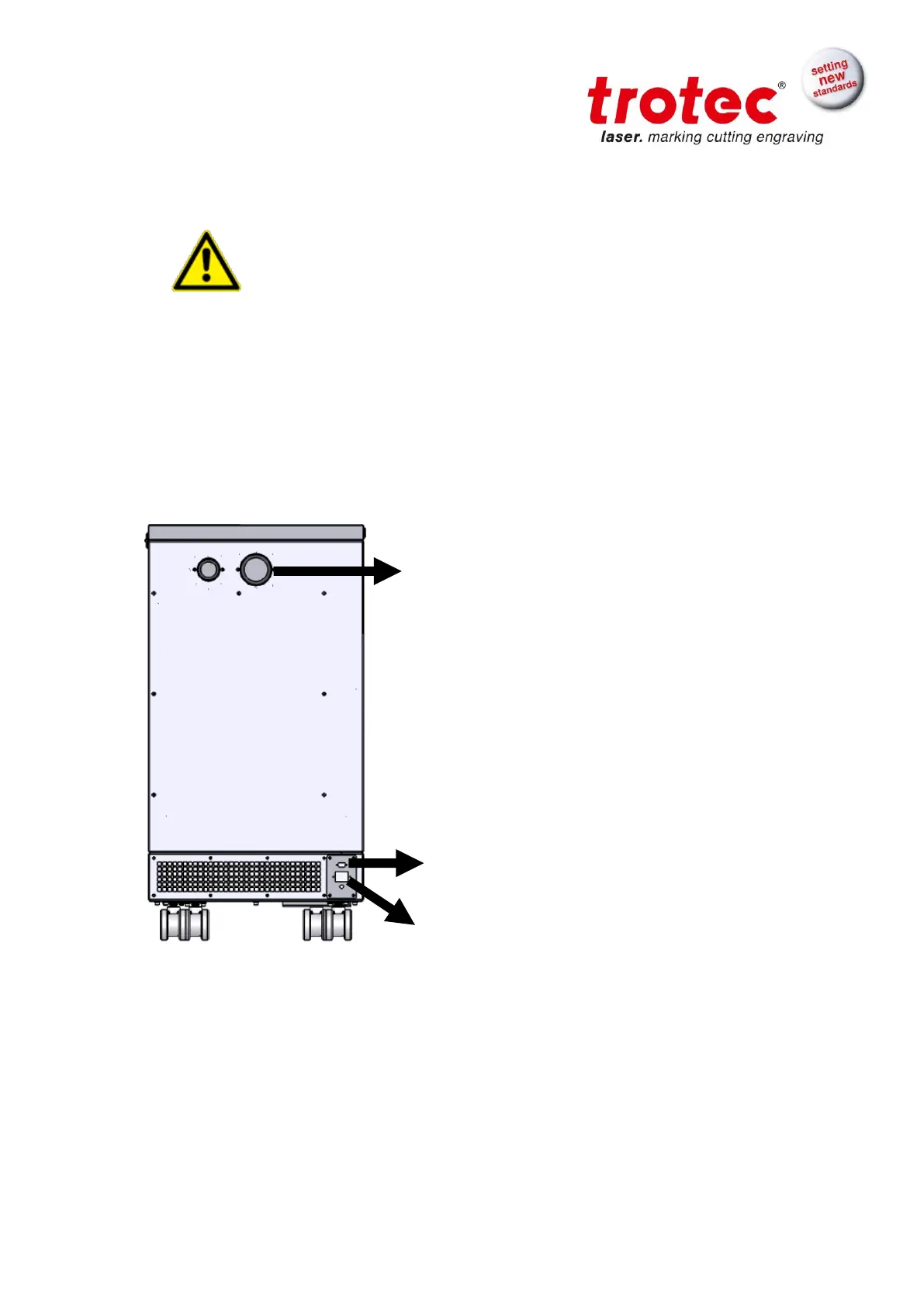

Exhaust connection hose
to Laser (2)
Exhaust connection cable
to Laser (3)
Mains cable to mains socket (1)
