4.6 Rotary Engraving Attachment
The rotary engraving option in the printer driver is used in combination of the
rotary engraving attachment, to engrave cylindrical objects.
To compensate for the different diameters of different objects, the image must
be adjusted. This is performed automatically by the engraving driver, by
selecting the rotary engraving option and entering the diameter of the object to
be engraved.
Never plug or unplug the rotary engraving attachment while the machine is
turned on. If this is not observed, there insists the danger of irreparable
damage on the prints!
The rotary engraving attachment permits engraving of cylindrical objects with a diameter
from 30mm to 118 mm, a length of up to 350 mm at a maximum weight of 3 kg.
To install and set-up the rotary engraving attachment proceed as described as follows:

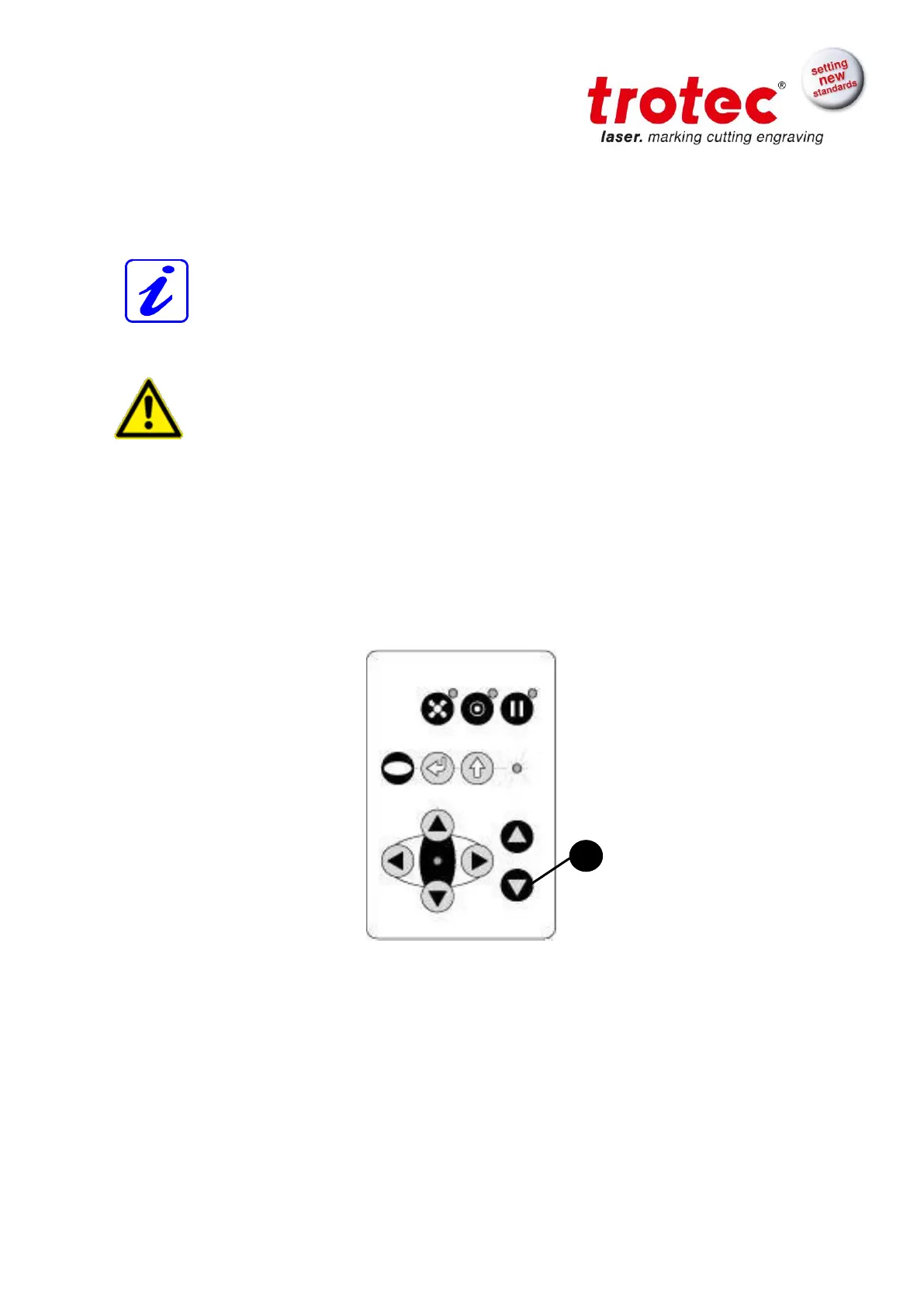

1. Move the working table to the lower position, switch off the laser and open the top
lid.
2. Put the rotary engraving attachment onto the working table and connect the rotary
engraving attachment to the working table. Before you fix the rotary engraving
attachment, align it so that its sides are parallel to the rulers. The rulers offer a visual
aid for placing the graphic.
