True ES700 - Detailed Assembly Steps

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 8
ELLIPTICAL ASSEMBLY STEPS:
CAUTION:
• It is recommended that two people unpack and assemble elliptical.
• Remove bands from packaging and pull top from pallet.
• Remove all parts from packaging. Leave machine on pallet.
• For each step use hardware in the corresponding bag.

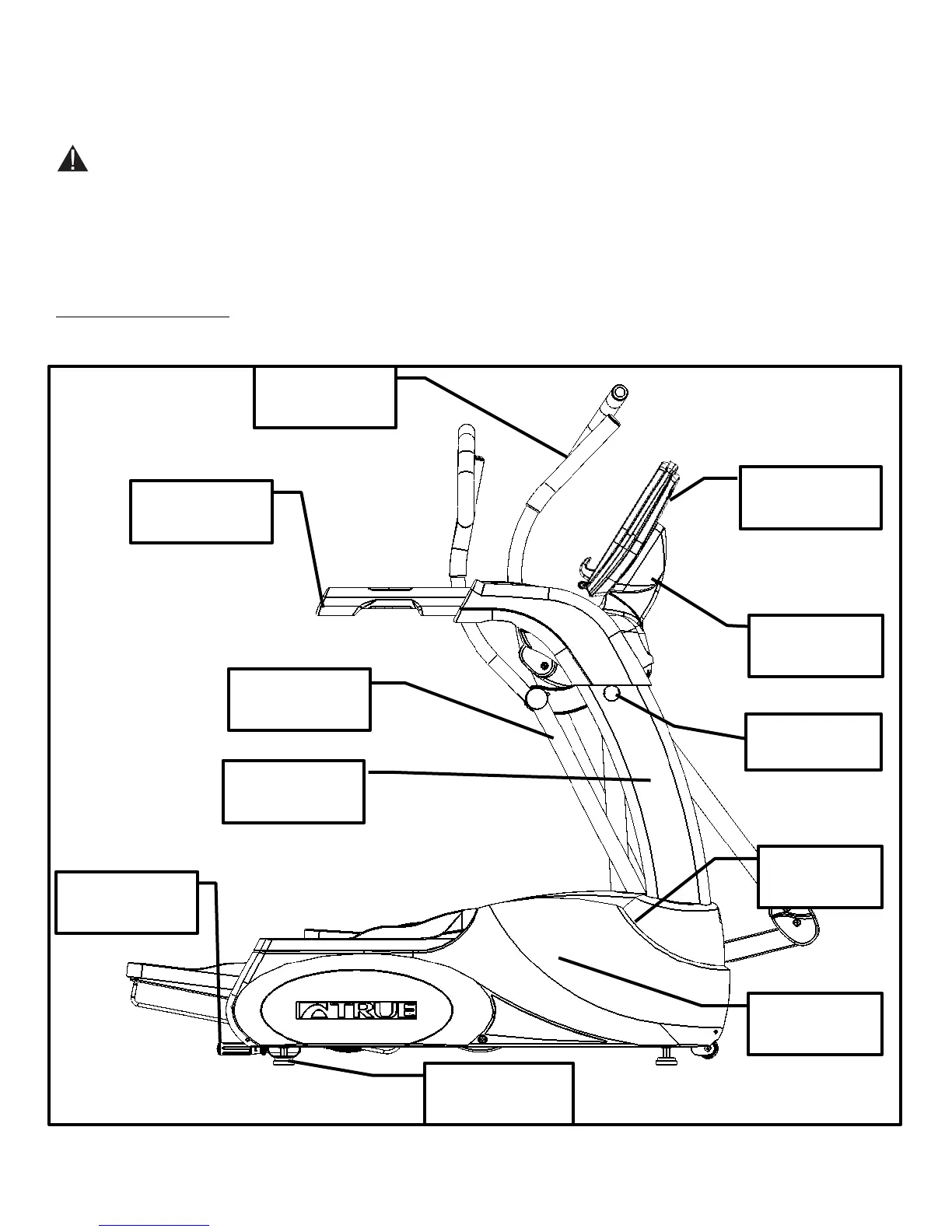

Parts Identification:
Use this page to identify the parts used in each step
TRUE Lock
Exercise Arms
Step 4
Side Arms
Step 3
Console
Step 6&7
Push Rods
Step 1 & 2
Base
Step 1
Handle Bars
Step 1&9
Neck Shroud
Step 7
Pedestal
Step 1
Boot
Step 1
Floor Levelers
Step 8
