True ES700 - Page 13

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 9
ELLIPTICAL ASSEMBLY STEPS (continued):
Pre-Assembly STEP 1: Install Transport Handle Bars:

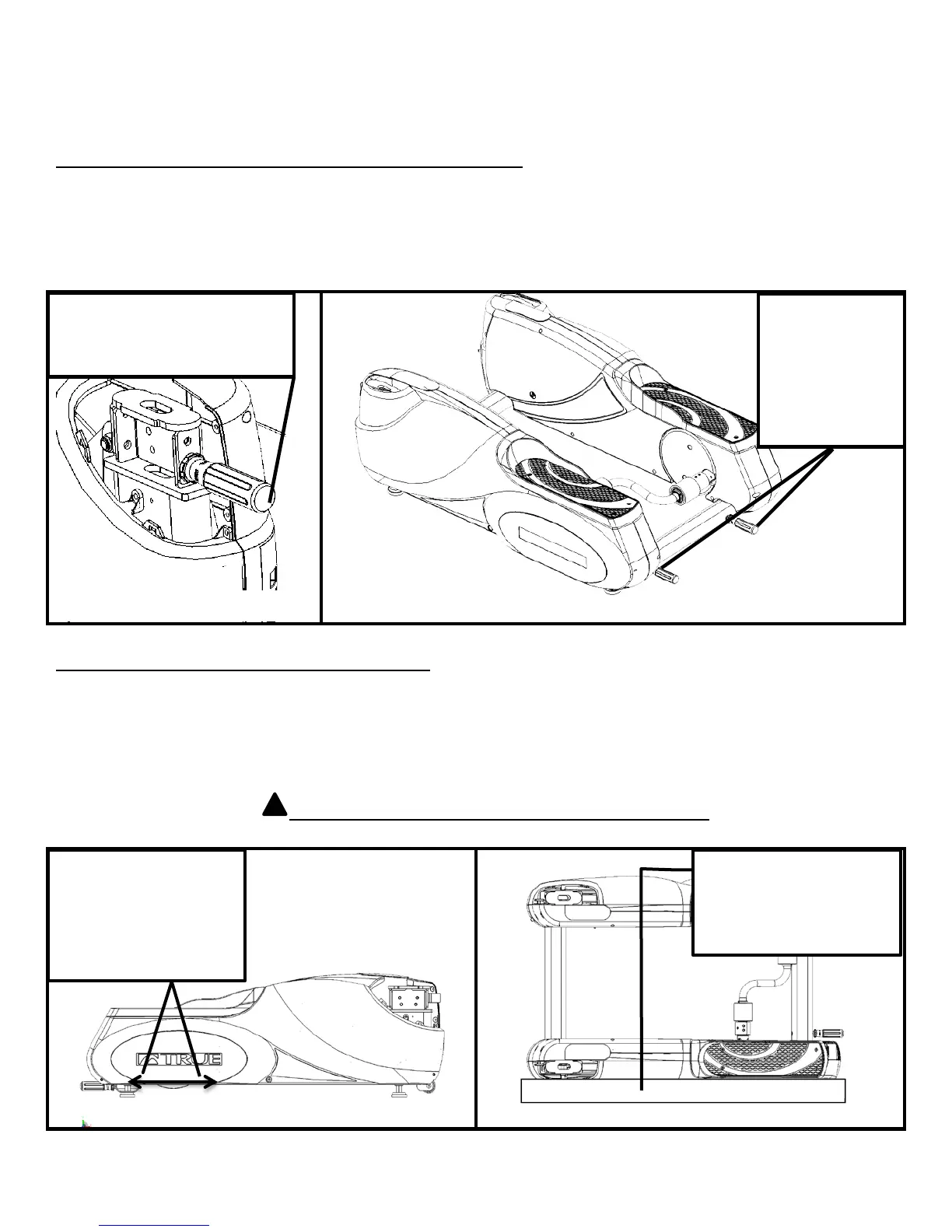

a) Important: With machine still on pallet, attach handle bars to the front and rear of machine. Handle Bars will
provide assistance in moving machine. Figures 1 & 2
b) Carefully remove Elliptical from pallet.
c) Important: After final machine placement has been completed, remove transport handle bars from machine and
store handle bars with owner’s manual.
Figure 2
Pre-Assembly STEP 2: Measure Doorways:
a) Measure all doorways, hallways and stairwells to make sure that the fully assembled elliptical (33 inches wide) can
fit through them.
b) If the fully assembled unit will not clear the doors and walls, move all parts to the final location and assemble
machine in that location. When moving the machine, keep the left side Styrofoam attached to the Base to help
avoid damaging the plastic covers. Set the base on the Styrofoam or the feet only. Figure 4
Please Note When Moving The Elliptical:
Figure 3
Figure 4
Attach Handles
to Base and use
both Front and
Rear Handles to
move Elliptical
off the pallet
Do not insert fork from
fork truck in this
location. There are
exposed parts that can
be damaged.
Elliptical base can be set
on its LEFT side, but
ONLY with the attached
Styrofoam underneath it.
Remove handles from front of
Base after machine is moved
into final placement
Figure 1
