ELLIPTICAL ASSEMBLY STEPS (continued):

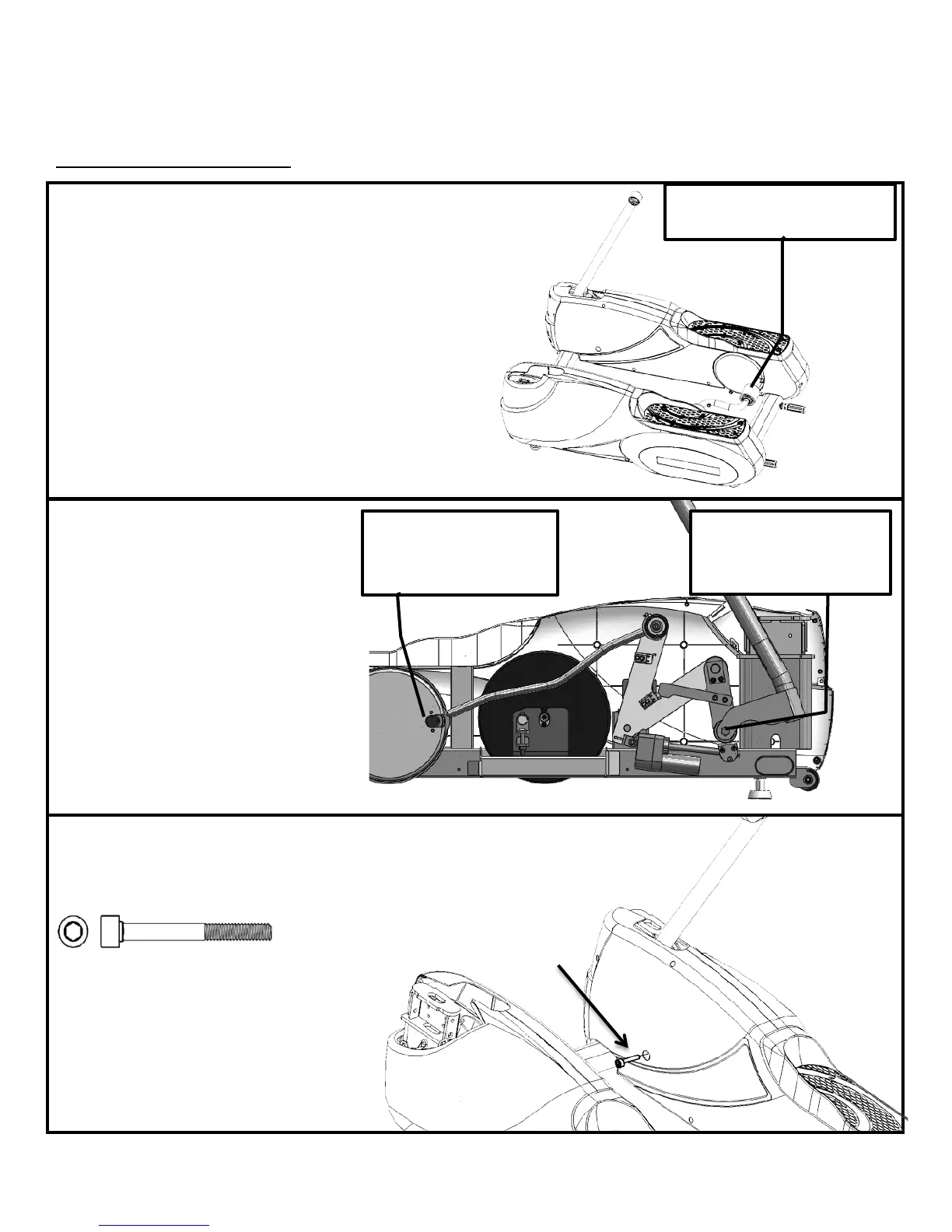

STEP 1: Attach Push Rods:
a) Rotate crankshaft to the rear on
the side that you are installing then
insert the push rod as shown.
b)
Once the pushrod is inside the
shroud, rotate the crankshaft forward
until the connection joint is
accessible through the hole in the
shroud.
c) Use the Allen wrench to insert the
bolt through the shroud and into the
joint. Tighten fully.
Hardware Required (Bag 1):
2 M10x55mm Bolts
Rotate Crankshaft to the rear
for push rod installation.
Align the pushrod so
that it is accessible
through the shroud.
Move crank shaft back
to front after push rod is
inserted.
