CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 13
ELLIPTICAL ASSEMBLY STEPS (continued):

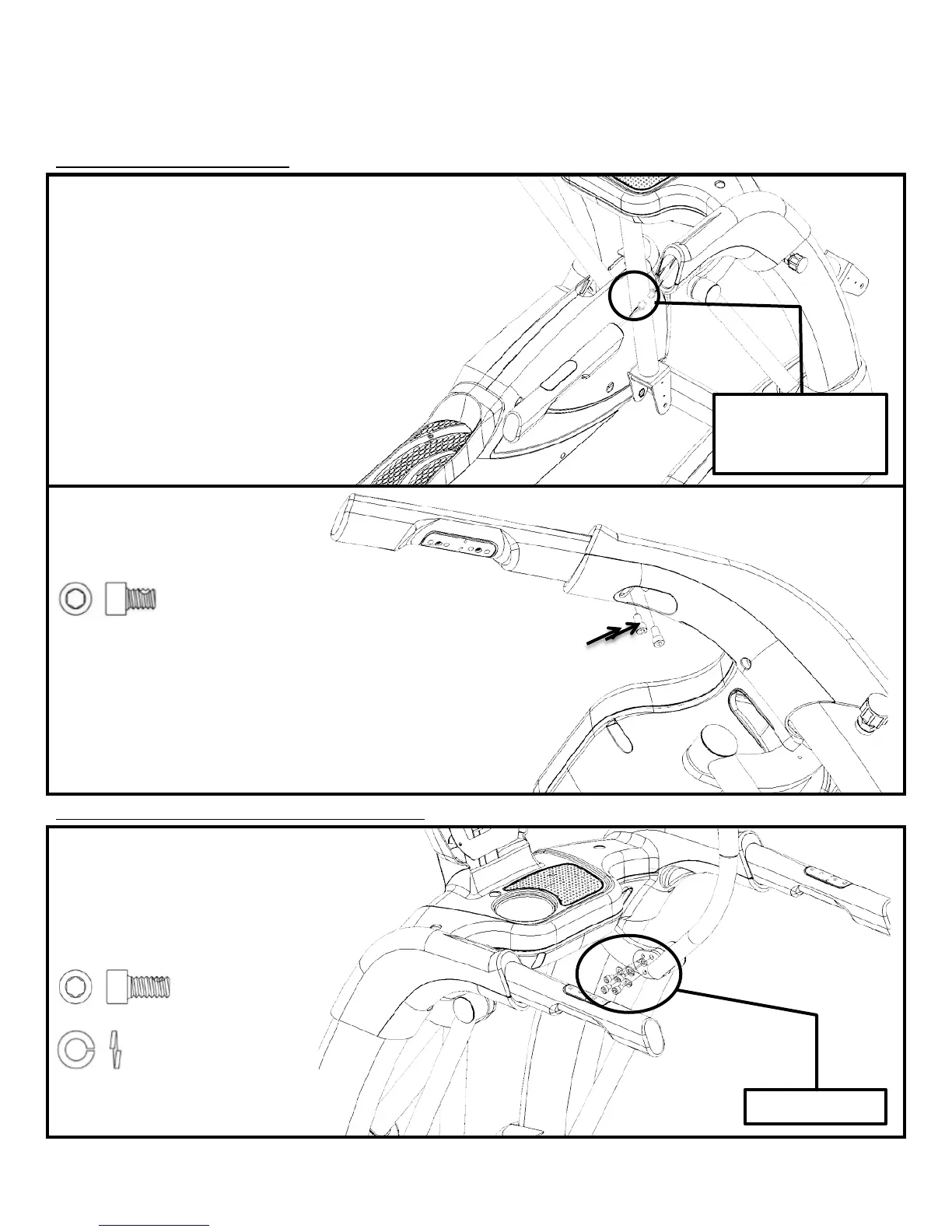

STEP 4: Attach Side Arms:
a) Connect Cardio Arm Heart
Rate Cable
b) CAREFULLY Slide Side Arm
into Pedestal and tuck the Heart
Rate Cable into the plastic
housing. Make sure to not pinch
the Heart Rate Cable wires.
c) Use 4 M8x12mm bolts to
tighten the Side Arms into the
underside of the Pedestal.
Hardware Required (Bag 4):
4 M8x12bolts
STEP 5: Attach Upper Body Cardio Arms:
a) Install each upper arm with 4
M8x20mm bolts and 4 lock
washers using an 8 mm hex key.
Note: Upper Arms are labeled “L
for Left and “R” for Right.
Hardware Required (Bag 5):
8 M8x20mm Bolts
8 Lock Washer
between the Pedestal
To Next Page
