CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 12
ELLIPTICAL ASSEMBLY STEPS (continued):

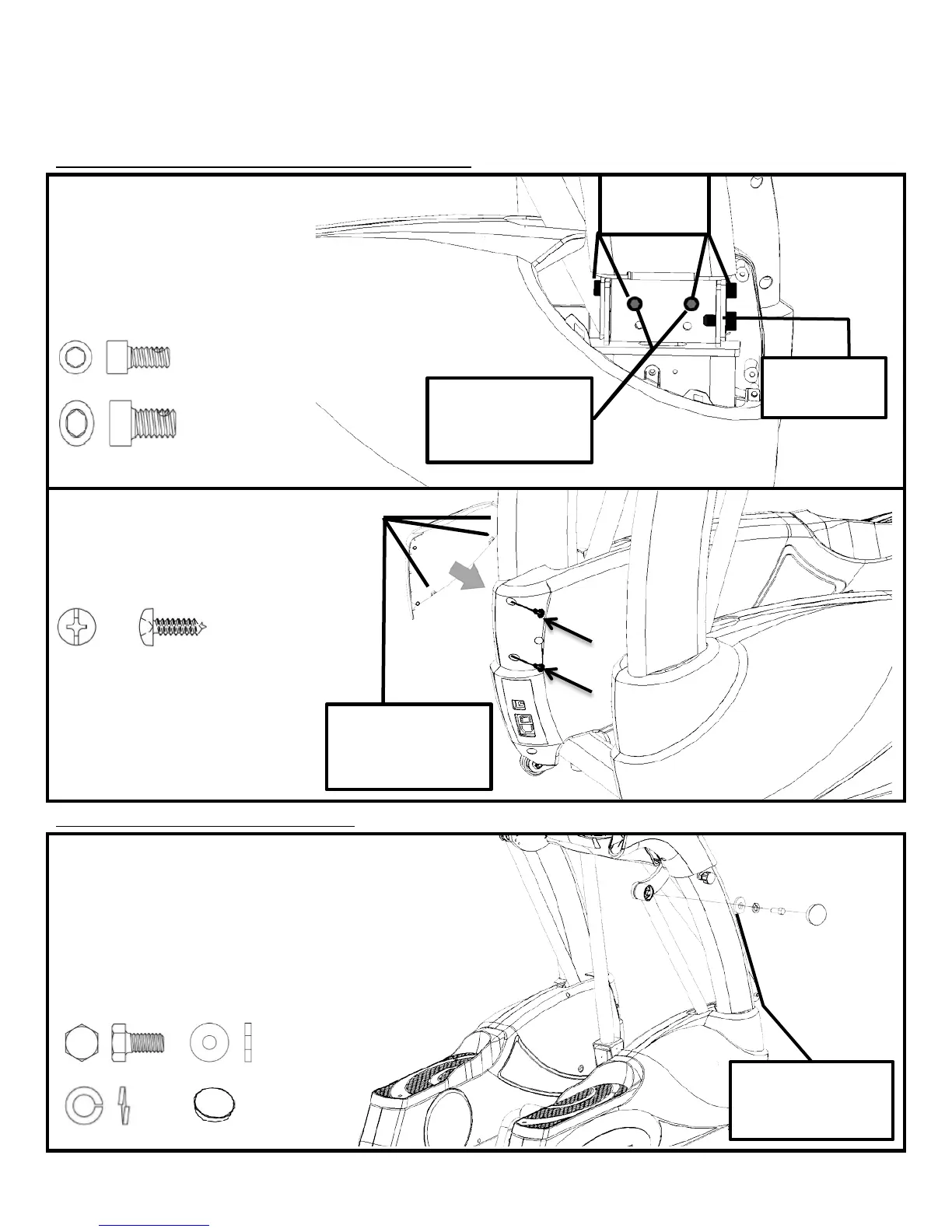

STEP 2: Assemble Pedestal to Base (continued):
c) Use 2 M12x12mm bolts and 8
M8x12mm bolts to attach Pedestal
to Base and connect the 3 cables
coming from the right pedestal to
the corresponding wires in the
base.
Hardware Required (Bag 2):
8 M8x12mm Bolts
2 M12X12mm Bolts
d) Snap the 2 Front Boot Covers
into place on the base and use 4
M4 screws to tighten down the
Boot Cover.
Hardware Required (Bag 2):
4 M4 Screws
STEP 3: Attach Top of Push Rods:
a) Slide the shaft through the
bearing on the top of the push rod
and use the bolts, lock washers and
flat washers from bag 3 to secure
the push rod to the shaft.
b) Use the plastic caps from bag 3
to cover the top of the push rod.
Hardware Required (Bag 3):
2 M10 Bolts
2 Flat Washer
2 Lock Washer
2 Plastic Caps
M8x12mm
Bolts
M12x12mm
Bolt
Insert these bolts
first to help align
other bolts
Make sure these
three areas snap
into place.
Make sure to use
the washer in-
between the bolt
