CHAPTER 2: ASSEMBLY GUIDE
TREADMILL ASSEMBLY STEPS:
Escalate
15
Console Assembly:
Truetness.com / 800.426.6570 / 636.272.7100 47 of 141
Step 2 (Console Mounting):

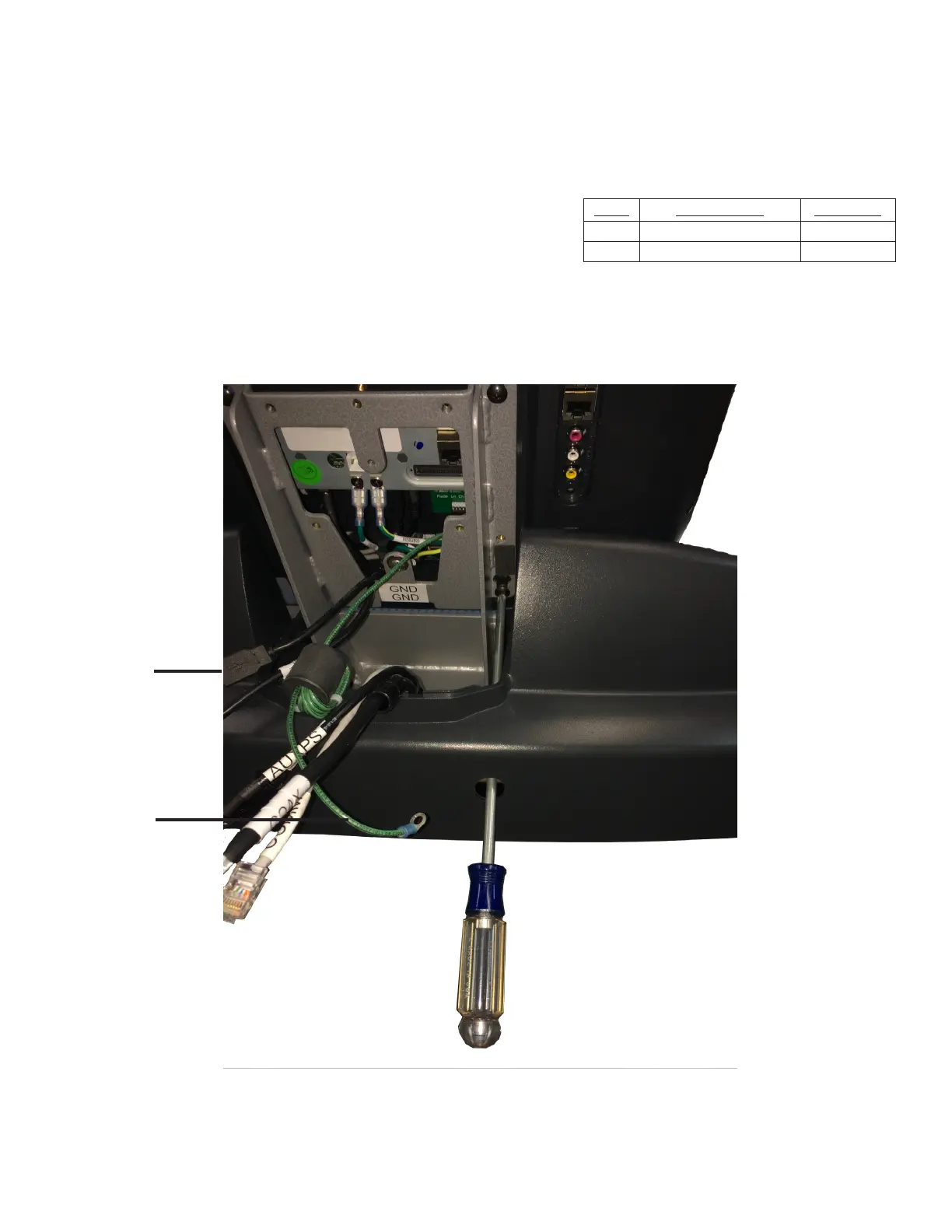

Route the Ground Wire and Data Cable (USB) through the console
mast assembly.
Set the bottom two console mounting screws, which were partially
thread into the console, into the keyholes on the console mast assembly.
Partially thread the top two console mounting screws and then fully
tighten all four console mounting screws using a long, Phillips screwdriver.
Item Description Quantity
4 Ground Wire 1
5 Data Cable (USB) 1
5
4
