CHAPTER 2: ASSEMBLY GUIDE
TREADMILL ASSEMBLY STEPS:
Escalate
15
Console Assembly:
Truetness.com / 800.426.6570 / 636.272.7100 49 of 141

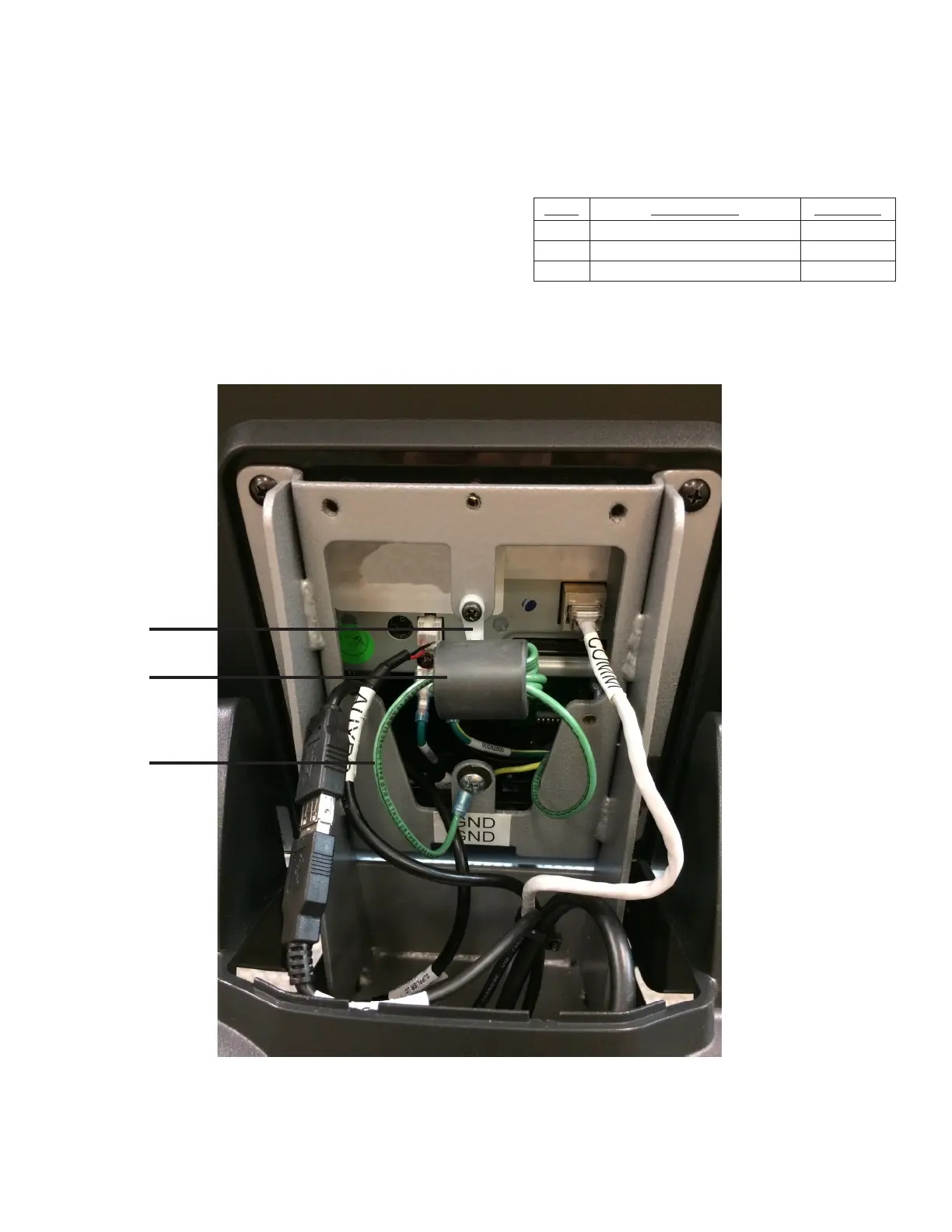

Step 4 (Ground Wire):
Secure the ferrite on the ground wire to the console mast
assembly in the location identied using a M4 screw.
Secure the ground wire ring terminal to the corresponding
location on the console mast assembly marked “GND” using
the screw that is currently there.
Position the unused Fan and CSAFE cables inside the pedestal.
Item Description Quantity
10 Ground Wire 1
11 Ferrite 1
12 Wire Tie 1
12
11
10
To Next Page
