CHAPTER 2: ASSEMBLY GUIDE
TREADMILL ASSEMBLY STEPS:
Emerge Console Assembly:
Truetness.com / 800.426.6570 / 636.272.7100
58 of 141

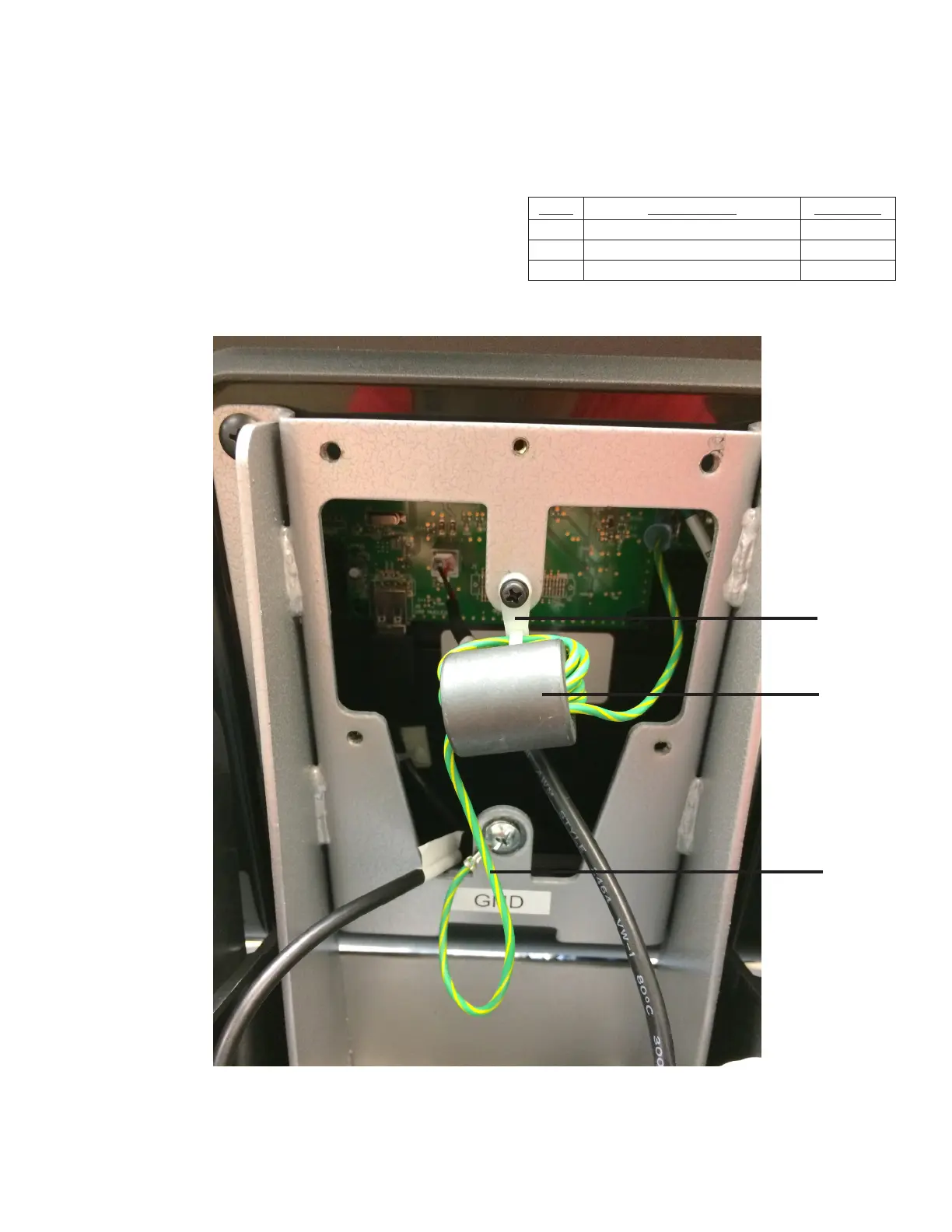

Step 4 (Ground Wire):
Secure the ferrite on the ground wire to the console mast
assembly in the location identied using a M4 screw.
Secure the ground wire ring terminal to the
corresponding location on the console mast assembly
marked “GND” using the screw that is currently there.
Item Description Quantity
6 Ground Wire 1
7 Ferrite 1
8 Wire Tie 2
8
7
6
