Powrbar Installation

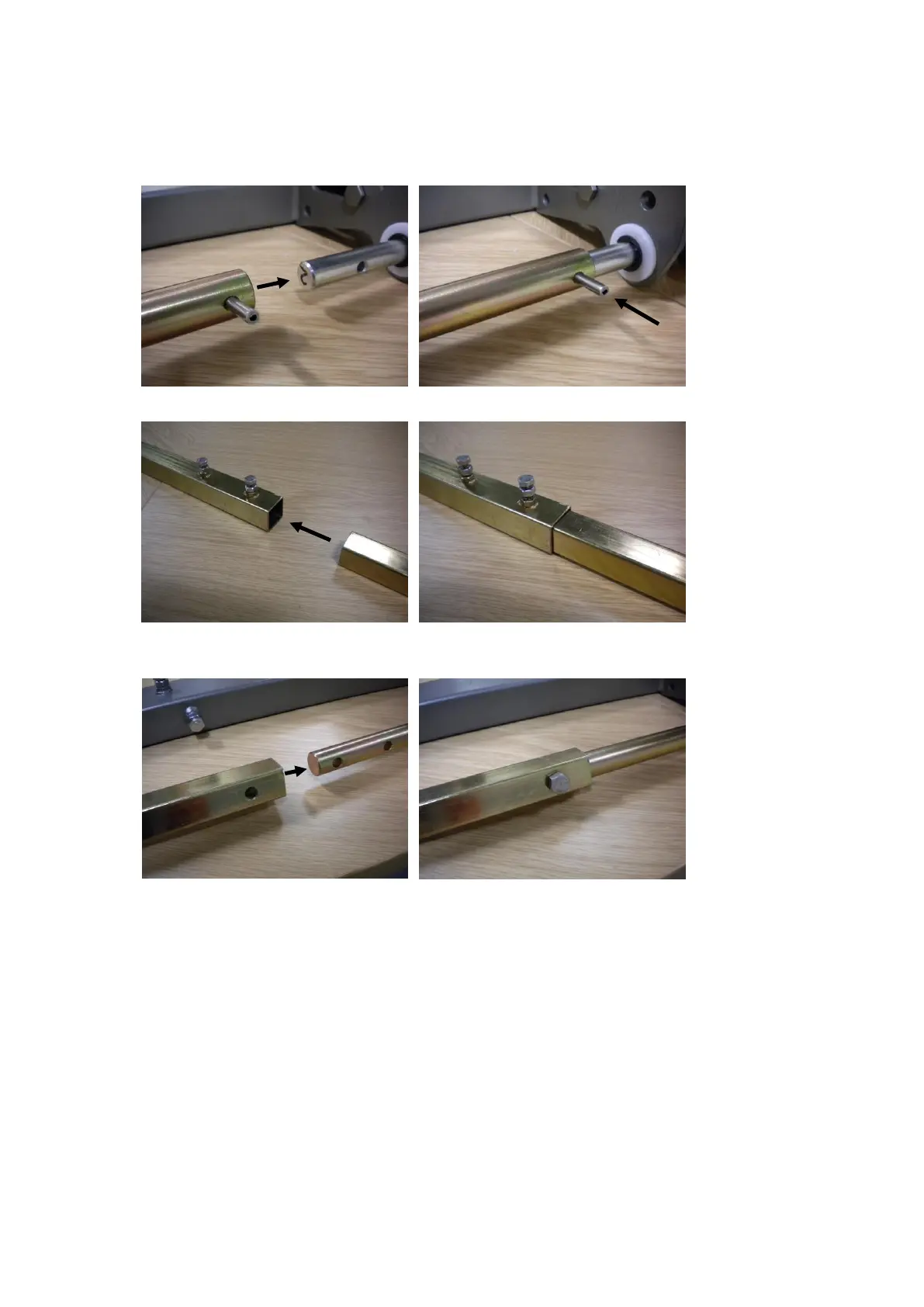

The Powrbar installation kit, as detailed in Fig 2
Slide the inter shafts over the inner section of the engagement shafts
Tap the 5mm dia spirol pin through securing the shaft in place
Slide the outer square sections into the centre Powrbar section and leave the pinch bolts loose
Span the caravan with the loosely assembled square sections and slide the ends over the
inter shafts
Tighten all bolts and nuts to secure
Be sure that the Powrbar or Centre Bar does not foul any other system, such as the
brake cables, water tanks etc.
