TSC DA320 Series

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
9
14

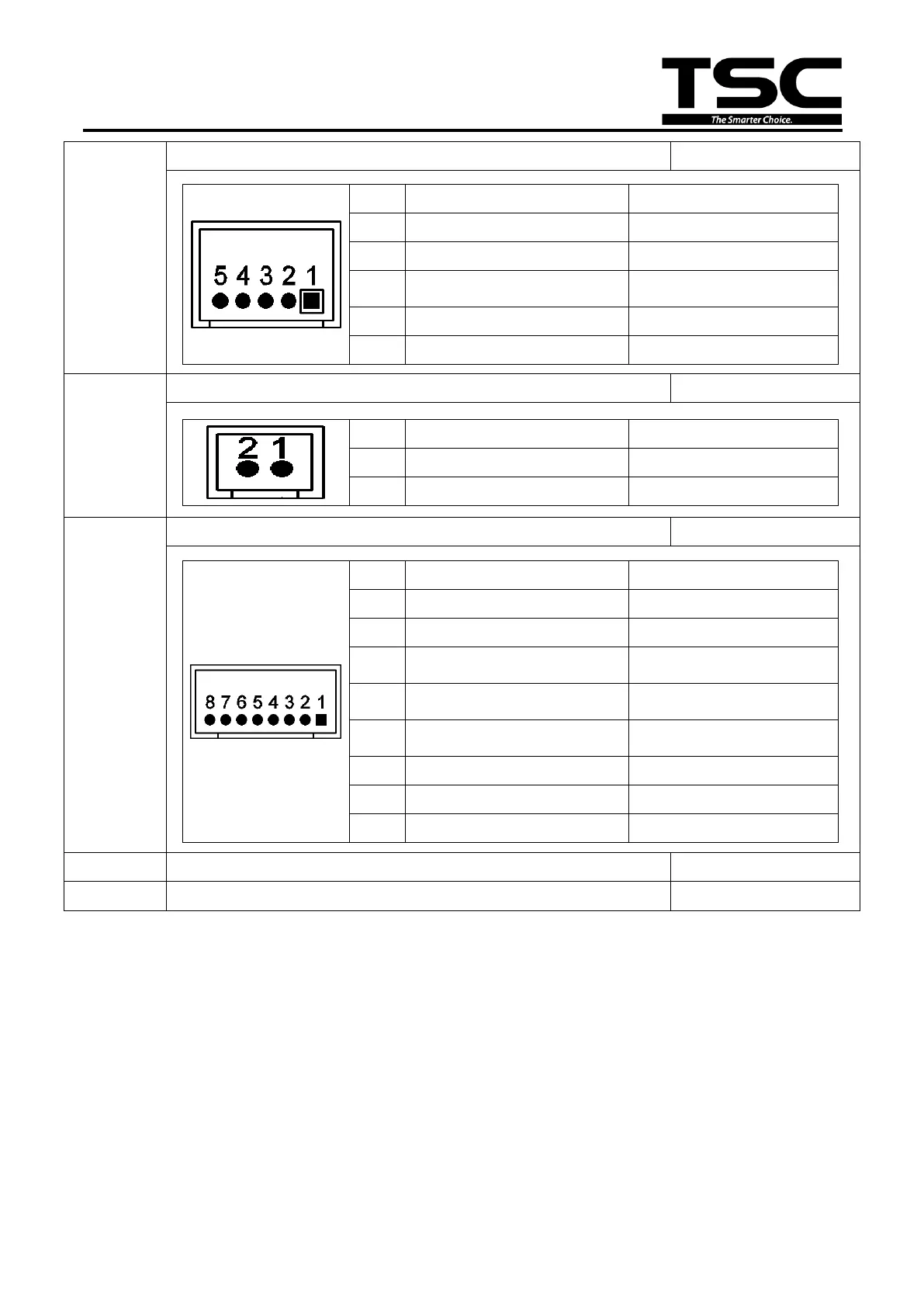

PEEL sensor connector
CON10
Pin
Description
Voltage
1
Power
3.3V
2
Reserved
3
Peel sensor emitter
Emitter on : 2.1~2.3V
Emitter off: 2.6~2.8V
4
Peel sensor receiver AD
0~3.3V
5
GND
0V
15
ESD_GND_PIN
JP2
Pin
Description
Voltage
1
GND
0V
2
GND
0V
16
Cutter connector
CON6
Pin
Description
Voltage
1
Cutter power
24V
2
GND
0V
3
Cutter direction
0V: Cutter positive cut
5V: Cutter negative cut
4
Cutter enable
0V: Cutter work
5V: Cutter stop
5
Cutter position sensor switch
0V: Cutter stop
3.3V: Cutter work
6
GND
0V
7
Logic power
5V
8
Reserved
17
Print head connector
CON24
18
STEP_MOTOR connector
CON16
