DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
24

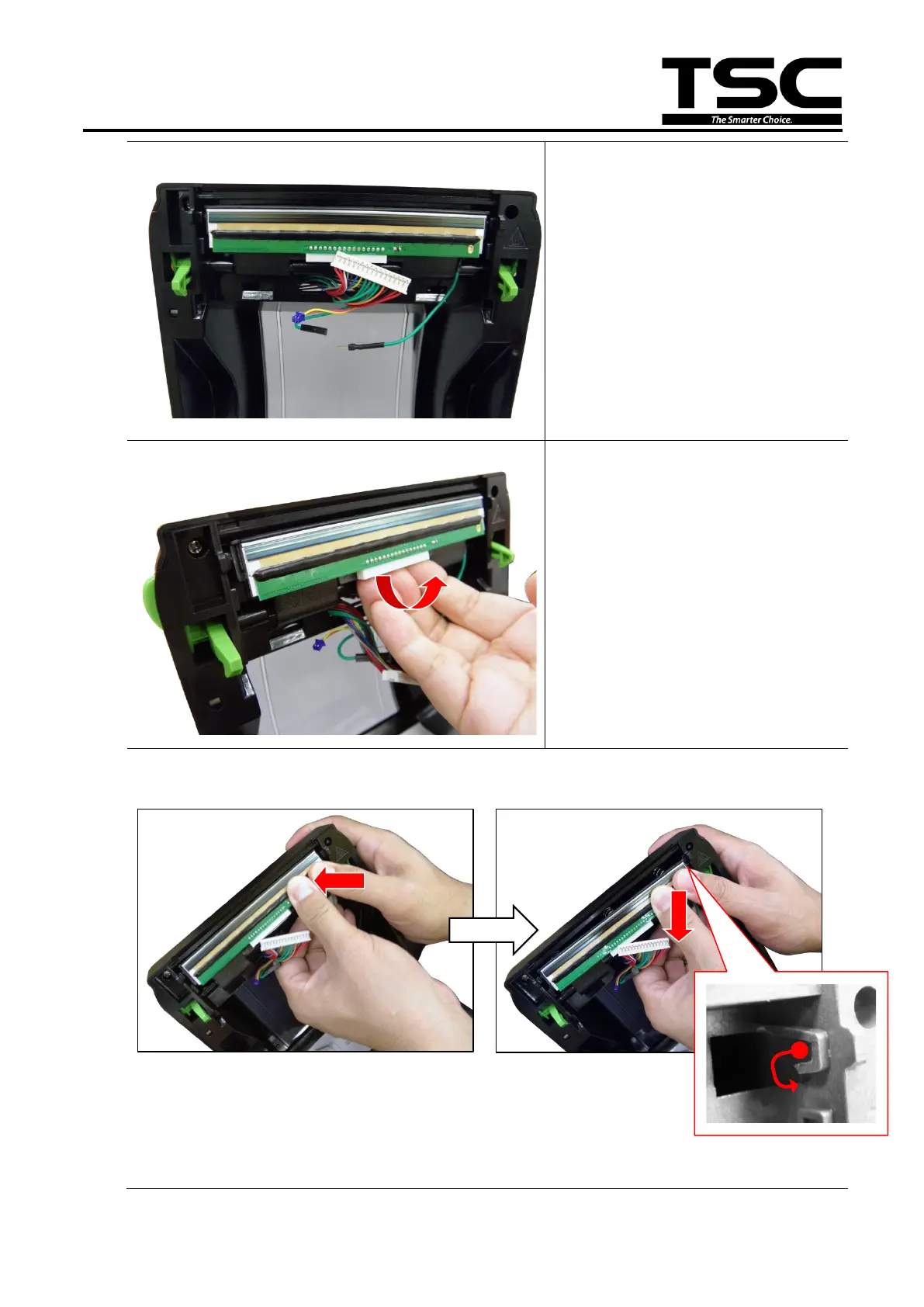

4. Disconnect the printhead
harness and the ground cable
connector.
5. Peel off the printhead module
(with fixing cover). Please
DON’T just peel the connector.
6. Press one side of the printhead module then drop down it to remove/replace it.
Let latch to release from top
inner cover.
