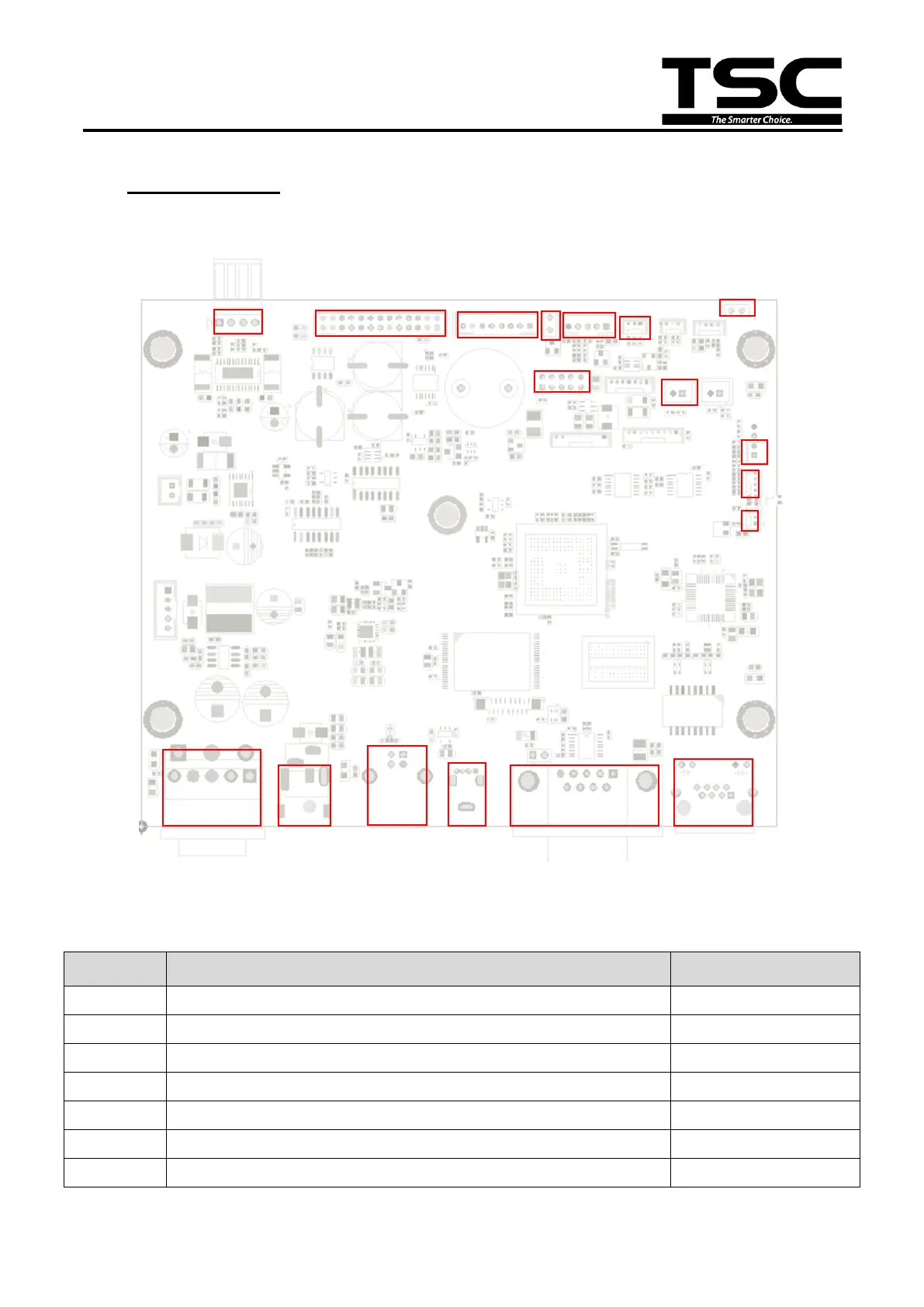

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
7
For DA220 series
Connector
Description
Remark
1
Power switch connector
SW1
2
Power supply (24V DC) connector
DCIN1
3
USB Device connector
USB1
4
USB Host connector
USB2
5
RS-232C connector
RS1
6
Ethernet connector
LAN1
7
RTC battery connector
BT1
7
8
9
10
12
11
13
14
15
16
17
18
1
2
4
5
3
6
