TSC MH241 Series User Manual

24

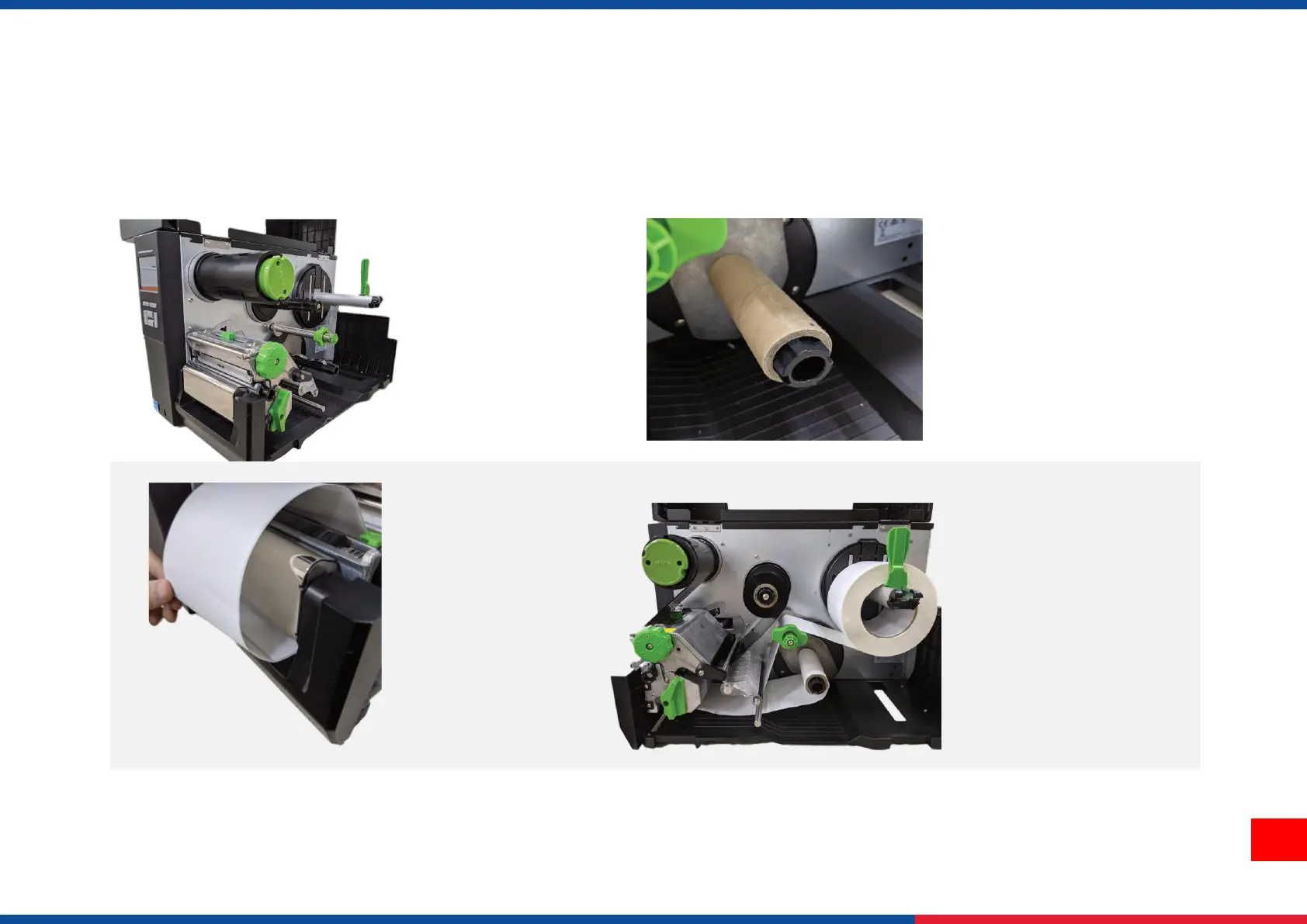

3.7 Loading Media in Rewinder Mode (Option-MH241/MH241T)
1. Open the media
cover and load
the meida.
2. Install the paper core
onto the rewind
spindle.
3. Thread the label
through the slot
on the front
cover.
4. Spin the rewind
spindle to make the
label be fixed. Then
close the right cover
and print head, and set
the print mode to
Rewinder Mode.

TSC MH241 Series Specifications

General

Resolution	203 dpi
Max. Print Width	104 mm
Interface	Ethernet
Scanning Method	Thermal Transfer/Direct Thermal
Supported Barcode Types	1D Barcodes
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	60°C
Humidity	25-85% non-condensing
Weight	MH241/MH241T/MH241P: 15 kg MH341/MH341T/MH341P: 15 kg MH641/MH641T/MH641P: 15 kg
