TSC MH241 Series User Manual

40
5.7 Setting Post-Print Action
When the printer is equipped with other opton kits, ex: cutter, peeler, rewinder, please select the mode after finishing the calibration.
Follow below procedure to set the post action for the printing:

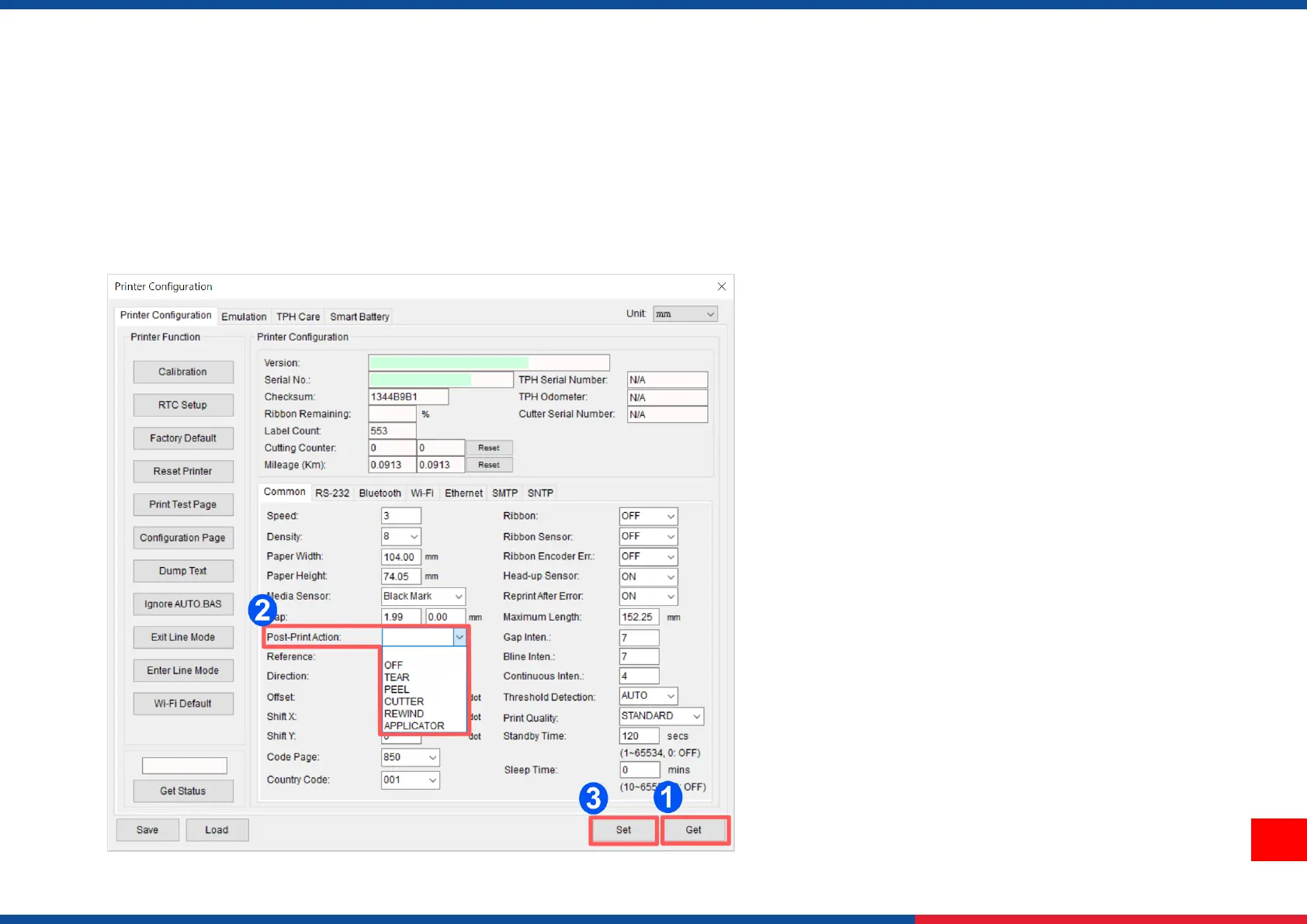

Refer Chp 5.1 to Connect the printer with TSC Console > Double click the printer > The Printer Configuration Page will pop up > Click
Get to load information > Go to Common Tab > Find Post-Print Action > Select the mode depends on users’ application > Click Set.

TSC MH241 Series Specifications

General

Resolution	203 dpi
Max. Print Width	104 mm
Interface	Ethernet
Scanning Method	Thermal Transfer/Direct Thermal
Supported Barcode Types	1D Barcodes
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	60°C
Humidity	25-85% non-condensing
Weight	MH241/MH241T/MH241P: 15 kg MH341/MH341T/MH341P: 15 kg MH641/MH641T/MH641P: 15 kg
