TSC MH241 Series User Manual

33

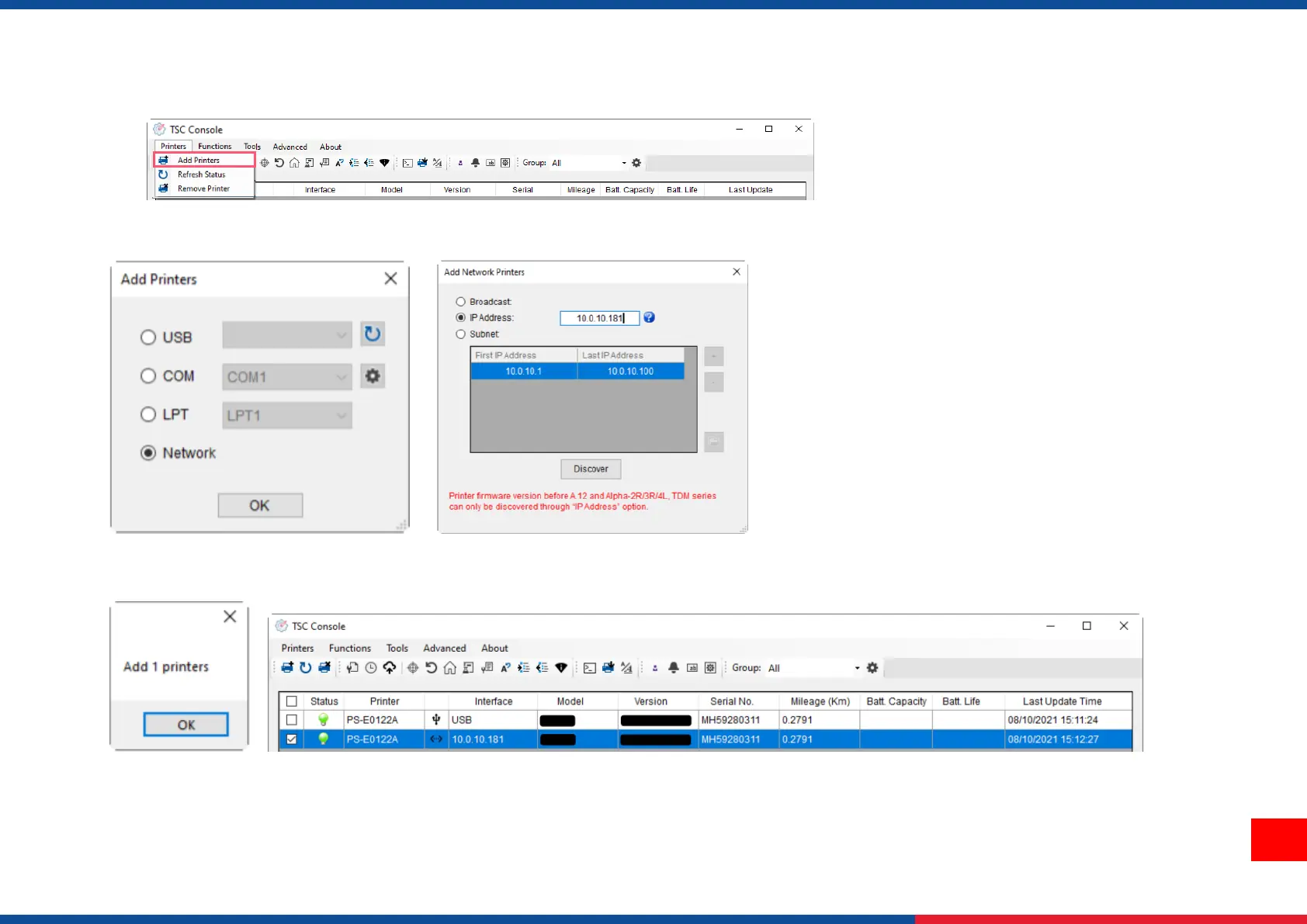

 Return to TSC Console main page > Click Add Printer on the top left of the window.
 Choose Network > Key in the IP Address > Click Discover to establish the Ehternet interface.
 The notification will pop up > Click OK to close the window > The Ethernert interface will be shown on TSC Console.

TSC MH241 Series Specifications

General

Resolution	203 dpi
Max. Print Width	104 mm
Interface	Ethernet
Scanning Method	Thermal Transfer/Direct Thermal
Supported Barcode Types	1D Barcodes
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	60°C
Humidity	25-85% non-condensing
Weight	MH241/MH241T/MH241P: 15 kg MH341/MH341T/MH341P: 15 kg MH641/MH641T/MH641P: 15 kg
