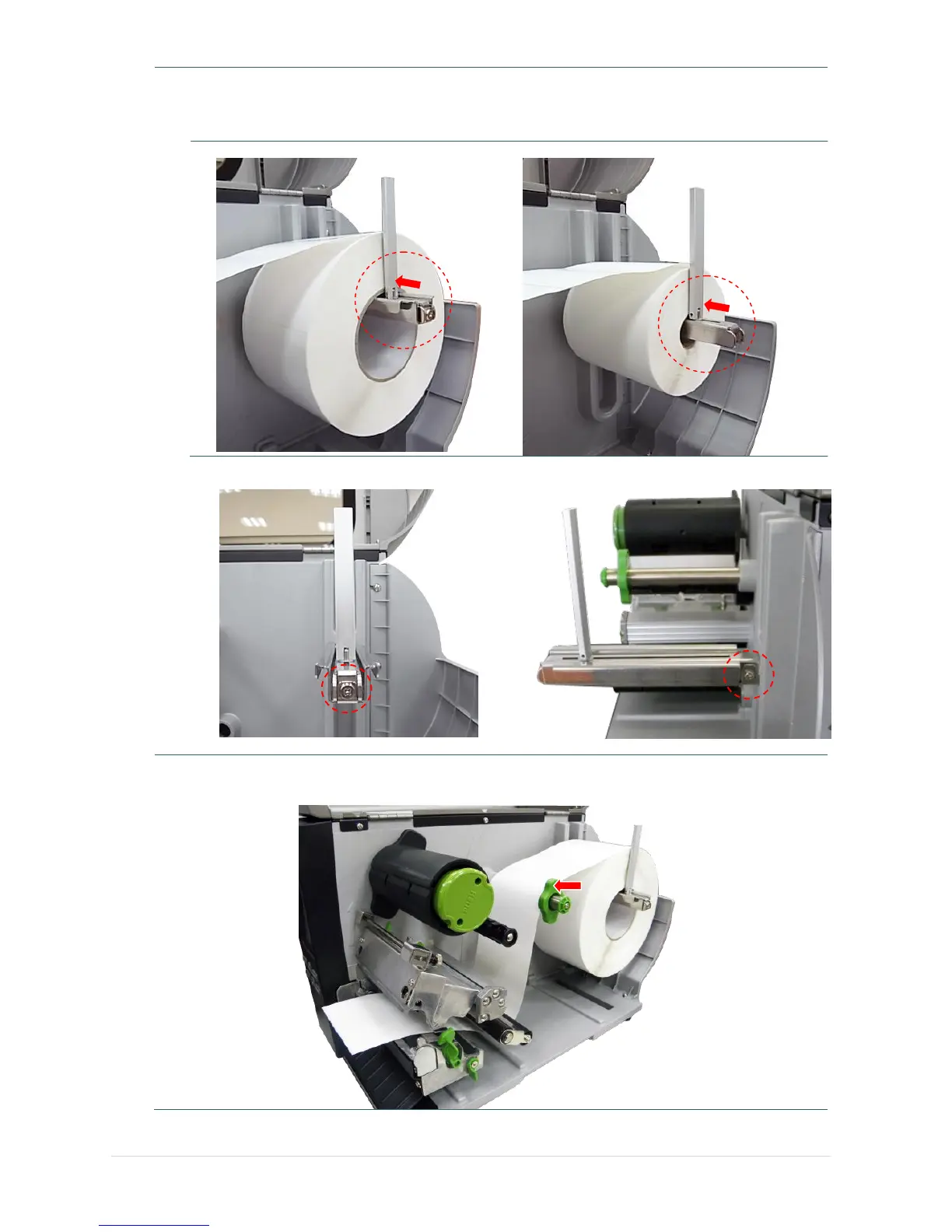

4. Place the roll of media on the label supply spindle. Flip up the label roll guard. Move the label roll
guard horizontally to gently fit the width of label roll.
3” core label spindle
1” core label spindle
Replace 3” core label spindle module to fit the 1” core label by removing two screws.
5. Pull label roll leading edge forward through the media guide bar, damper, media sensor (green)
and place the label leading edge onto the platen roller. Adjust the rear label guide (green) to fit
the width of the label.
Rear label
guide
