- 73 -

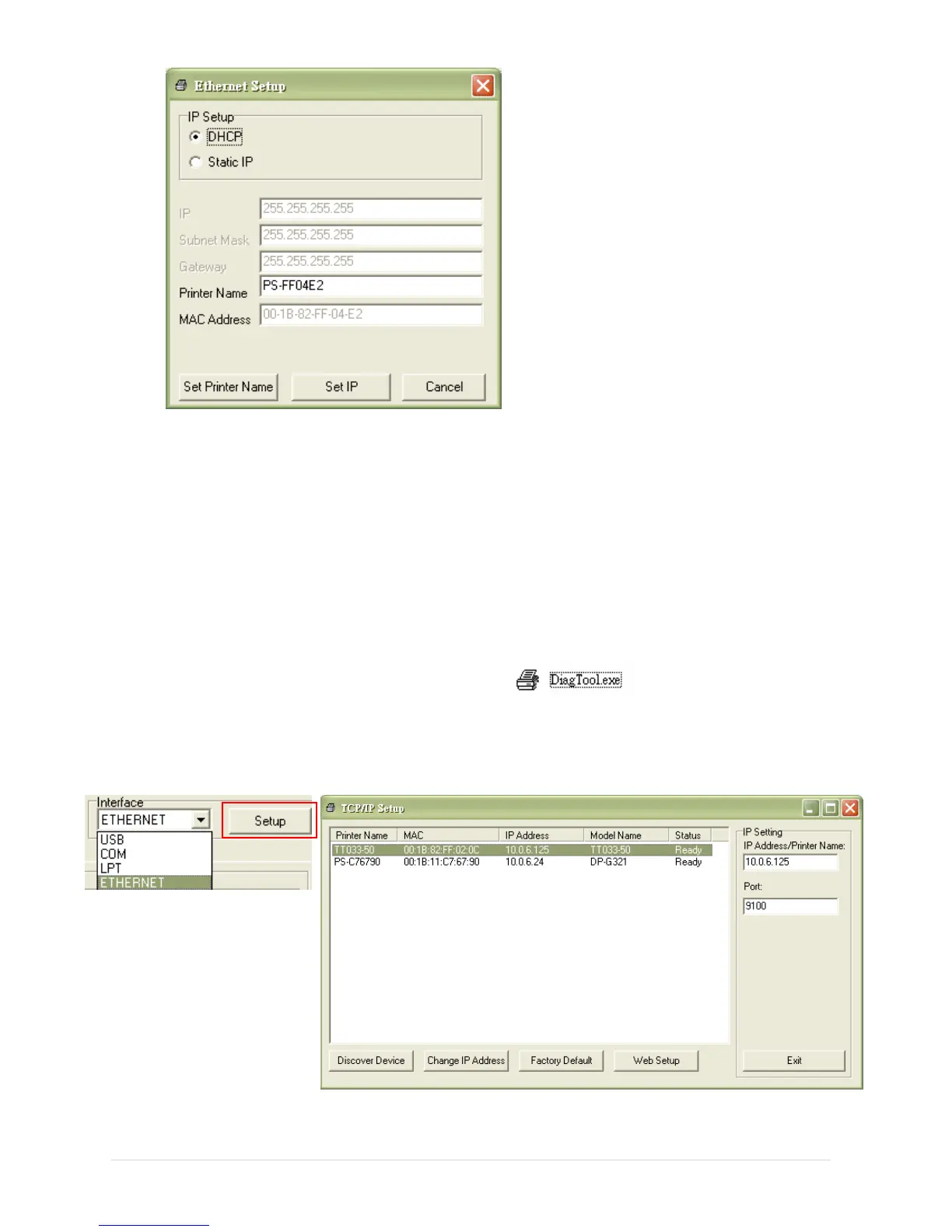

6.3.3 Using Ethernet interface to setup Ethernet interface
1. Connect the computer and the printer to the LAN.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicks on the icon.
4. Select “Ethernet” as the interface then click on the “Setup” button to setup the IP address, subnet
mask and gateway for the on board Ethernet.
5. Click the “Discover Device” button to explore the printers that exist on the network.
