TSC TTP-2610MT Series Service Manual

37

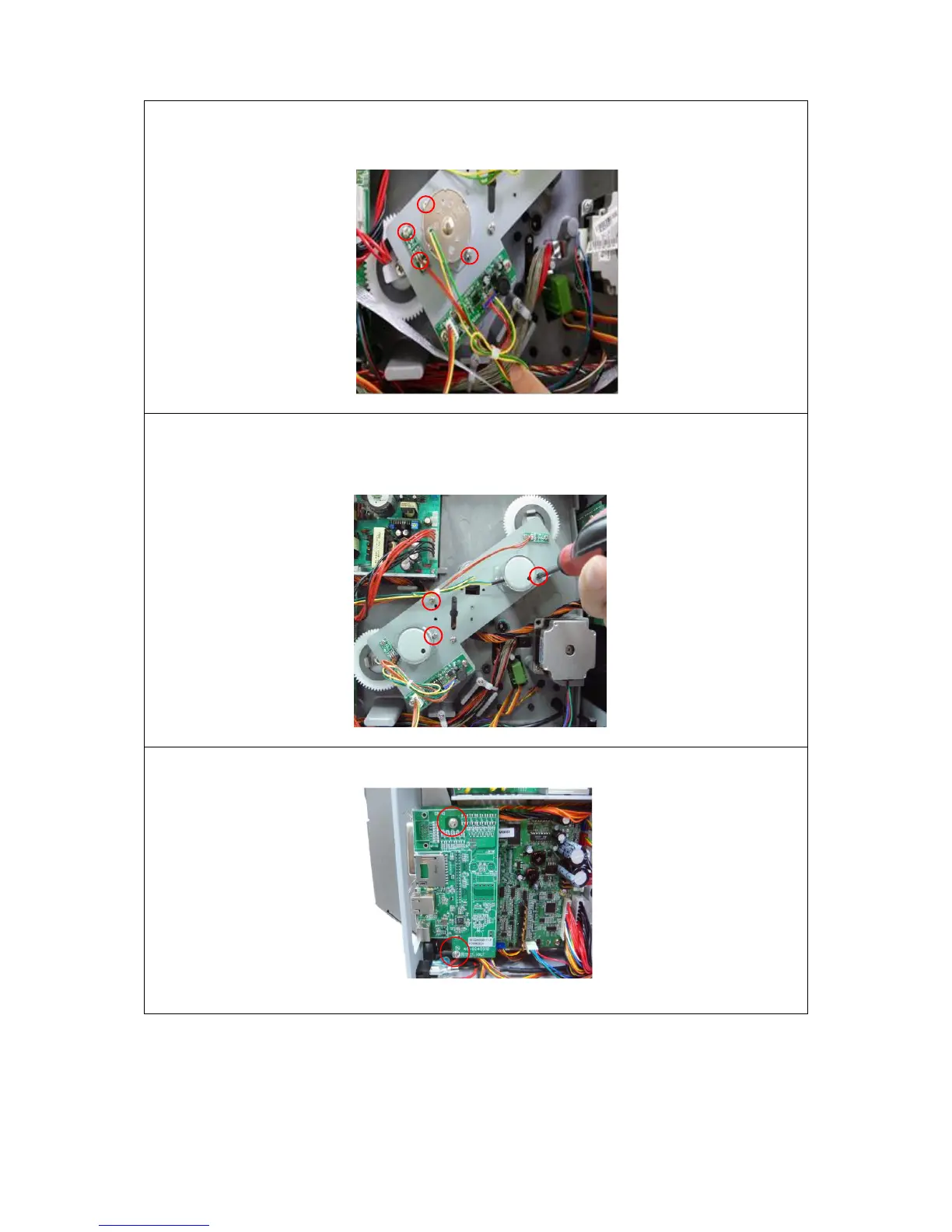

19. Use 4 screws (#4) to fix the DC motor and sensor board on the plate. Use
screws (#3) to fix the DC motor control board on the copper pillars. Plug the DC
motor kit harness into the DC motor control board.
20. Use 3 screws to fasten the DC motor plate to the printer mechanism. Plug the
DC motor control board harness into the DC motor control board. (White
connector)
21. Remove 2 screws from multi-interface board to remove the multi-interface
board.
