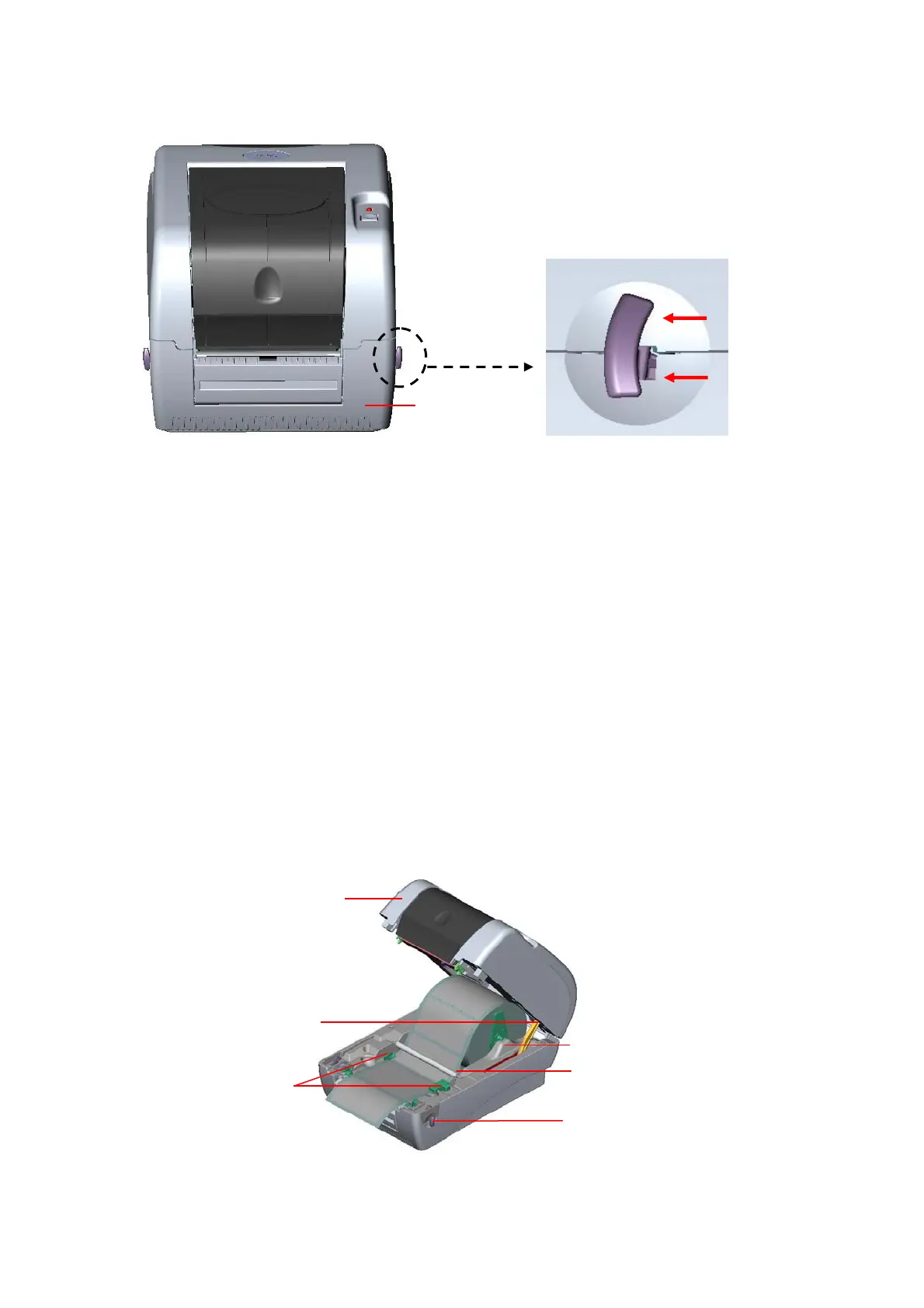

Fig. 7 Pull the lever to open the cover
3. Place a roll of paper onto the center of the paper roll mount.
4. Feed the paper, printing side face up, through the Teflon bar and the paper
guide and pass over the platen.
5. Adjust the green center-biased paper guides to slightly touch the edges of the
label backing.
6. To close the printer top cover, lift the cover to the ultimate open angle then use
both hands to close the cover gently. Close the printer top cover slowly and
make sure the cover latches securely.
Note:
1. Make sure hands are not placed between printer top cover and lower
cover when close the top cover.
2. Do not free fall the top cover.
3. Failure to securely close and lock the cover will result in poor print
quality.
Lower Cover
Printer Top Cover
Top Cover Support
Paper Guide
Teflon Ba
Top Cover Open Lever
Paper Roll Mount
