TSC TTP-345 User Manual

15
4. Use a screwdriver to screw off 6 screws on the lower inner cover.

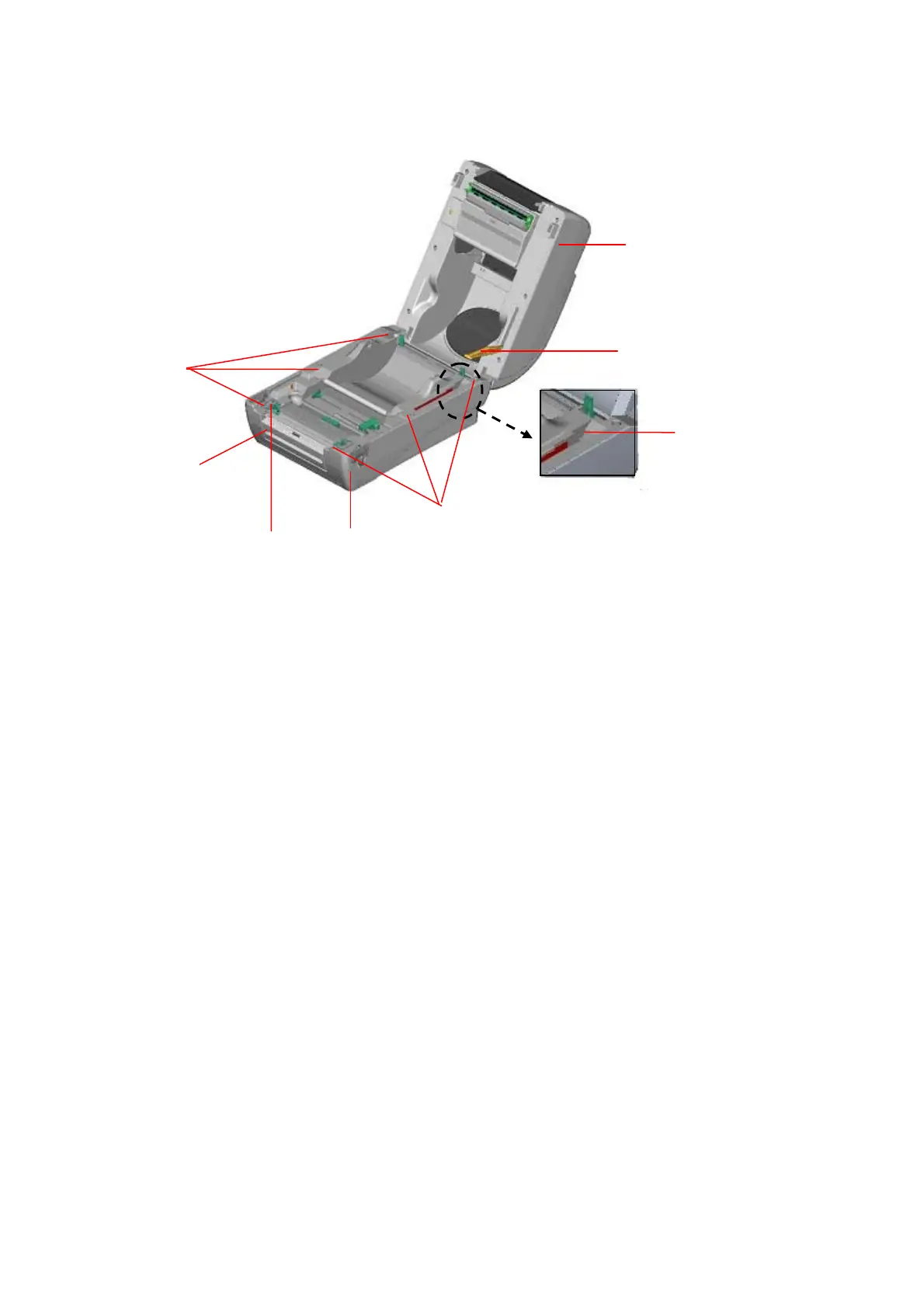

Fig. 23 Remove 6 screws from lower inner cover
5. Place the printer upside down and unscrew the two screws of the hinge holder
on the lower cover.
6. Unscrew the screw of the memory card cover and remove the memory card
cover. Plug in the cutter driver IC at U14(TTP-245/343) / U30(TTP-245 Plus/343
Plus/247/345) socket on the main board.
7. Use both thumbs to hold the lower cover and index fingers to lift up the top cover
open levers to separate the lower inner cover and the lower cover.
8. Arrange the cable through the bezel. Connect the cutter module cable to the
4-pin socket on printer PCB.
Screws
Top Cover
Screws
Top Cover Support
Flute
Lower Cover
Lower Inner Cover
Front Panel

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
