TSC TTP-345 User Manual

19
2. Lift up the top gradually.
There are two stop positions for the top cover. Position 1 and 2 are indicated on
the label below.
Note: To hold the cover open at position 1, you must lift the cover higher
than the stopping point at position 1 and gently lower the cover to stop
position 1. DO NOT free fall the top cover!
3. Fully open the top cover and gently lower it to stop position 2.

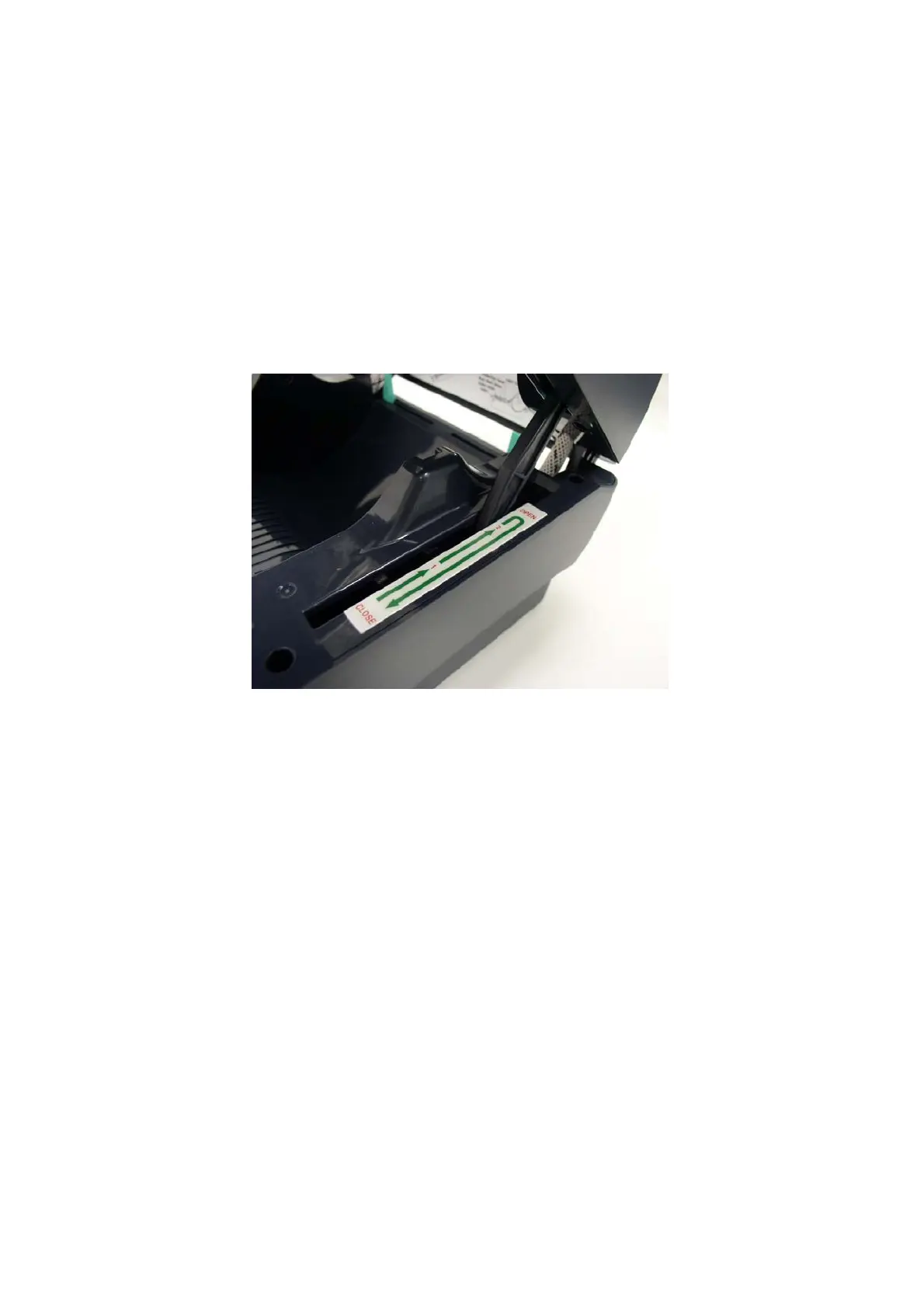

Fig. 1 Top cover support is fixed at position 2
4. To close the cover, lift up the top cover to the ultimate angle then close the top
cover gently and it will be kept at a stop position between 1 and 2 for a while.
Use both hands to gently push down the top cover to close it and make sure the
cover is latched on both sides.
Note: DO NOT place your hands between top cover and lower cover
while close the top cover!

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
