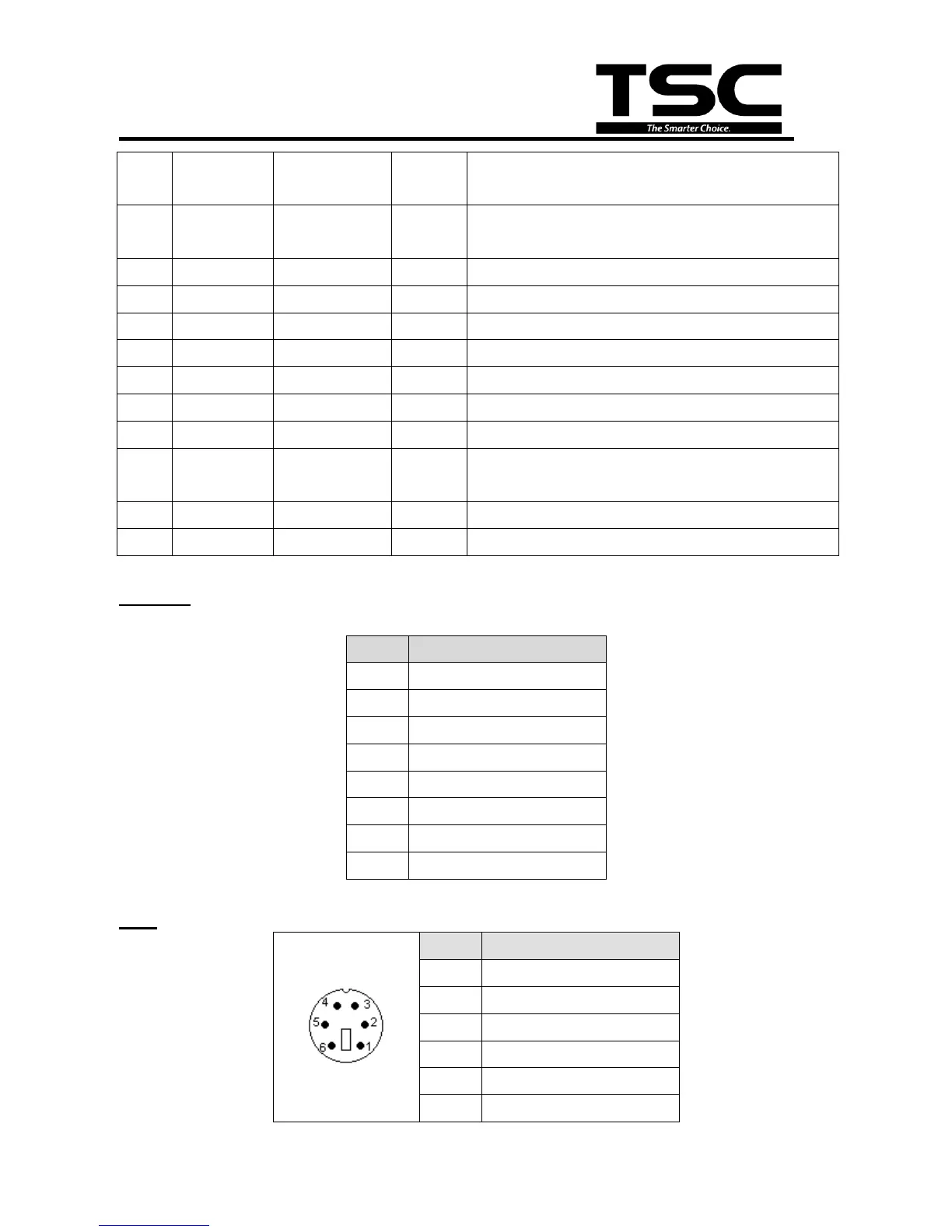

TTP-384M
Bar Code Printer Service Manual
while a low indicates a command cycle. In forward
direction, it functions as PtrBusy.
12
Paper Out /
End
N/A
Out
When low, device acknowledges reverse request.
13
Select
N/A
Out
Extensibility flag
14
Ground
N/A
GND
15
No Defined
N/A
N/A
16-17
Ground
N/A
GND
Ground
18
No Defined
N/A
N/A
19-30
Ground
N/A
GND
Ground
31
No Defined
N/A
N/A
32
Error / Fault
N/A
Out
A low set by the device indicates that the reverse
data is available
33-35
Ground
N/A
GND
Ground
36
No Defined
N/A
N/A
Ethernet
PIN
CONFIGURATION
1
Tx+
2
Tx-
3
Rx+
4
N/C
5
N/C
6
Rx-
7
N/C
8
N/C
PS/2
PIN
CONFIGURATION
1
KBD Clock
2
GND
3
KBD Data
4
N/C
5
+5V(VCC)
6
N/C
