28 Certifier
®
FA Plus Test System
2.3.8 Saving/Loading Configurations

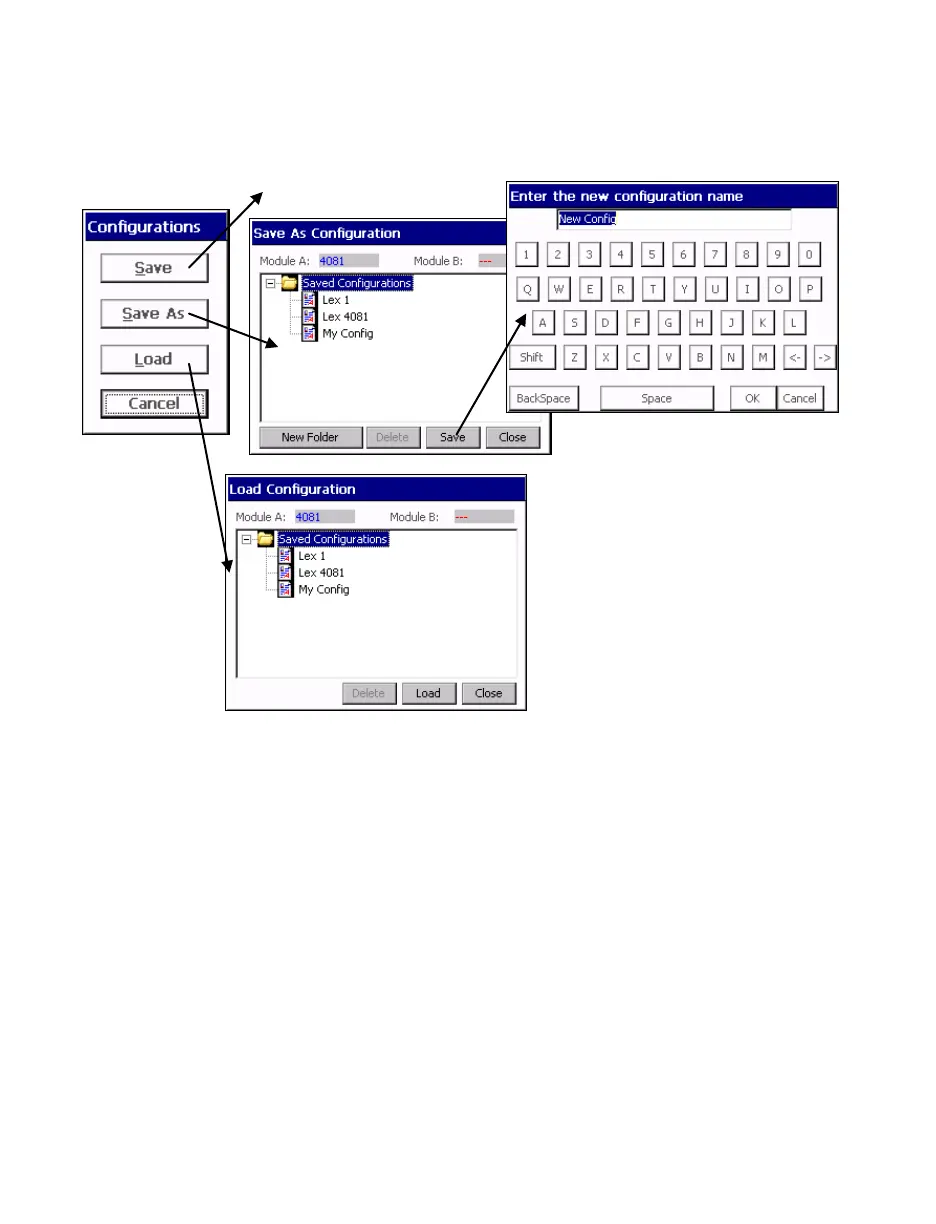

Figure 25. Configuration Save Screen
Configuration of the values displayed, gas, conditions, triggering, and graph setup can
be saved and recalled. This allows the user to save configurations for different
equipment.
See section 2.3.10.1 to learn how to transfer configuration files from one instrument to
another using the SD memory card.
Configuration is saved
under current name and
location
To Next Page
