TSI Instruments PRESSURA RPC30

Appendix C
120
NOTES
A 120Ω resistor should be installed on both ends of the RS-485 loop.
B is positive, A is Negative

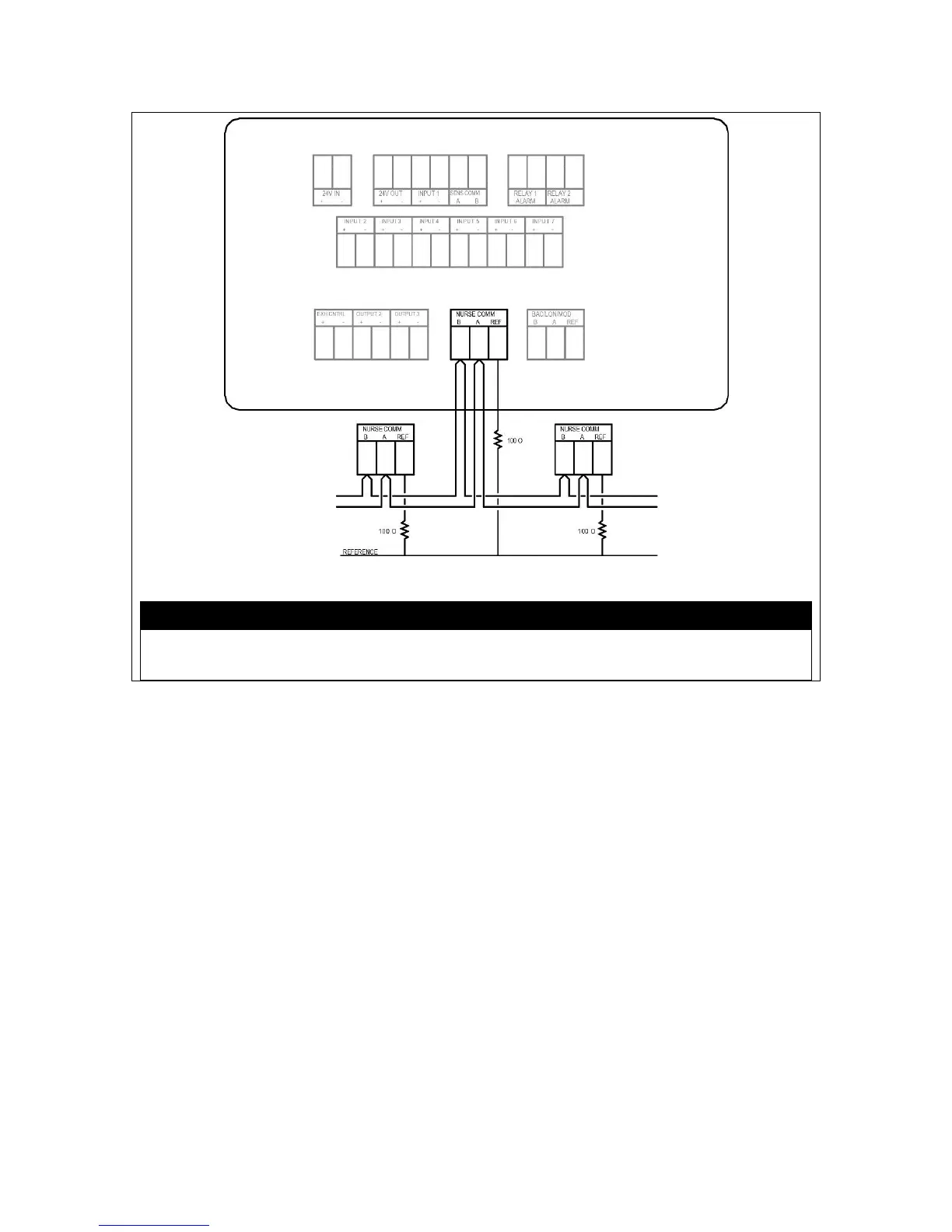

Figure 39. Wiring Diagram – Optional Nurses Station
Communications Wiring to Model RPC30
