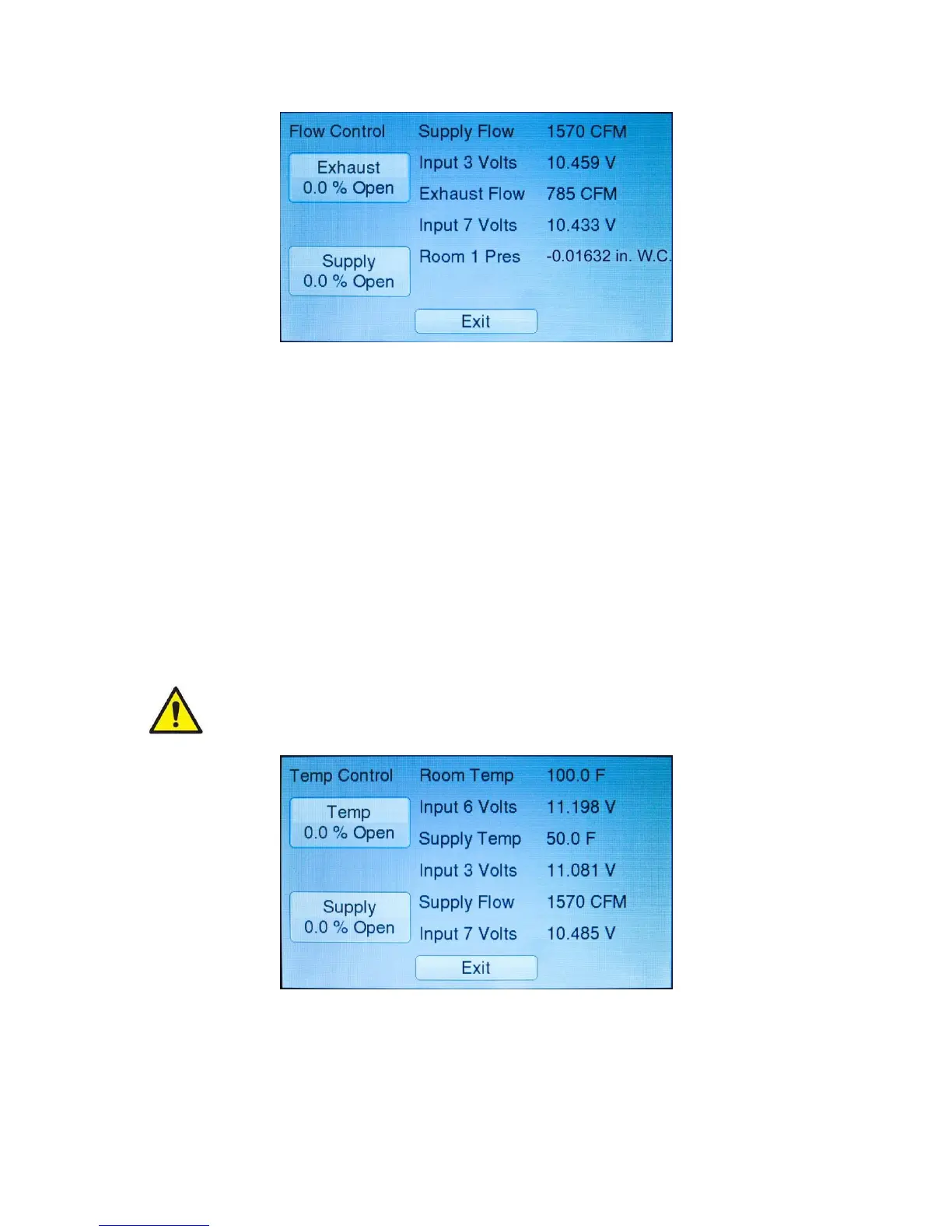

Figure 13. Flow Control screen in Diagnostics menu
 Touch the Exhaust button to manually command the exhaust control device to a new
position.
o If the RPC30 is not configured for Exhaust Control, the Exhaust button will display Bad
Interface. AO1 Signal Type.
 Touch the Supply button to manually command the supply control device to a new position.
o If the RPC30 is not configured for Supply Control, the Supply button will display Bad
Interface. AO2 Signal Type.
 Supply flow, Supply input, Exhaust flow, Exhaust input and Room 1 Pres measurements will
update in real-time.
o The Model RPC30 controller will display “Not configured” for any measurements that
have not been configured. Go to the Configure menu to set up the appropriate input.
Test - Temp Control
Enter the Temp Control item in the Diagnostics menu to manually manipulate the supply and
exhaust flows.
The RPC30 will not maintain room pressure differential, flow rates or temperature
control while in the Temp Control item.
Figure 14. Temp Control screen in Diagnostics menu
 Touch the Temp button to manually command the temperature control device to a new
position.
o If the RPC30 is not configured for Temp Control, the Temp button will display Bad
Interface. AO3 Signal Type.
