17

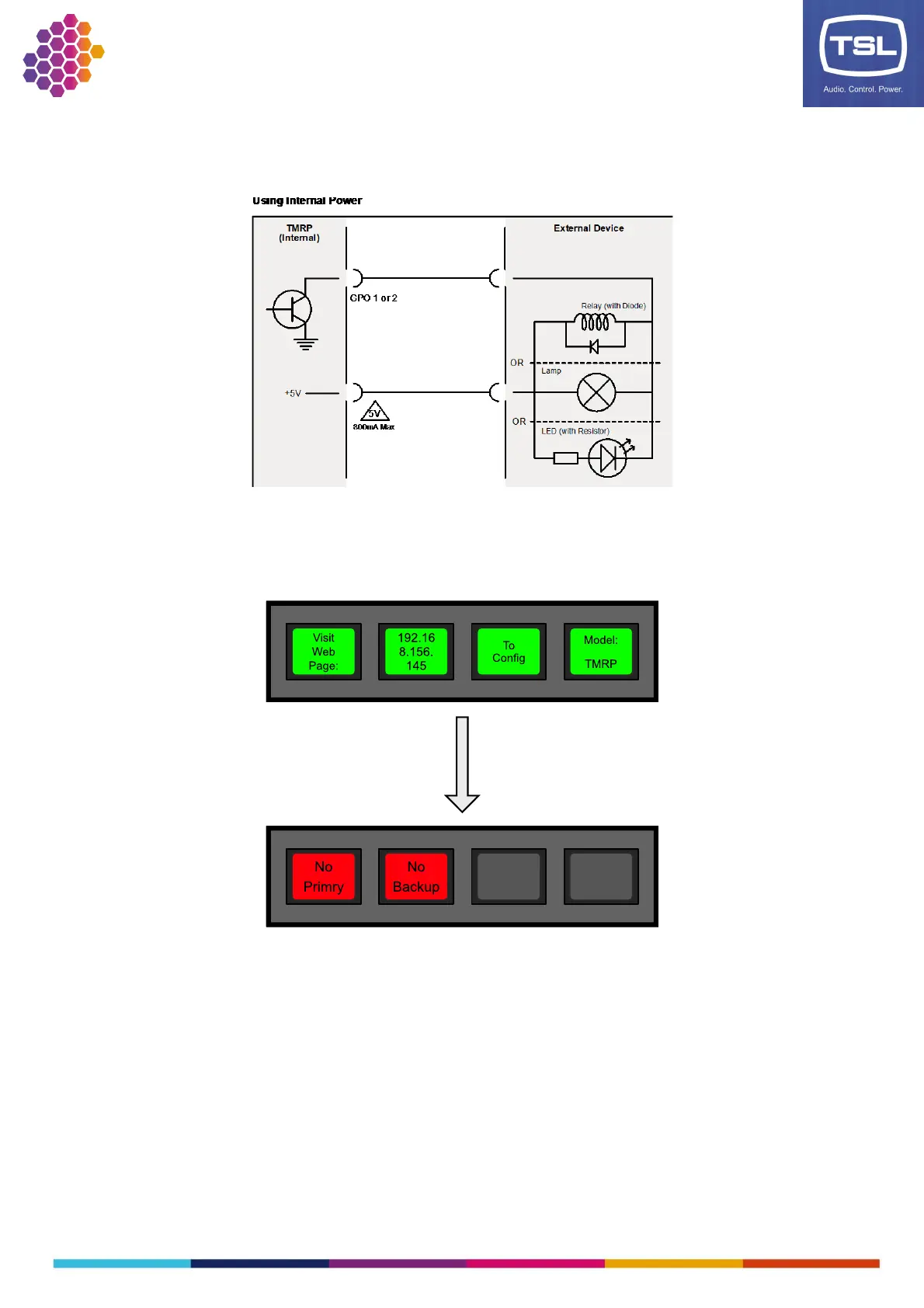

Open Collector Connections and Circuit
Setup
When first powered the TMRP will display its current IP settings and model number for a few seconds
before completing its boot process. Once fully powered the unit will display the status on the TallyMan
redundancy system. In its default state the TMRP is unconfigured, the buttons will show the following:
This display shows the TMRP currently has no connection to either the Primary or the Backup system
controllers. To configure the TMRP as part of the redundant setup it must have an IP address assigned
that is within the same subnet as the Primary and Backup’s NIC 1 port and be included in the system
configuration that is written to the Primary and Backup system controllers.
You set up the TMRP using a web page.
