Operation
This section describes the front panel display for standalone and redundant systems. It also lists each the
options and parameters on the display.
TM1-Mk3+ Front Panel
The front panel display on the TM1-MK3+ units give the status and control over the redundancy system.
The main display changes depending on the current redundancy configuration.

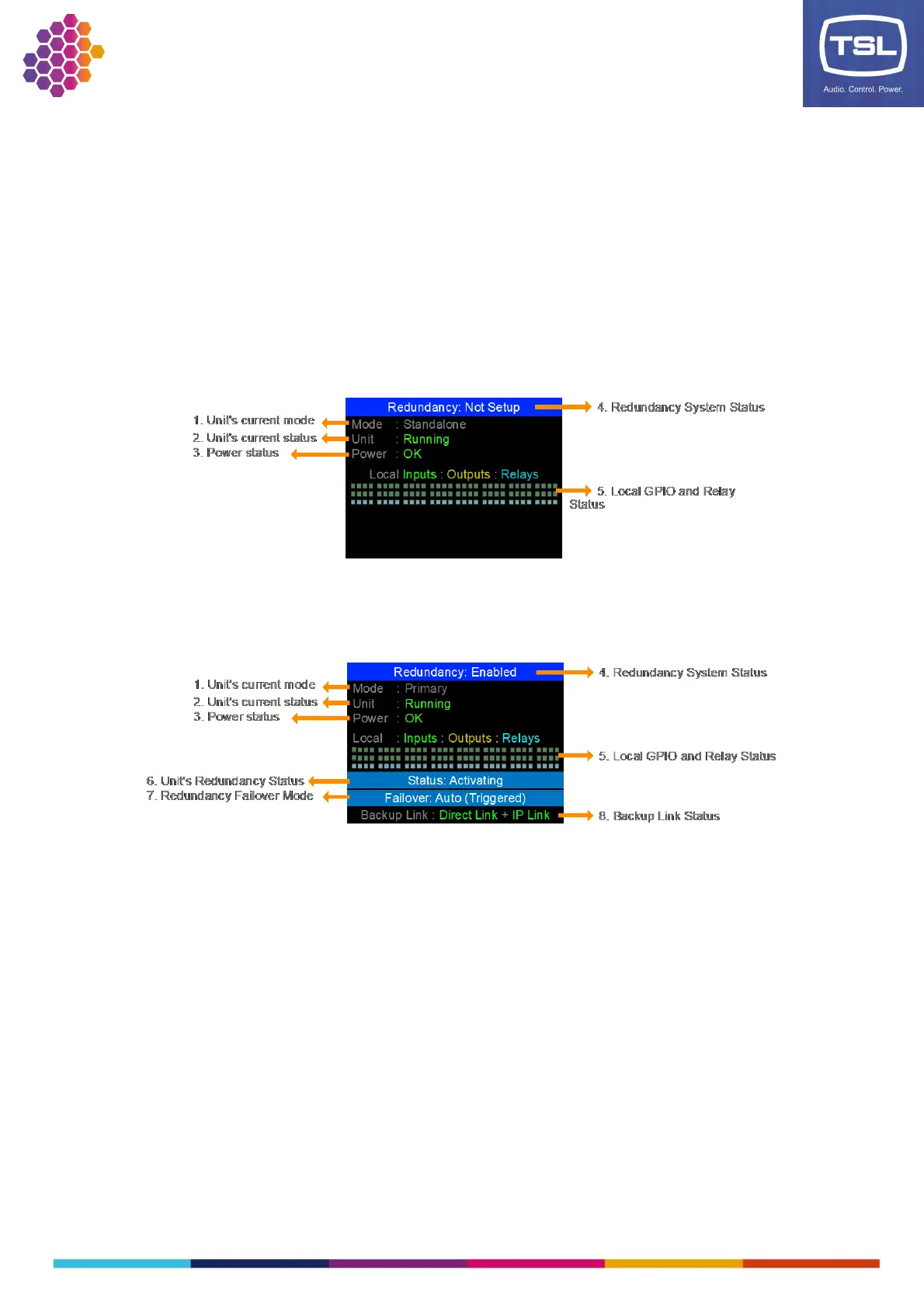

TM1-MK3+ Display – Standalone Mode
A TM1-Mk3+ unit that is not set up for redundancy (default) will display the following elements:
TM1-MK3+ Display – Redundancy Mode
A TM1-Mk3+ unit that is set up for redundancy will display the following elements:
To Next Page
